Angular Rate Sensor for Automated Equipment Monitoring

Name: Angular Rate Sensor for Automated Equipment Monitoring
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-095
Price: 1217 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-095
MOQ:	1
Price:	1217 USD
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

±150°/S

Scale Factor:

≥10mv/°/S

Zero-Bias Stability:

≤2°/H, 10s, 1σ

Zero Bias Repeatability:

≤2°/H, 1σ

Power Supply:

5±0.15V

Power Consumption:

≤0.7W

Packaging Details:

Sponge&Box

Supply Ability:

100 pcs

Highlight:

Rate Simulating Single Axis Positioner

Single Axis Positioner Precise

Precise Vibration Simulation System

Product Description

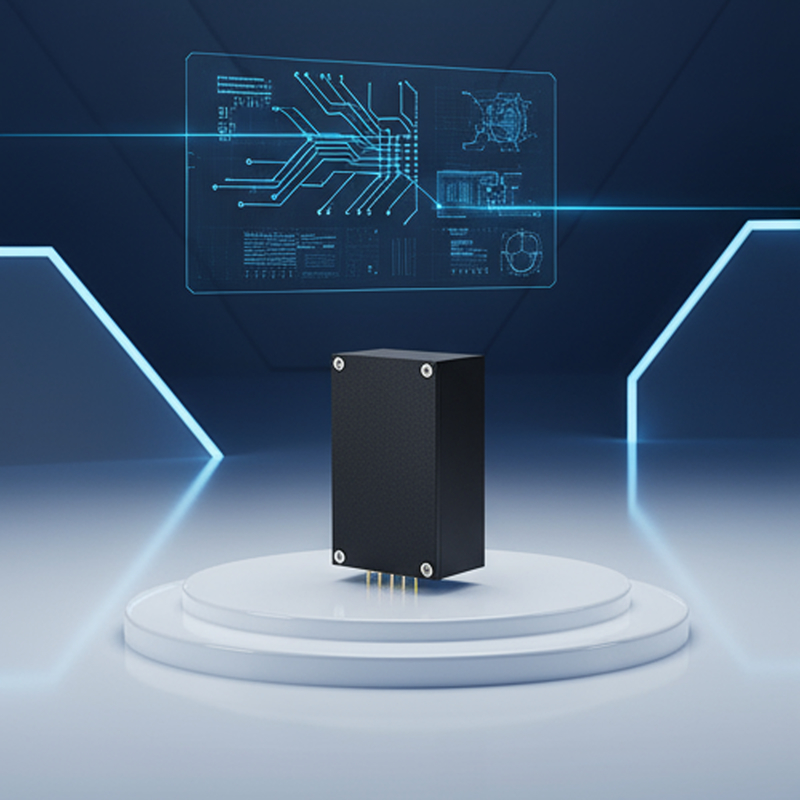

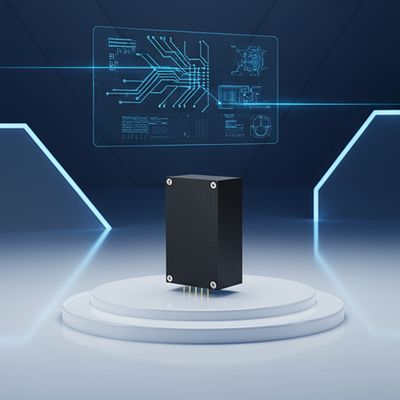

Angular Rate Sensor for Automated Equipment Monitoring

Product Description

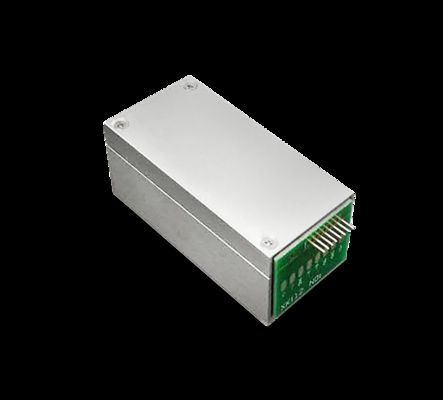

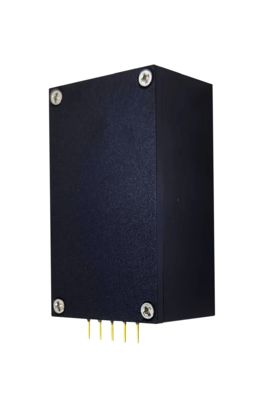

The MFOG-095 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback the phase difference generated by two counter-propagating light beams.

Comprising optical path components, circuit components, and structural components, this product features:

Simple structure with no moving or wear parts
Fast start-up capability
Compact size and lightweight design
Ideal for carrier attitude control and measurement applications

Technical Parameters

Project	Performance indicators
Range (°/s)	±150
Scale factor (mV/°/s)	≥10
Zero-bias stability (10s, 1σ, °/H)	≤2
Zero-bias repeatability (1σ, °/H)	≤2
Zero bias (°/s)	≤0.05
3dB Bandwidth (Hz)	≥1000
Random walk (°/√H)	≤0.02
Start-up Time (s)	≤1
Power supply (V)	5+0.15
Power Consumption (W)	≤0.7

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, established in 2013, is a high-tech enterprise specializing in R&D and production of:

Vibration acceleration sensors
MEMS gyros and IMU/INS systems
Angle testing equipment

With automated production lines in Xi'an, Shenzhen, and Zhuhai, we manufacture MEMS gyros, inertial navigation systems, vibration sensors, and communication products. Our self-developed array algorithm powers inertial navigation products that provide precise position, 3D attitude, and speed data for autonomous navigation applications.

Company Advantage

Our Services

FAQ

Q: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Contact us for specific lead times based on order quantities.

Q: How does your factory do regarding quality control?

A: We maintain strict quality control:

Production according to agreed technical requirements
Full testing per methodology
Professional QA/QC team oversight

Q: Do you accept OEM or ODM orders?

A: Yes, we provide both OEM and ODM services tailored to customer needs.

Q: What are the terms of delivery?

A: We accept EXW, FOB, CIF, and other standard terms.

Q: What is the payment method?

A: TT, L/C, Pay later, West Union, Online Bank Payment.

Q: What is the warranty?

A: Standard 12 months, negotiable for longer periods.

Q: What is the packing quality?

A: Sample orders use carton boxes with sponge; batch orders use wooden boxes.

Q: How to choose product?

A: We offer:

Standard products from our catalog
Customized solutions based on your technical requirements
Application-specific recommendations from our sales team
