Product Name: Multi-function Turntable
Load Capacity: 40kg
Table Size: Φ 420mm
Table Facet Flatness: 0.02 Mm
Runout Of Table End Face: 0.05mm
Magnetic Flux Leakage: Less Than 1mT
Rotation Accuracy: ± 3 ″
Swing Range: 0 ° ~ ± 45 °
High Light:

Rate Simulating Single Axis Positioner

,

Single Axis Positioner Precise

,

Precise Vibration Simulation System

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: TD-450
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T
Supply Ability: 1000/month
Product Description

rate simulating table 1 axis, high precise single axis vibration simulating system





About company

HONG KONG AVIONICS TECHNOLOGY CO., LIMITED focuses on China's aerospace electronics export services, including gyro, accelerometer, satellite navigation, inertia turntable, test equipment for the main business, the company core team who graduated from the domestic well-known university of science and technology, and aerospace technology, aerospace science and industry, China's electricity, China north, ordnance industry, heavy industry, national defense science and technology university of science and technology research institutions such as a strategic partner, To provide users with professional product consulting, customized services, quality control services.



R&D and Innovation

In order to let customers have a better use experience, we have been working hard.



In the process of cooperation with customers, we provide customers with the support they need, for customers in the process of purchase, use may put forward any requirements, questions, provide a full range of solutions, so that customers buy, use more convenient.



Over the years we pay attention to the internal quality of products, through rigorous work, to create a unique performance of the product. To this end, we have established our own RESEARCH and development center, and constantly enrich and expand its strength.



We have a group of professional skills, industry experience of high-quality management and R & D technical personnel.

Company and Harbin industrial university, national university of defense technology, south China university of technology and other advanced education has established the manufacture-learning-research cooperation, undertaken the national key projects and major projects of production, study and study and so on more than 20 projects of science and technology, developed more than 100 high technology products, research and development of the attached transfer machine type inertial navigation system is to obtain X contest.



Development strategy

"One mind, Two merge, Three forces, five modernizations"



"One mind" :

Firm in the original aspiration of "serving the country by aviation", earnestly fulfilling the mission of "making China an aviation power";



"Two merge" :

Implementing a new development model of "military-civilian integration" and "industrial integration";



"Three forces" :

To become a world-class aviation enterprise group with "leading innovation, advanced cultural strength and excellent competitiveness";



"Five Modernizations" :

Adhere to the development path and principle of "intensive operation, accurate management, market-oriented reform, systematic development, international win-win".

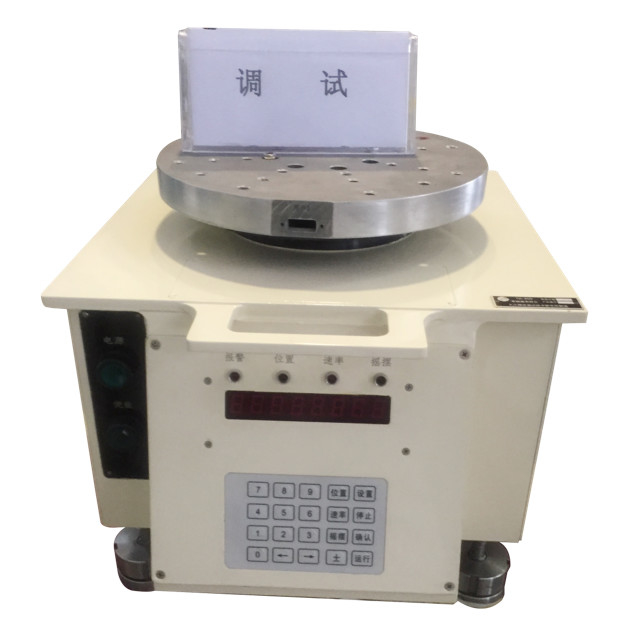

TD-320/450 single-axis multi-function turntable is used for various position, rate and swing tests and detection of rate gyroscope and its inertial measurement unit. The turntable can also be used for the performance test of inertial navigation devices and inertial navigation systems under high and low temperature conditions after the temperature control box, temperature control system and auxiliary shaft are purchased.



Main technical indicators

1. Table top of mechanical table body

① Table top material: stainless steel

② Maximum load weight of table top: 30 Kg

③ Table size: Φ 320mm

④ Flatness of table: 0.02 mm

⑤ Runout of table end face: 0.05mm

⑥ Mounting screw hole on the table: 25 mm (radial shape, 5 holes × 8 lines evenly distributed)

⑦Magnetic flux leakage: less than 1mT

2. Rotation accuracy of shafting: ± 3 ″

3. Angular position range: 0.0000 ° ~ ± 359.9999 °

4. Angular position accuracy: ± 3 ″

5. Angular resolution 0.0001 °

6. Angular rate range 0.001 °/s ~ 1000 °/s

7. Angular rate accuracy and rate stability

① ω < 1 °/s 5 × 10-3(1 ° average)

② 1 °/s < ω < 10 °/s 5 × 10-4(10 ° average)

③ 10 °/s < ω 5 × 10-5(360 ° average)

8. Angular acceleration range: 1 °/s2~ 100 °/s2(initial default: 10 °/s)

9. Maximum angular acceleration 300 °/s2

10. Swing range: 0 ° ~ ± 45 °

11. Swing cycle: 2S ~ 20s

12. Bandwidth of control system: 10Hz (-3dB)

13. Reliability

① Continuous working time: 48h

② Mean time between failures 2000h

14. The slip ring adopts 30 loops, including 2A/20 loops (twisted pair shielded wire) and 3A/10 loops (unshielded wire).

15. Temperature control box system (optional)

① Size of working cavity shall not be less than W500mm × H500mm × D500mm

② Temperature control range: -45 ℃ ~ 85 ℃

③ Temperature control accuracy: ± 1 ℃

④ Heating and cooling rate: ± 2 ℃/min (average in the whole process)

16. The turntable computer has the ability to store the data related to the operation of the turntable, such as time, turntable position and angular rate, and has the ability to output data in real time through the serial port. The output frequency is ≥ 5Hz. Capable of controlling the operation of the turntable and the temperature through an external computer (through a serial port). Communication protocol: RS232 9.6Kbs. The rear panel of the electric control box is provided with a standard RS232 serial interface.
