Fiber Optic Gyro

Micro Nano Fiber Optic Gyroscope Industrial Grade FOG Analog Output

Name: Micro Nano Fiber Optic Gyroscope Industrial Grade FOG Analog Output
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: FCG24D
Price: 1600 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	FCG24D
MOQ:	1
Price:	1600 USD
Payment Terms:	T/T
Supply Ability:	100/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Output Mode:

Analog

Connector:

Welding Plate

Measure Axis:

Consumption:

≤0.7w

Power Supply:

5(±0.15)V

Random Walk:

≤0.1°/√h(1σ)

Packaging Details:

Sponge+ box

Supply Ability:

100/MONTH

Highlight:

Welding Plate Fiber Optic Gyroscope

Micro Nano Fiber Optic Gyroscope

High Accuracy Fiber Optic Gyro

Product Description

Micro-Nano Fiber Optic Gyroscope High Accuracy Low Cost FOG

1 Scope

This document specifies the requirements and methods for the use and maintenance of FCG-24 micro-nano fiber optic gyroscope (product for short).

2 References and Standards

GJB1649-1993 ESD Control Program for Electronic Products

3 Definitions

None.

4 Product introduction

4.1 Product Overview

FCG-24 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics with analog output, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.

This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.

4.2 Composition

The product is mainly composed of the following components:

A) an optical path assembly;

B) Detection and control signal circuit board;

C) Optical fiber ring skeleton, shell and other structural parts;

4.3 Appearance and dimension

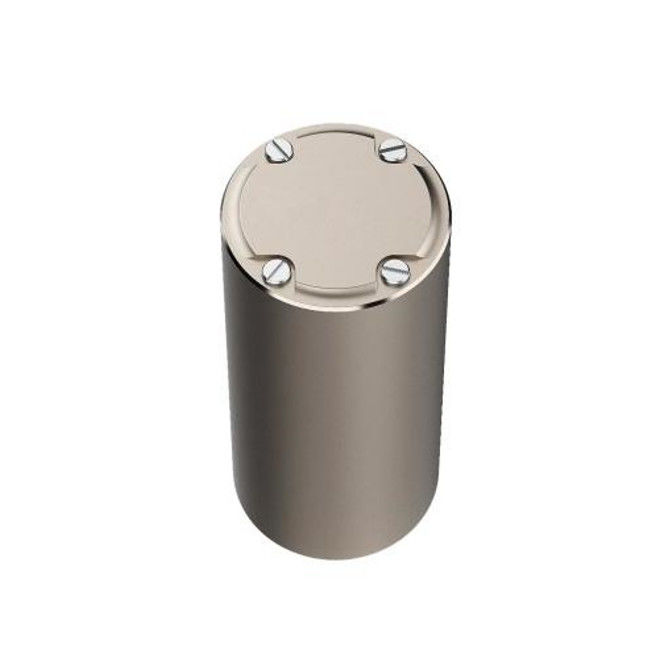

The product is cylindrical, with overall dimensions of φ24 mm × 40mm

Fig. 1 Outline drawing of MFOG-24 micro-nano fiber optic gyroscope

4.4 Weight

≤40g.

4.5 Operating temperature

-40℃~+65℃.

4.6 Storage temperature

-55℃~+85℃.

4.7 Random vibration

Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.

Table 1 Main Performance Parameters

Items	MFOG24D	Unit
Output Mode	Analog
Connector	Welding plate
Axis	1
Consumption	≤0.7	w
Power Supply	5(±0.15)	V
Random walk	≤0.1	°/√h(1σ)
Range	≥500	°/s
Bias (10s,1σ)	≤2	°/h
Bias (Allan)	≤0.2	°/h
Bias repeatability(Allan)	≤0.2	°/h
Scale factor	4	mv/° /s
Scale factor Non-linearity	≤1000	PPM(1σ)
Start up time	≤1	s
Bandwidth	450	Hz
Working Temp.	-45~+70	℃
Store Temp.	-55~+85	℃
Vibration	20~2000,0.04	Hz,g²/Hz
Dimensions	Φ24*40	mm
Weight	≤30	g
