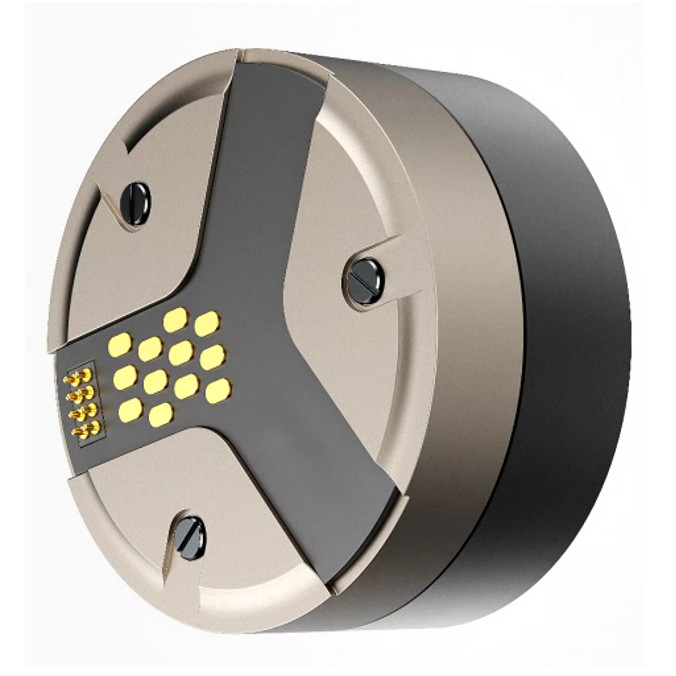

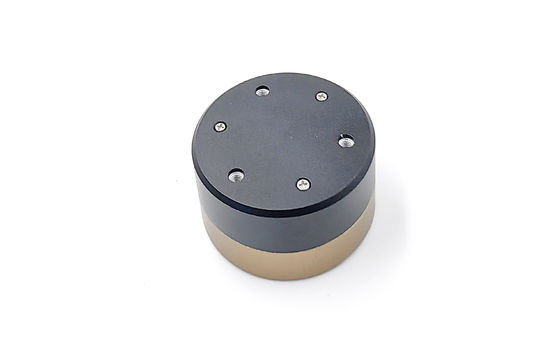

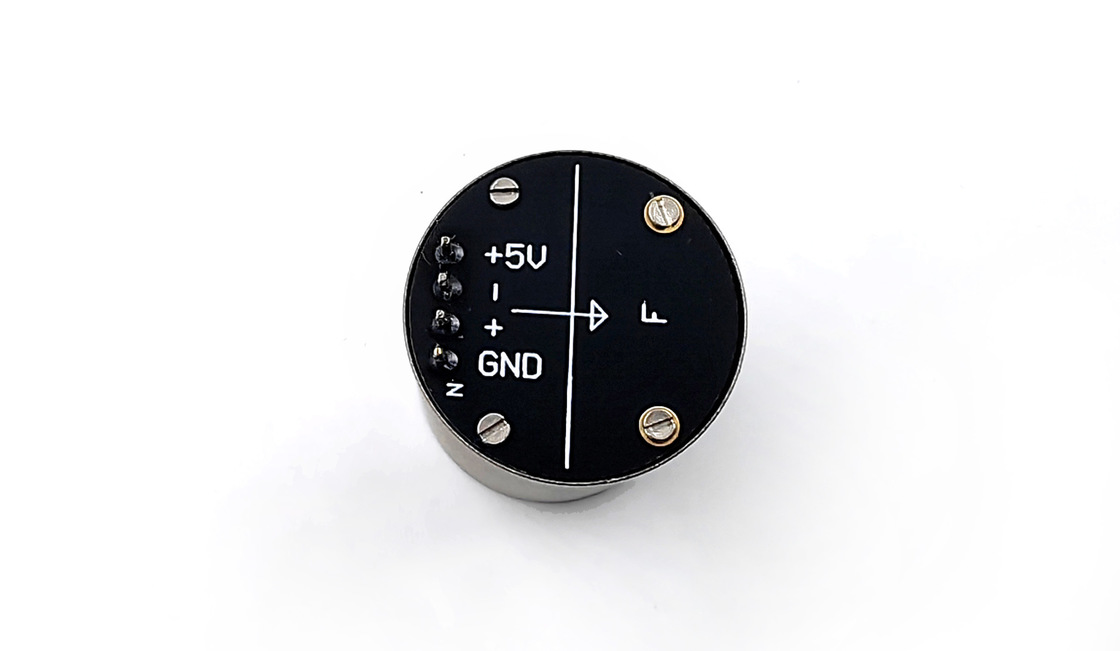

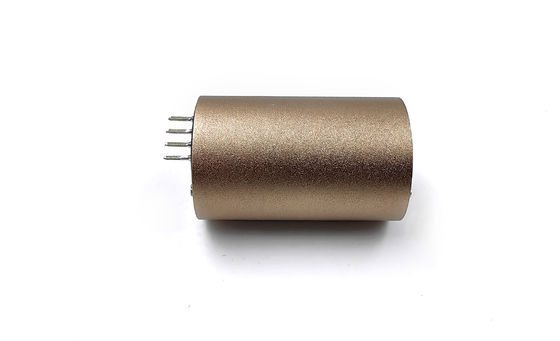

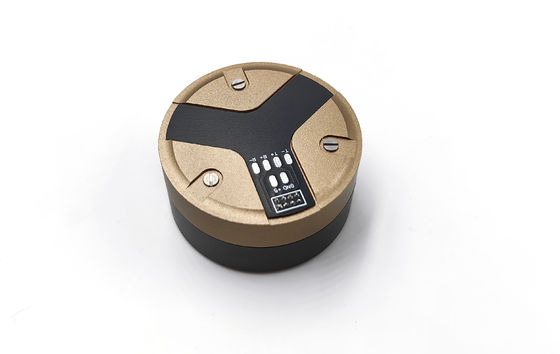

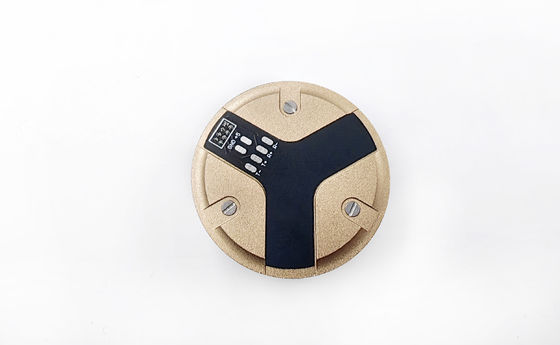

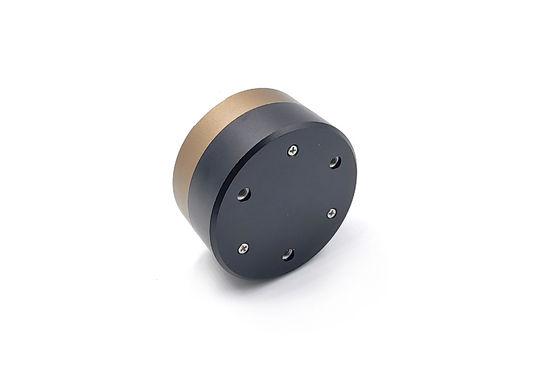

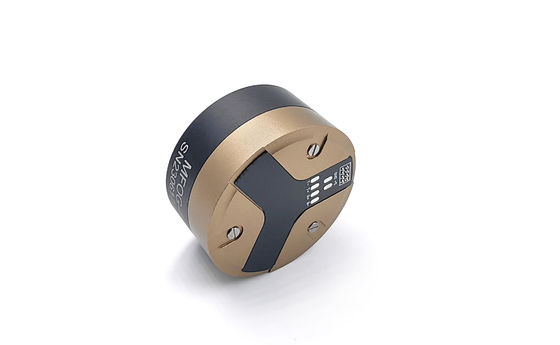

Optic Gyroscope Single Axis Fiber Angular Rate Sensor Sagnac Gyro Sensor
Performance Parameters
| Serial number | Project | Performance indicators |
| 1 | Range (°/s) | ±500 |
| 2 | Scale Factor (LSB/o/s) | 3600 |
| 3 | Scale factor nonlinearity (ppm) | ≤300 |
| 4 | Zero-bias stability (10s, 1σ, °/H) | ≤2 |
| 5 | Zero-bias repeatability (1σ, °/H) | ≤2 |
| 6 | Angular random walk (°/H1/2 | ≤0.05 |
| 7 | Zero-bias stability at full temperature (10s, 1σ, -40 ℃ ~ + 65 ℃, °/H) | ≤5 |
| 8 | 3dB Bandwidth (Hz) | ≥400 |
| 9 | Power supply (V) | 5+0.15 |
| 10 | Power Consumption (W) | ≤1.5 |
| 11 | Dimension (mm) | φ40X20.5 |
FOG-40 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.
This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.
Installation of the product
The user shall be responsible for the installation and disassembly of the product. During this process, the product shall not be impacted, and the outer surface of the product shall not be machined.
nspection before installation
Check the appearance of the product for physical damage such as collision;
Inspection after installation
Check whether each mounting screw is secure.
