Micro Nano Fiber Optic Gyroscope , Angular Rate Sensor With Digital Output

Micro Nano Fiber Optic Gyroscope , Angular Rate Sensor With Digital Output

Brand Name: Firepower
Model Number: FCG24
MOQ: 1
Price: 1600 USD
Payment Terms: T/T
Supply Ability: 100/MONTH
Detail Information
Place of Origin:
CHINA
Certification:
CE
Output Mode:
RS422
Range:
≥500°/s
Bias (Allan):
≤0.2°/h
Consumption:
≤0.7w
Power Supply:
5(±0.15)V
Random Walk:
≤0.04°/√h(1σ)
Scale Factor:
4 Mv/° /s
Packaging Details:
Sponge+ box
Supply Ability:
100/MONTH
Highlight:

RS422 Output Fiber Optic Gyroscope

,

Integrating Optics Angular Rate Sensor

,

Micro Nano Fiber Angular Rate Sensor

Product Description

Micro-Nano Fiber Optic Gyroscope Angular Rate Sensor Integrating Optics With Digital Output


1 Scope
This document specifies the requirements and methods for the use and maintenance of MFOG-24 micro-nano fiber optic gyroscope (product for short).
2 References and Standards
GJB1649-1993 ESD Control Program for Electronic Products
3 Definitions
None.
4 Product introduction
4.1 Product Overview
MFOG-24 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics with digital output, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.
This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.
4.2 Composition
The product is mainly composed of the following components:
A) an optical path assembly;
B) Detection and control signal circuit board;
C) Optical fiber ring skeleton, shell and other structural parts;

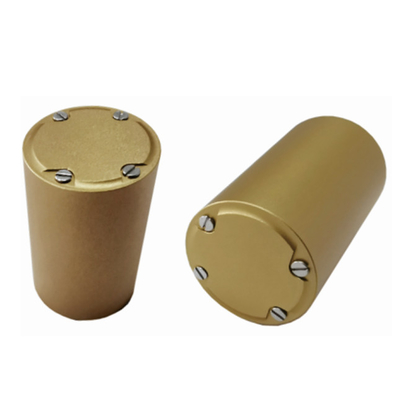

4.3 Appearance and dimension
The product is cylindrical, with overall dimensions of φ24 mm × 40mm

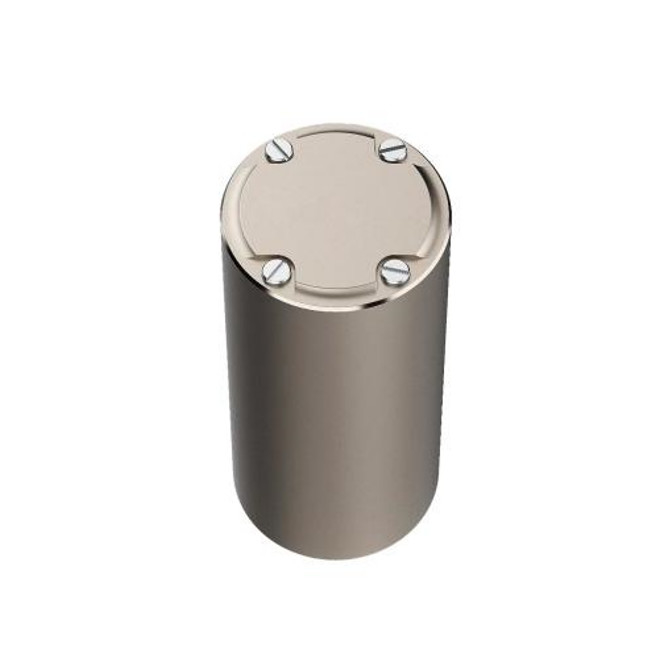

Micro Nano Fiber Optic Gyroscope , Angular Rate Sensor With Digital Output 0

Table 1 Main Performance Parameters


Items MFOG24 Unit
Output Signal RS422
Connector Welding plate
Axis 1
Consumption ≤1.5 w
Power Supply 5(±0.15) V
Random walk ≤0.04 °/√h(1σ)
Range ≥500 °/s
Bias (10s,1σ) ≤1.5

°/h


Bias (Allan) ≤0.4 °/h
Bias repeatability(Allan) ≤0.4 °/h
Scale Factor

3600


(LSB/o /s)
Scale factor Non-linearity ≤300 PPM(1σ)
Start up time ≤1 s
Bandwidth 300 Hz
Working Temp. -45~+70
Store Temp. -55~+85
Vibration 20~2000,0.04 Hz,g²/Hz
Dimensions Φ24*40 mm
Weight ≤30 g
