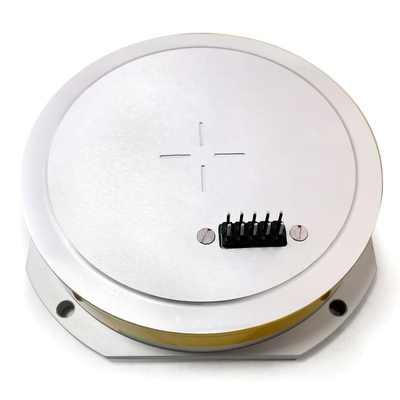

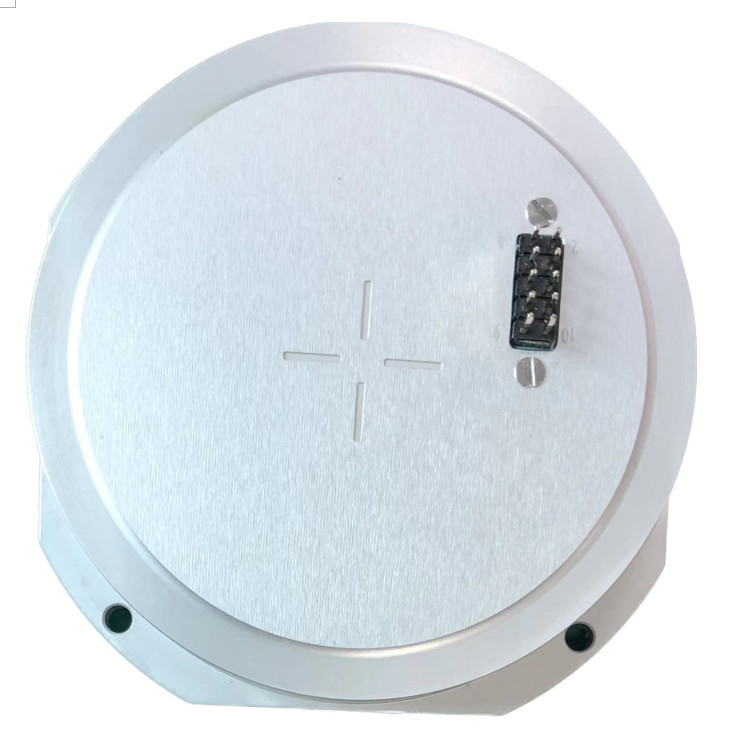

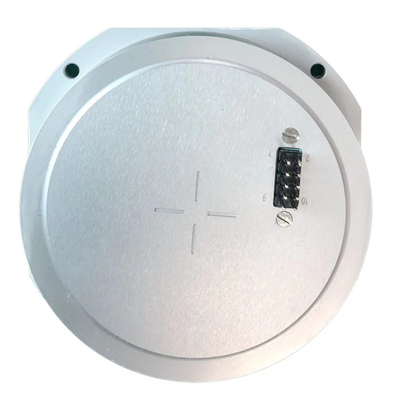

Fiber Optic Gyro , Substitute Gyro Sensor Vg910 Angular Rate Sensor

Name: Fiber Optic Gyro , Substitute Gyro Sensor Vg910 Angular Rate Sensor
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG910
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG910
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	100/month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Product Name:

Single Axis Gyro

Measuring Range:

-250~+250º/s

Overall Dimensions:

82×82×20mm

Scale Factor:

7±0.5mvdeg/s

Supply Voltage:

Random Vibration:

6.06g，20~2000Hz

Packaging Details:

sponge+box

Supply Ability:

100/month

Highlight:

Single Axis Angular Rate Sensor

Fiber Gyro Angular Rate Sensor

2000Hz Fiber Optic Gyro

Product Description

Low Price Fiber Gyro Fiber Gyro Angular Rate Sensor Substitute Gyro Sensor of Vg910

Composition

The main components of the product are as follows:

4) An optical path comprise an SLD light source, an optical fiber re, an integrated optical phase modulator, an optical fiber coupler and a photodetector;

5) The circuit comprises a light source driving circuit and a detection and control signal circuit board;

3) Gyroscope structural parts.

3.3 Outline and installation dimensions

Overall dimension (mm): 82 × 82 × 20 (L × W × H);

Installation dimension (mm): (60.8 ± 0.1) × (60.8 ± 0.1) (L × W), Φ3.6mm × 4, As shown.

Fiber Optic Gyro , Substitute Gyro Sensor Vg910 Angular Rate Sensor 0

3.5 Main performance parameters
See the main performance parameters of the product for details.

Serial number	Test item	Unit	Technical requirements
1	Overall dimensions	mm	82×82×20
2	Scale factor	mv/°/s	7±0.5
3	Operating temperature	℃	-40~+60
4	Measuring range	°/s	-250~+250
5	Output polarity	——	Clockwise rotation outputs positive voltage
6	Supply voltage	v	+5
7	Random vibration	——	6.06g,20~2000Hz
