5s Start High Precision Single Axis Gyro For Angular Speed Measurement

1
MOQ
7350 USD
Price
5s Start High Precision Single Axis Gyro For Angular Speed Measurement
Features Gallery Product Description Request A Quote
Features
Specifications
Storage Temperature Of (℃): -45~+80
Operate Temperature ℃: -40~+70
Scale Factor Repeatability (ppm): ≤10
Random Walk Coefficient(º)/h1/2: ≤0.005
Bias Drift (°) / H (10s Smooth) -45~ + 70: ≤0.1
Dynamic Range (°) / S: ±500
Bias Repeatability (°) / H: ≤0.03
Supply Voltage (V): ±5
High Light:

Angular Speed Measurement Single Axis Gyro

,

5s Start Single Axis Gyro

,

Fiber Optic Gyro 5V

Basic Infomation
Place of Origin: China
Brand Name: avic
Certification: CE
Model Number: F70-98
Payment & Shipping Terms
Packaging Details: 1KG
Delivery Time: 1 weeks for sample
Payment Terms: 100% in advance
Supply Ability: 100 pcs/month
Product Description

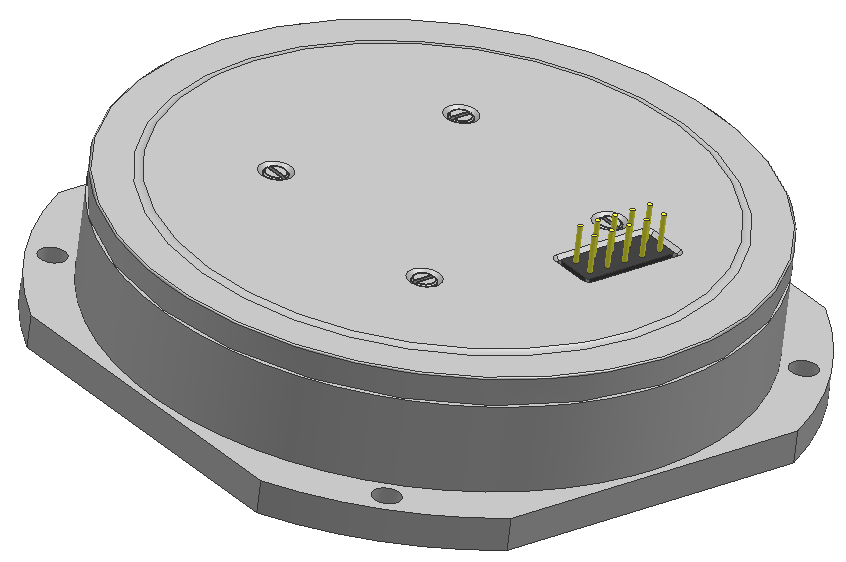

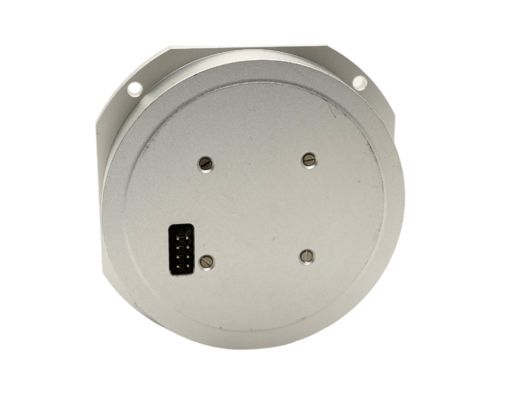

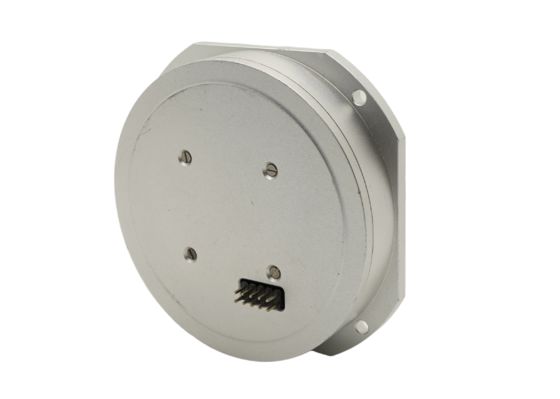

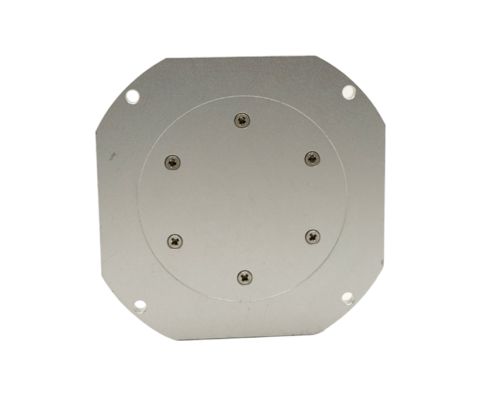

High Precision 5s Start Single Axis Gyro For Angular Speed Measurement

Product Description:

This product is designed to measure the rotational angular velocity of the carrier along the provided sensitive axis by using the optical Sagnac effect. It utilizes a digital closed-loop detection circuit to extract the optical path difference of clockwise light generated due to the external physical angular speed. The voltage signal of the optical path signal is modulated and demodulated to realize the closed loop feedback and control. Ultimately, it achieves the purpose of real-time angular velocity signal detection.



Features:

  • Product Name: Fiber Optic Gyro
  • Single axis gyroscope
  • Bias drift (°) / h (10s smooth) -45~ + 70: ≤0.1
  • Supply voltage (V): ±5
  • Scale factor repeatability (ppm): ≤10
  • Random walk coefficient(º)/h1/2: ≤0.005
  • Bias repeatability (°) / h: ≤0.03


Applications:

Our excellent products are ideal for a variety of applications, such as photoelectric cranes, cranes, flying platforms, inertial navigations, inertial measurement systems, optical instruments, photographic instruments, platform stabilization devices, and inertial measurement instruments.

These products provide powerful performance and outstanding quality that make them ideal for any modern industry or organization.

In addition, our products are easy to install and maintain, offering impeccable long-term reliability.



Technical Parameters:

Parameter Value
Supply voltage (V) ±5
Weight (g) <290
Bias drift (°) / h (10s smooth, fix temperature) ≤0.02
Scale factor repeatability (ppm) ≤10

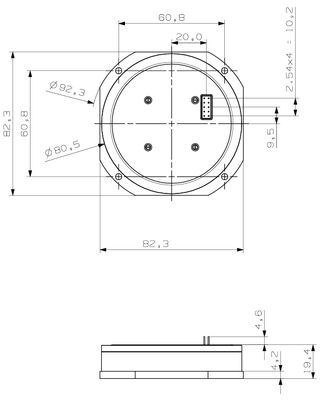

Dimensions (mm) 70×70×32
Bias drift (°) / h (10s smooth) -45~ + 70 ≤0.1
Scale factor non-linearity (ppm) ≤10
Application Angular Speed Measure
Dynamic range (°) / s ±500
Random walk coefficient(º)/h1/2 ≤0.005


Support and Services:

Fiber Optic Gyro Technical Support and Services

At XYZ, we are committed to providing the best customer service and technical support for our Fiber Optic Gyro products. Our knowledgeable staff is available to help with any questions you may have about installation, operation, maintenance, and repair. We offer a full range of services, including:

  • Free technical support over the phone and/or email
  • On-site installation, commissioning, and training services
  • Timely response to service requests
  • 24/7 emergency support and repair services
  • On-site and off-site maintenance contracts
  • Spare parts and accessories availability

We strive to provide the highest level of customer service and technical support for our Fiber Optic Gyro products. If you have any questions or need assistance, please don't hesitate to contact us.



Packing and Shipping:

Packaging and Shipping of Fiber Optic Gyro

The Fiber Optic Gyro is safely packaged in a tamper-proof box/container to protect it from any external damages, and to ensure the product is in perfect condition upon arrival. The box will include detailed instructions and product specifications for the user.

For overseas shipments, the Fiber Optic Gyro will be securely packed in a reinforced container, and labels indicating the contents and destination will be clearly noted. The container will also be sealed and inspected prior to shipment to ensure the item is in perfect condition.

The Fiber Optic Gyro will be shipped using a reliable carrier, such as DHL, FedEx, or UPS, and will be insured for the full value of the item. Tracking information will be provided to the customer so they can monitor the progress of their shipment.



FAQ:

Q1:What is the brand name of the Fiber Optic Gyro? A1:The brand name of the Fiber Optic Gyro is avic.
Q2:What is the model number of the Fiber Optic Gyro? A2:The model number of the Fiber Optic Gyro is F70-98.
Q3:Where is the Fiber Optic Gyro from? A3:The Fiber Optic Gyro is from China.
Q4:What is the minimum order quantity of the Fiber Optic Gyro? A4:The minimum order quantity of the Fiber Optic Gyro is 1.
Q5:What is the price of the Fiber Optic Gyro? A5:The price of the Fiber Optic Gyro is 7350 USD.
