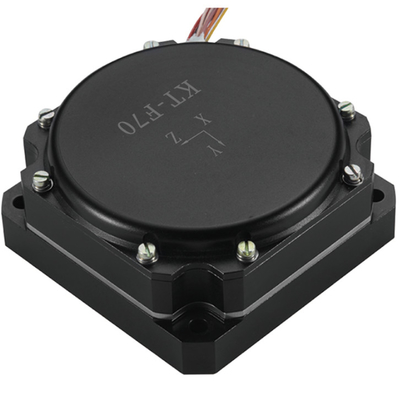

500degree/S Dynamic Range FOG Fiber Optic Gyro With 5s Start Time High Precision

1
MOQ
7350 USD
Price
500degree/S Dynamic Range FOG Fiber Optic Gyro With 5s Start Time High Precision
Features Gallery Product Description Request A Quote
Features
Specifications
Bias Drift (°) / H (10s Smooth, Fix Temperature): ≤0.02
Start Time (s): 5
Bias Repeatability (°) / H: ≤0.03
Scale Factor Non-linearity (ppm): ≤10
Dynamic Range (°) / S: ±500
Operate Temperature ℃: -40~+70
Storage Temperature Of (℃): -45~+80
Random Walk Coefficient(º)/h1/2: ≤0.005
High Light:

4w FOG Fiber Optic Gyro

,

High Precision FOG Fiber Optic Gyro

,

5s Start Time Fiber Optic Gyro

Basic Infomation
Place of Origin: China
Brand Name: avic
Certification: CE
Model Number: F70-98
Payment & Shipping Terms
Packaging Details: 1KG
Delivery Time: 1 weeks for sample
Payment Terms: 100% in advance
Supply Ability: 100 pcs/month
Product Description

High Precision 500°/S Dynamic Range FOG Fiber Optic Gyro With 5s Start Time

500degree/S Dynamic Range FOG Fiber Optic Gyro With 5s Start Time High Precision 0

Product Description:

This product is an inertial angle rate sensor that is based on the optical Sagnac effect. It provides accurate measure of the rotational angular velocity of the carrier along the sensitive axis.

The digital closed-loop detection circuit extracts the clockwise light optical path difference caused by the external physical angular speed, and the voltage signal of the optical path signal is modulated and demodulated. This process enables the closed loop feedback and control to realize the purpose of obtaining real-time angular velocity signal detection.



Features:

  • Product Name: Fiber Optic Gyro
  • Operate temperature ℃: -40~+70
  • Application: Angular Speed Measure
  • Single Axis Gyro
  • Optical Gyroscope
  • Bias repeatability (°) / h: ≤0.03
  • Bias drift (°) / h (10s smooth) -45~ + 70: ≤0.1
  • Weight (g): <290


Applications:

Our Products

Our products are ideal for a variety of uses, such as permitting photoelectric crane and crane work, enabling the use of flying platforms, powering inertial navigation and inertial measurement systems, and facilitating the use of optical and photographic instruments, platform stabilization devices, and inertial measurement instruments.

Our technologies are reliable and efficient, making them an invaluable asset in multiple industries. We guarantee customer satisfaction with each of our products.



Technical Parameters:

Parameters Value
Scale factor repeatability (ppm) ≤10
Bias drift (°) / h (10s smooth) -45~ + 70 ≤0.1
Weight (g) <290
Dimensions (mm) 70×70×32
Scale factor non-linearity (ppm) ≤10
Operate temperature ℃ -40~+70
Dynamic range (°) / s ±500
Random walk coefficient(º)/h1/2 ≤0.005
Steady-state power consumption (full temperature) (W) <4
Bias drift (°) / h (10s smooth, fix temperature) ≤0.02


Support and Services:

Fiber Optic Gyro Technical Support and Services
  • On-site maintenance and repair
  • Telephone technical support
  • Online technical support
  • Software updates
  • 24-hour emergency medical services


Packing and Shipping:

Packaging and Shipping Requirements for Fiber Optic Gyro

Fiber optic gyro products must be packaged and shipped according to the following guidelines to ensure the product is protected and arrives in good condition.

Packaging
  • Fiber optic gyro products must be packaged in protective boxes.
  • The boxes must be filled with cushioning material to secure the product inside.
  • Each box must be clearly labeled with the product name, serial number, and shipping destination.
Shipping
  • Fiber optic gyro products must be shipped with a reliable carrier.
  • All shipments should be sent with signature required for delivery.
  • Shipments must include a packing list of the products included in the box.


FAQ:

Question & Answer

Q1: What is the brand name and model number of the Fiber Optic Gyro?
A1: The brand name is avic and the model number is F70-98.

Q2: Where is the Fiber Optic Gyro manufactured?
A2: The Fiber Optic Gyro is manufactured in China.

Q3: Does the Fiber Optic Gyro have CE certification?
A3: Yes, the Fiber Optic Gyro has CE certification.

Q4: What is the minimum order quantity for the Fiber Optic Gyro?
A4: The minimum order quantity is 1.

Q5: How much does the Fiber Optic Gyro cost?
A5: The Fiber Optic Gyro costs 7350 USD.
