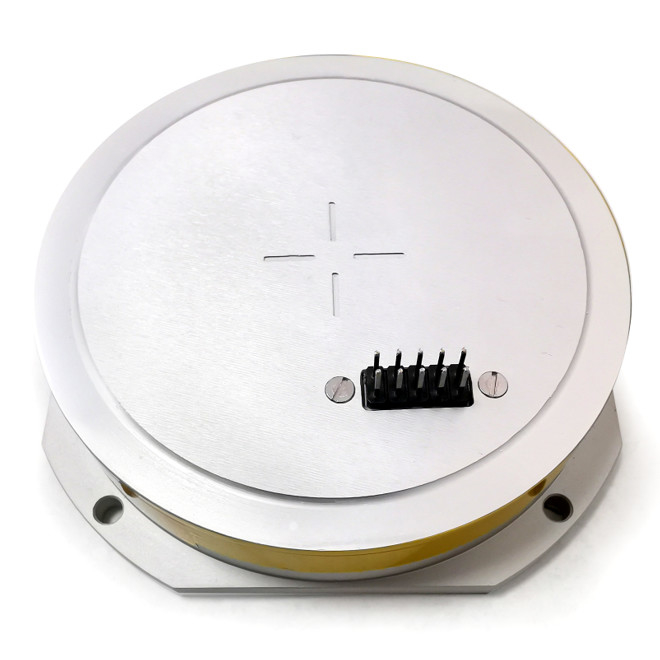

290g High Precision Fiber Optic Gyro with 10ppm Scale Factor Repeatability

1
MOQ
7350 USD
Price
290g High Precision Fiber Optic Gyro with 10ppm Scale Factor Repeatability
Features Gallery Product Description Request A Quote
Features
Specifications
Bias Repeatability (°) / H: ≤0.03
Bias Drift (°) / H (10s Smooth) -45~ + 70: ≤0.1
Steady-state Power Consumption (full Temperature) (W): <4
Start Time (s): 5
Dimensions (mm): 70×70×32
Supply Voltage (V): ±5
Dynamic Range (°) / S: ±500
Scale Factor Non-linearity (ppm): ≤10
High Light:

290g Fiber Optic Gyro

,

Inertial Angle Rate Fiber Optic Gyro

,

0.03degree/h Fiber Optical Gyroscope

Basic Infomation
Place of Origin: China
Brand Name: avic
Certification: CE
Model Number: F70-98
Payment & Shipping Terms
Packaging Details: 1KG
Delivery Time: 1 weeks for sample
Payment Terms: 100% in advance
Supply Ability: 100 pcs/month
Product Description

Product Description:

This product is an inertial angle rate sensor, which uses optical Sagnac effect to measure the rotational angular velocity of the carrier along the sensitive axis. To extract the clockwise light's optical path difference caused by external physical angular speed, a digital closed-loop detection circuit is implemented. Voltage signal of the optical path is modulated and demodulated, while closed loop feedback and control are used to realize real-time angular velocity signal detection and achieve the purpose.

290g High Precision Fiber Optic Gyro with 10ppm Scale Factor Repeatability 0

Features:

  • Product Name: Fiber Optic Gyro
  • Single Axis Gyro: Yes
  • Optical Gyroscope: Yes
  • Optical Gyroscope Module: Yes
  • Dynamic range (°) / s: ±500
  • Operate temperature ℃: -40~+70
  • Supply voltage (V): ±5
  • Scale factor non-linearity (ppm): ≤10
  • Random walk coefficient(º)/h1/2: ≤0.005


Applications:

Applications

Our products are mainly designed for a number of applications, including the use of:

  • Photoelectric Cranes
  • Cranes
  • Flying platforms
  • Inertial Navigation Systems
  • Inertial Measurement Systems
  • Optical/Photographic Instruments
  • Platform Stabilization Devices
  • Inertial Measurement Instruments


Technical Parameters:

Parameter Specification
Application Angular Speed Measure
Scale factor repeatability (ppm) ≤10
Bias repeatability (°) / h ≤0.03
Dynamic range (°) / s ±500
Steady-state power consumption (full temperature) (W) <4
Bias drift (°) / h (10s smooth) -45~ + 70 ≤0.1
Supply voltage (V) ±5
Storage temperature of (℃) -45~+80
Random walk coefficient(º)/h1/2 ≤0.005
Scale factor non-linearity (ppm) ≤10


Support and Services:

Fiber Optic Gyro Technical Support and Service

At [Company Name], we provide our customers with the highest level of technical support and service for our Fiber Optic Gyro (FOG) products. Our technical support team is available 24/7 to assist with any questions or concerns that may arise. We are dedicated to providing our customers with the customized support they need to ensure the successful operation of their FOG products.

Our technical support and services include:

  • Diagnostic and troubleshooting assistance
  • Software updates and upgrades
  • Product installation and configuration
  • On-site maintenance and repair
  • Remote monitoring
  • Product training

At [Company Name], we strive to provide our customers with the best service and support experience possible. If you have any questions or concerns about our FOG products, please contact us today!



Packing and Shipping:

Fiber Optic Gyro Packaging and Shipping:

  • The gyroscope is packaged in a static-free bag for protection.
  • The bag is then placed in a box with additional foam padding for cushioning.
  • The box is sealed and labeled for shipping.
  • The package is shipped using a reliable and secure delivery service.


FAQ:

Q1: What is the Brand Name of the Fiber Optic Gyro?

A1: The Brand Name of the Fiber Optic Gyro is avic.

Q2: What is the Model Number of the Fiber Optic Gyro?

A2: The Model Number of the Fiber Optic Gyro is F70-98.

Q3: Where is the place of origin of the Fiber Optic Gyro?

A3: The place of origin of the Fiber Optic Gyro is China.

Q4: What is the certification of the Fiber Optic Gyro?

A4: The certification of the Fiber Optic Gyro is CE.

Q5: What is the minimum order quantity of the Fiber Optic Gyro?

A5: The minimum order quantity of the Fiber Optic Gyro is 1.
