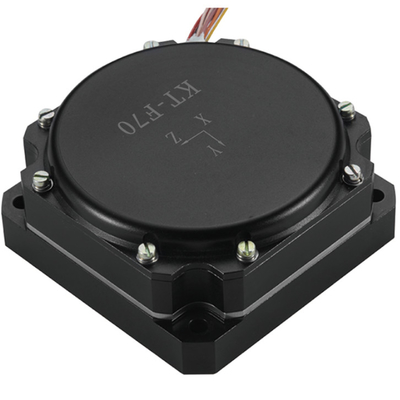

10ppm High Precision 70mm Optical Gyroscope for Angular Speed Measurement

1
MOQ
7350 USD
Price
10ppm High Precision 70mm Optical Gyroscope for Angular Speed Measurement
Features Gallery Product Description Request A Quote
Features
Specifications
Bias Repeatability (°) / H: ≤0.03
Steady-state Power Consumption (full Temperature) (W): <4
Scale Factor Repeatability (ppm): ≤10
Start Time (s): 5
Storage Temperature Of (℃): -45~+80
Supply Voltage (V): ±5
Bias Drift (°) / H (10s Smooth) -45~ + 70: ≤0.1
Application: Angular Speed Measure
High Light:

10ppm Optical Gyroscope

,

70mm Optical Gyroscope

,

Angular Speed Measurement Fiber Optic Gyro

Basic Infomation
Place of Origin: China
Brand Name: avic
Certification: CE
Model Number: F70-98
Payment & Shipping Terms
Packaging Details: 1KG
Delivery Time: 1 weeks for sample
Payment Terms: 100% in advance
Supply Ability: 100 pcs/month
Product Description

High Precision 70mm Optical Gyroscope for Angular Speed Measurement with Scale Factor Non-linearity ≤10ppm

Product Description:

Our product is a inertial angle rate sensor that is based on the well-known optical Sagnac effect with the purpose of measuring the rotation velocity of the carrier along one designated axis.

A digital closed-loop system is used to extract the difference in optical path length between clockwise and anti-clockwise and change it into a voltage signal through modulation and demodulation. This, coupled with feedback and control, allows for the real time detection of angular velocity signals.



Features:

  • Product Name: Fiber Optic Gyro
  • Weight (g): 290
  • Dimensions (mm): 70×70×32
  • Dynamic range (°) / s: ±500
  • Steady-state power consumption (full temperature) (W): <4
  • Bias repeatability (°) / h: ≤0.03


Applications:

Products Suitable for Wide Range of Applications

Our products offer a variety of solutions suitable for a wide range of applications. These include:

  • Photo electric crane
  • Crane
  • Flying platform
  • Inertial navigation system
  • Inertial measurement system
  • Optical instrument
  • Photographic instrument
  • Platform stabilization device
  • Inertial measurement instrument



So regardless of the application, there's likely a product that can meet your needs.



Technical Parameters:

Features Specifications
Scale factor non-linearity (ppm) ≤10
Operate temperature ℃ -40~+70
Bias drift (°) / h (10s smooth) -45~ + 70 ≤0.1
Start time (s) 5
Random walk coefficient(º)/h1/2 ≤0.005
Scale factor repeatability (ppm) ≤10
Steady-state power consumption (full temperature) (W) <4
Dynamic range (°) / s ±500
Storage temperature of (℃) -45~+80
Supply voltage (V) ±5


Support and Services:

Technical Support and Service for Fiber Optic Gyro

We offer comprehensive technical support and service for Fiber Optic Gyro products. Our experienced technical team is available to help you with product installation, maintenance, troubleshooting, and more.

Our technical support services include:

  • Installation and configuration of the products
  • Troubleshooting of hardware and software components
  • Software upgrades and updates
  • Repair and maintenance services
  • Training and education

We also offer our customers on-site and remote technical support. Our team is available 24/7 to provide fast and efficient solutions to any problem you may experience.



Packing and Shipping:

Packaging and Shipping

Fiber Optic Gyros are packaged in containers designed for air, land, and sea shipping. All containers are moisture and dust proof to protect against environmental conditions. All containers are labeled with the product name, serial number, and the shipping address.

Fiber Optic Gyros are shipped via air, land, or sea depending on the customer's needs. All shipments are insured and tracked to ensure delivery. Delivery times vary depending on the shipping method and destination.



FAQ:

  • Q: What is avic F70-98 Fiber Optic Gyro?
    A: avic F70-98 Fiber Optic Gyro is a precision instrument used to measure angular velocity and angular displacement. It uses optical fibers to sense the rotation angle of the gyroscope and is widely used in navigation, guidance and control systems.
  • Q: Where is avic F70-98 Fiber Optic Gyro made?
    A: avic F70-98 Fiber Optic Gyro is made in China.
  • Q: Does avic F70-98 Fiber Optic Gyro have a certification?
    A: Yes, avic F70-98 Fiber Optic Gyro has a CE certification.
  • Q: How many avic F70-98 Fiber Optic Gyros can I order?
    A: The minimum order quantity for avic F70-98 Fiber Optic Gyro is 1.
  • Q: How much does avic F70-98 Fiber Optic Gyro cost?
    A: avic F70-98 Fiber Optic Gyro costs 7350 USD per unit.
