High Precision Fiber Optical Gyroscope for Angular Speed Measurement

Name: High Precision Fiber Optical Gyroscope for Angular Speed Measurement
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 800 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-910
MOQ:	1
Price:	800USD
Payment Terms:	100% in advance
Supply Ability:	100 pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Zero-bias Stability:

≤0.8°/h

Zero-bias Repeatability:

≤0.8°/h

Meansuremnet Range:

±240°/s

Random Walk:

≤0.02°/h

Acceleration:

≥70g

Impact:

≥1500g

Packaging Details:

1KG

Supply Ability:

100 pcs/month

Highlight:

10ppm Optical Gyroscope

70mm Optical Gyroscope

Angular Speed Measurement Fiber Optic Gyro

Product Description

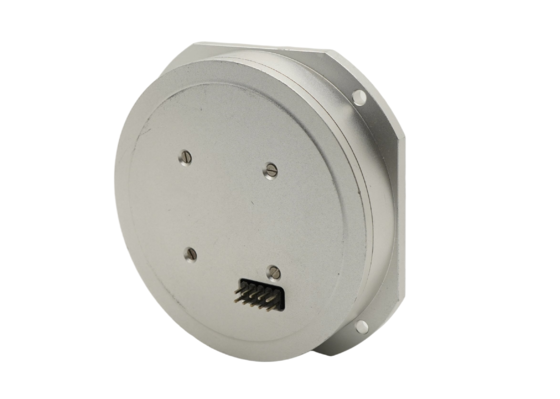

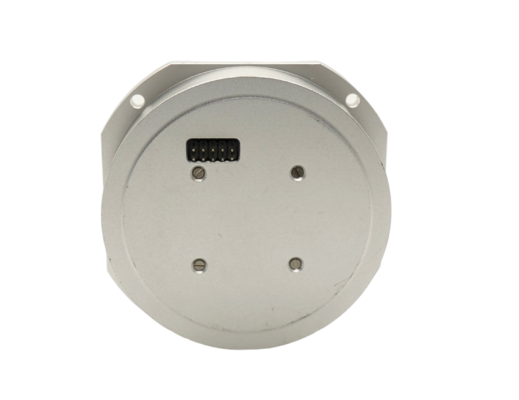

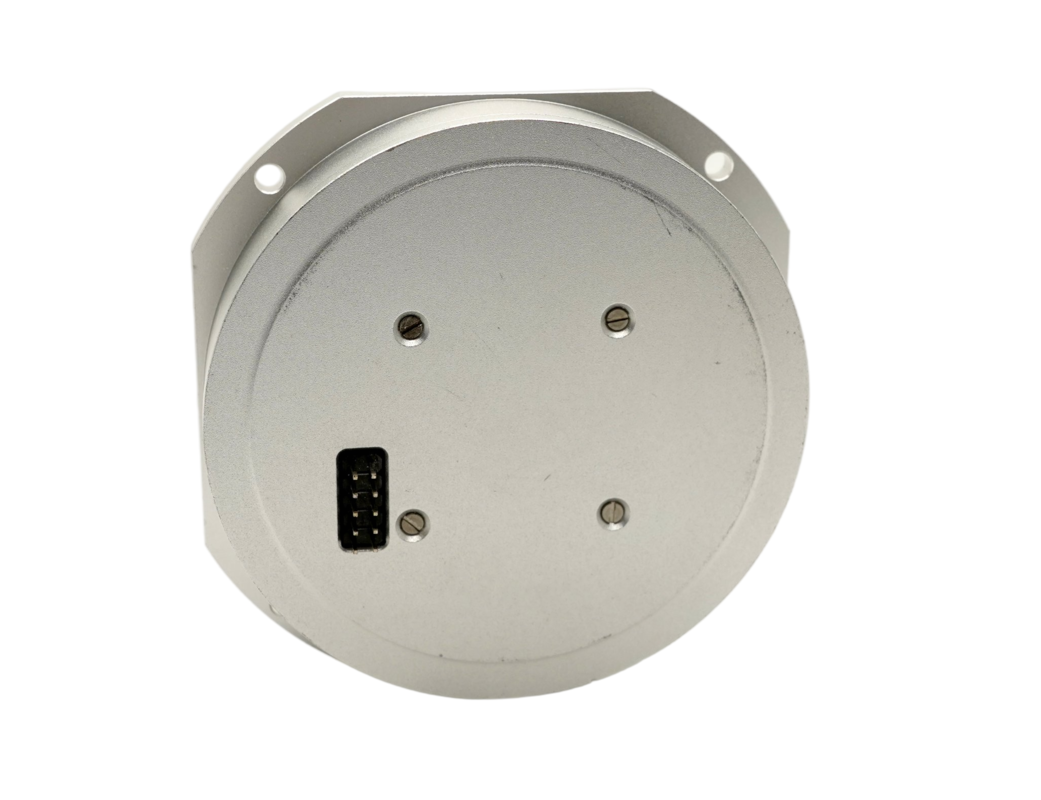

High Precision Fiber Optical Gyroscope for Angular Speed Measurement

Designed for precision measurement, the MFOG-910 micro-nano fiber optic gyroscope employs high-performance micro-nano optical components to achieve superior angular velocity detection. Its integrated optical, mechanical, and electronic design provides stable operation with fast startup and no moving parts.

Applications

Laboratory experiments, motion analysis platforms, robotics, and academic research in inertial sensing.

Product Components

Optical path assembly
Detection and control signal circuit board
Optical fiber coil skeleton, shell and other structural parts

Product Specifications

Appearance and dimension: 82mm * 82mm * 19.5mm (without plug)

Weight: ≤150g

Operating temperature: -40℃ to +70℃

Storage temperature: -55℃ to +85℃

Random vibration: 20g, frequency range: 20Hz to 2000Hz

Main Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±240
2	Scale factor (mV/°/s)	47±5
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, °/H)	≤0.8
5	Zero-bias repeatability (1σ, °/H)	≤0.8
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Power supply (V)	5+0.25 +12
9	Power Consumption (W)	≤1.5
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Life (years) (calculated assessment)	≥15
13	MTBF (Calculated Assessment)	≥100000

Mechanical and Electrical Interfaces

Mechanical Interface

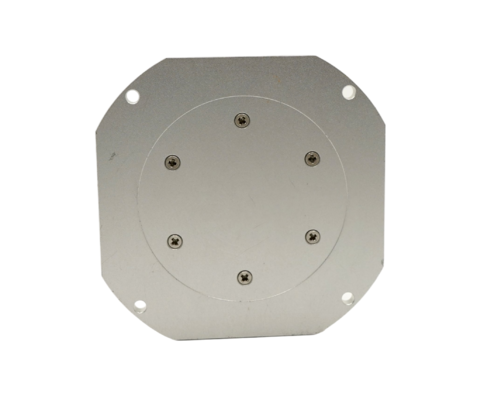

The bottom surface of the product is the installation surface, and the overall dimensions and installation interfaces are as follows:
