Angular Rate Fiber Optic Gyroscope Sensor Small Fog
Features Gallery Product Description Request A Quote
Features
Specifications
Output Mode: Voltage
Range: 300°/s
Bias (Allan): ≤0.2°/h
Consumption: ≤0.7w
Power Supply: 5(±0.15)V
Random Walk: ≤0.04°/√h(1σ)
Scale Factor: 4 Mv/° /s
High Light:

angular rate fiber optic gyroscope sensor

,

small fog fiber optic gyroscope sensor

,

small fog gyroscope sensor

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Certification: CE
Model Number: FCG24A
Payment & Shipping Terms
Packaging Details: Sponge+ box
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 100/MONTH
Product Description

Fiber Optical Angular Rate Sensor Small FOG





Product Overview
MFOG-24 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics with digital output, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.
This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.




Power Requirements

  +5V
Voltage 4.85V~5.15V
Ripple 20mV
Electric current 0.25A


Angular Rate Fiber Optic Gyroscope Sensor Small Fog 0



Composition
The product is mainly composed of the following components:
A) an optical path assembly;
B) Detection and control signal circuit board;
C) Optical fiber ring skeleton, shell and other structural parts;
3 Appearance and dimension

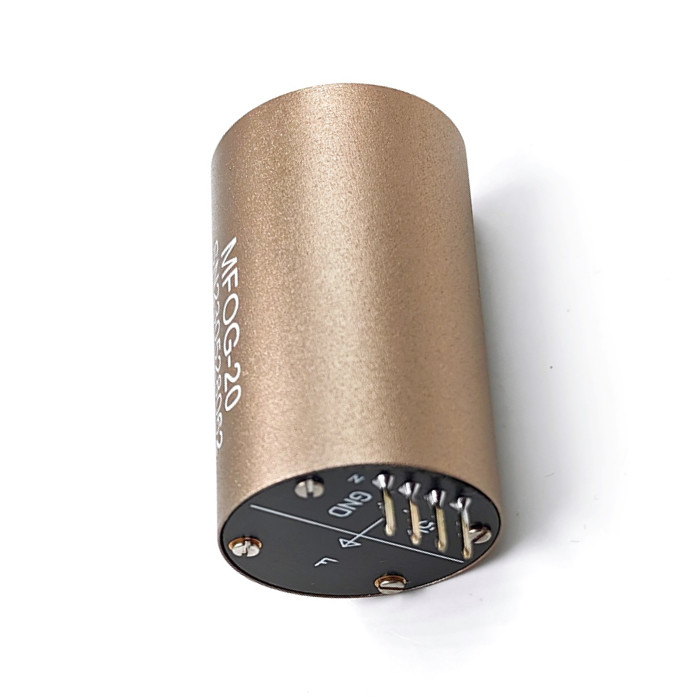

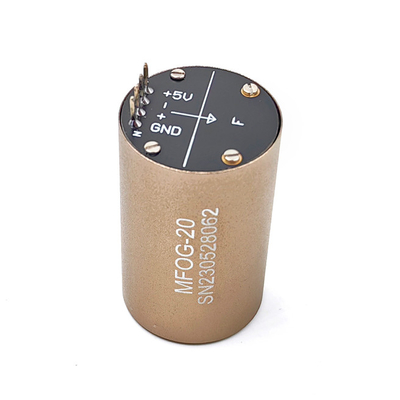

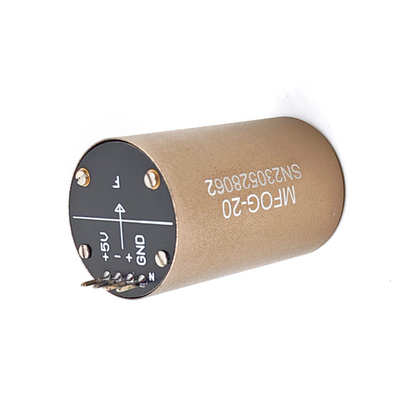

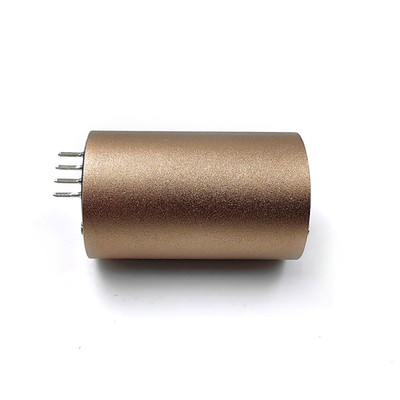

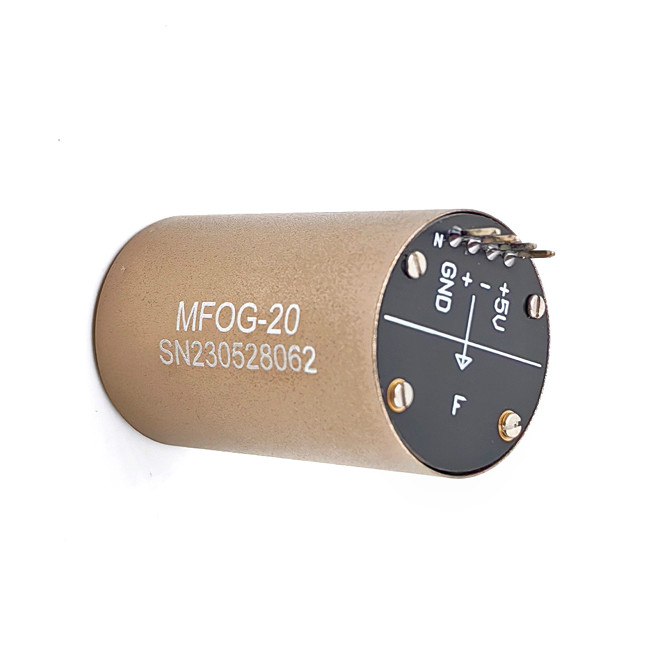

The product is cylindrical, with overall dimensions of φ24 mm × 40mm


Main Performance Parameters

1 Input range (°/s) ±300
2 Scale factor 7+0.7mv/o/s
3 Bias stability (10s,1σ,°/h) ≤2
4 Bias repeatability (1σ,°/h) ≤2
5 Random walk(°/h1/2) ≤0.02
6 Bias offset(10s,1σ) ≤0.05
7 3dB Band Width (Hz) ≥450
8 Supply voltage(V) 5+0.15
9 Power consumption(W) ≤0.7





Angular Rate Fiber Optic Gyroscope Sensor Small Fog 1
MFOG24A analog output Micro-nano FOG.pdf
