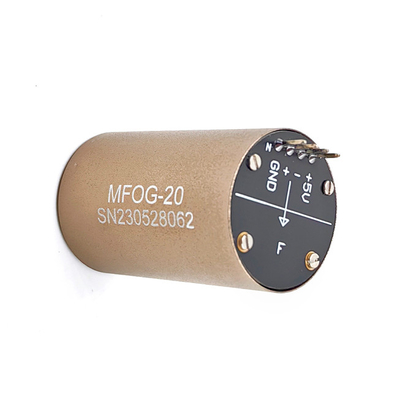

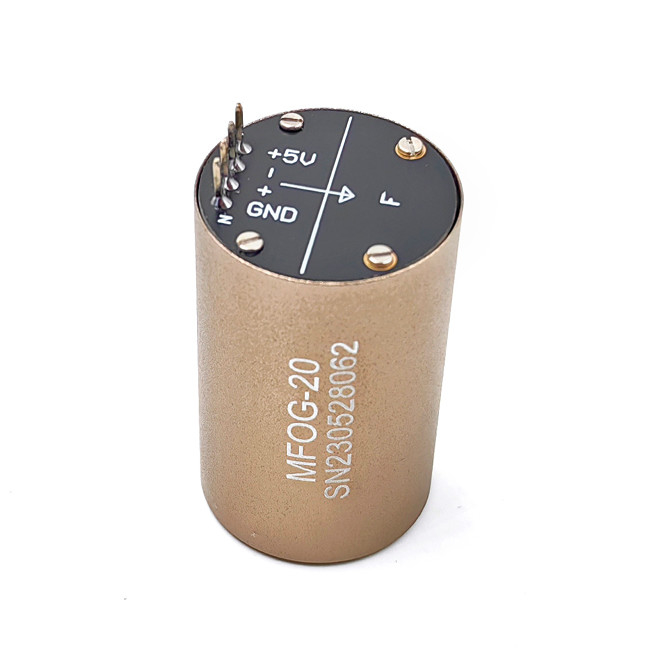

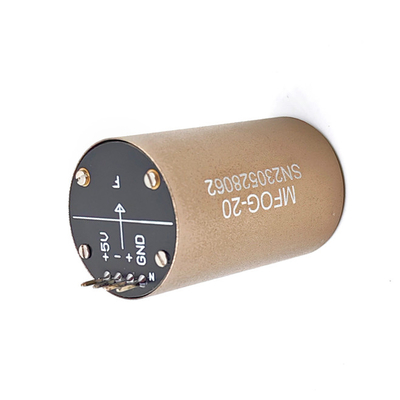

Optic Angle Speed Sensor High Vibration Resistant Fiber Gyro
Power Requirements
| +5V | |
| Voltage | 4.85V~5.15V |
| Ripple | 20mV |
| Electric current | 0.25A |
Main Performance Parameters
| 1 | Input range (°/s) | ±300 |
| 2 | Scale factor | 7+0.7mv/o/s |
| 3 | Bias stability (10s,1σ,°/h) | ≤2 |
| 4 | Bias repeatability (1σ,°/h) | ≤2 |
| 5 | Random walk(°/h1/2) | ≤0.02 |
| 6 | Bias offset(10s,1σ) | ≤0.05 |
| 7 | 3dB Band Width (Hz) | ≥450 |
| 8 | Supply voltage(V) | 5+0.15 |
| 9 | Power consumption(W) | ≤0.7 |
