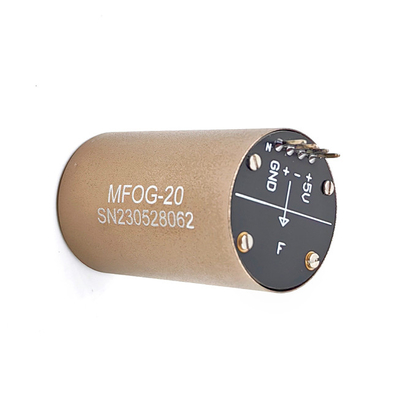

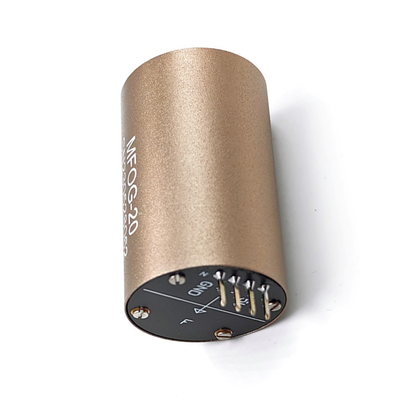

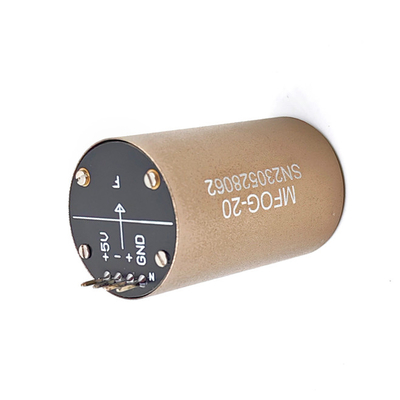

Voltage Output Fiber Optic Gyro 450 Hz Angular Rate Meter

Brand Name:	Firepower
Model Number:	MFOG-24A
MOQ:	1
Price:	1300 USD
Payment Terms:	T/T
Supply Ability:	100/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Output Mode:

Voltage

Range:

300°/s

Bias （Allan):

≤0.2°/h

Consumption:

≤0.7w

Power Supply:

5(±0.15)V

Random Walk:

≤0.04°/√h(1σ)

Scale Factor:

4 Mv/° /s

Packaging Details:

Sponge+ box

Supply Ability:

100/MONTH

Highlight:

voltage output fiber optic gyro

450 hz fiber optic gyro

voltage output fiber optic gyroscope

Product Description

Voltage Output Fiber Gyro 450Hz Fiber Angular Rate Meter

Main Performance Parameters

1	Input range (°/s)	±300
2	Scale factor	7+0.7mv/o/s
3	Bias stability (10s,1σ,°/h)	≤2
4	Bias repeatability (1σ,°/h)	≤2
5	Random walk(°/h1/2)	≤0.02
6	Bias offset(10s,1σ)	≤0.05
7	3dB Band Width (Hz)	≥450
8	Supply voltage(V)	5+0.15
9	Power consumption(W)	≤0.7

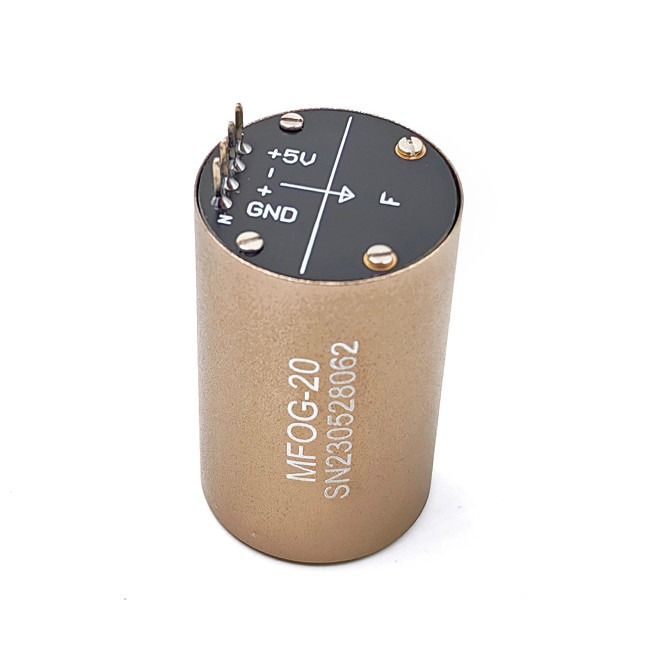

Voltage Output Fiber Optic Gyro 450 Hz Angular Rate Meter 0

Composition

The product is mainly composed of the following components:

A) an optical path assembly;

B) Detection and control signal circuit board;

C) Optical fiber ring skeleton, shell and other structural parts;

3 Appearance and dimension

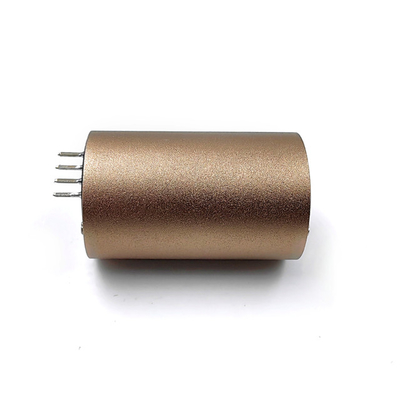

The product is cylindrical, with overall dimensions of φ24 mm × 40mm

Power Requirements

	+5V
Voltage	4.85V~5.15V
Ripple	20mV
Electric current	0.25A

Product Overview

MFOG-24 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics with digital output, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.

This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.
