Micro-Nano Integrated Fiber Optic Gyro with Good Start Performance

Name: Micro-Nano Integrated Fiber Optic Gyro with Good Start Performance
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 1800 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-910
MOQ:	1
Price:	1800
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Range:

±240°/s

Scale Factor:

47±5mV/°/s

Bias Stability:

≤0.8°/h, 10s, 1σ

Bias Repeatability:

≤0.8°/h, 1σ

3dB Bandwidth:

≥1000Hz

Random Walk:

≤0.02°/√h

Packaging Details:

Sponge&Box

Supply Ability:

100 pcs

Highlight:

Simulating One Axis Turntable

50kg One Axis Turntable

IMU Calibration 1 Axis Turntable

Product Description

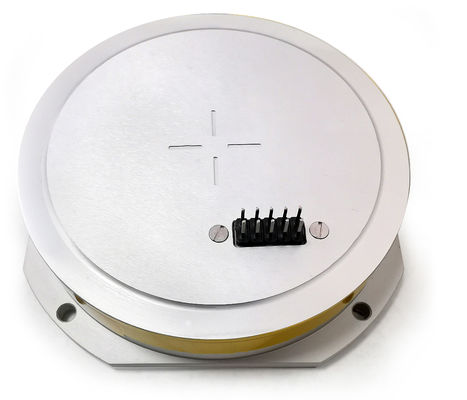

Micro-Nano Integrated Fiber Optic Gyro with Good Start Performance

Product Description

The MFOG-910 fiber gyro is an advanced angular rate sensor that integrates optical, mechanical, and electrical components. Utilizing the Sagnac effect, it incorporates highly reliable micro-nano fiber devices to detect, process, and feedback phase differences between counter-propagating light beams.

Through innovative redesign of optics, structural support, and control algorithms, this product achieves ultra-high rotational speed measurement capabilities.

Key components include:

Optical path components
Circuit components
Structural components

Product advantages:

Simple structure with no moving or wear parts
Excellent impact resistance
Fast start-up capability
Compact size and lightweight design
High reliability for motion carrier control and measurement

Technical Parameters

No.	Items	Value
1	Range (°/s)	±240
2	Scale factor(mV/o/s)	47±5
3	Scale factor nonlinearity (ppm)	≤1000
4	Bias stability (10s,1σ, °/h)	≤0.8
5	Bias repeatability (1σ, °/h)	≤0.8
6	3dB bandwidth (Hz)	≥1000
7	Random walk(o/√h)	≤0.02
8	Power supply (V)	5±0.25
9	Power Consumption(W)	≤1.5
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Working life years (Computational Evaluation)	≥15
13	MTBF (Computational Evaluation)	≥100000

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, established in 2013, is a high-tech enterprise specializing in R&D and production of:

Vibration acceleration sensors
MEMS gyros
IMU and INS systems
Angle testing equipment

With automated production lines in Xi'an, Shenzhen, and Zhuhai, we manufacture:

MEMS gyros and inertial navigation systems
Vibration acceleration sensors
Communication products
Angle test equipment

Our core technology includes self-developed array algorithms for inertial navigation products that provide:

Current position data
Three-dimensional attitude information
Speed measurement
Precise autonomous navigation control

Company Advantage

Our Services

FAQ

Q: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time based on your order quantities.

Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality control from the very beginning to the end:
1) We produce product according agreed technical requirements strictly;
2) We do full tests according to test methology;
3) We have a professional QA/QC team to ensure the quality.

Q: Do you accept OEM or ODM order?

A: Yes, we are professional manufacturer and we are capable for providing both OEM and ODM service by customer's needs.

Q: What are the terms of delivery?

A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you.

Q: What is the payment way?

A: TT, L/C, Pay later, West Union, Online Bank Payment.

Q: What is warranty?

A: Standardly 12 months and negotiable for longer warranty.

Q: What is the packing quality?

A: For sample order, we use carton box with sponge, and batch order, we use wooden box.

Q: What is final price?

A: For standard product, price is as in the price table; For customized product, price by checking with sales, so as to different quantity needs.

Q: How to choose product?

A: We are professional manufacturer, we could provide standard product on shelf, or products by customer's specific requirements:
1) Choose from MadeinChnia platform or website;
2) Customer raise some certain different technical requirements based on standard products;
3) Customer provide specific and comprehensive technical requirements to sales to evaluate;
4) Customer explain application to sales to provide suitable products.
