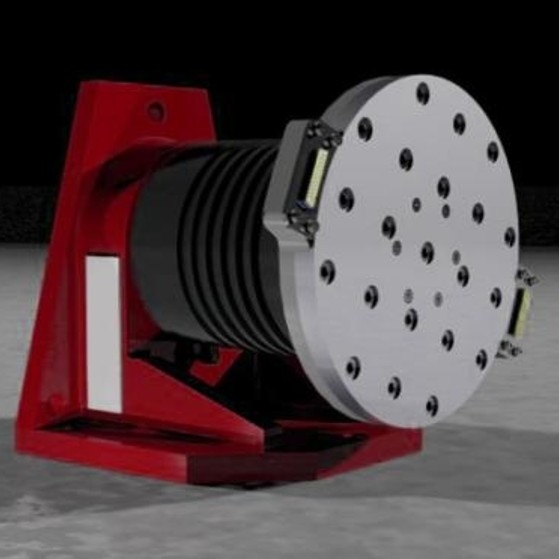

One Axis Simulating Turntable For INS IMU Calibration
| 1LT300-W 1LT400-W 1LT500-W 1LT600-W 1LT700-W | Unit | ||||||
| Vertical horizontal rotation | / | ||||||
| 30/50 | 50/70 | 30 | 30/50 | 50/70 | Kg(Optional) | ||
| Φ500 | Φ700 | Φ300 | Φ500 | Φ700 | mm | ||
| 0.02 | 0.03 | 0.03 | 0.03 | 0.03 | mm | ||
| 350 | 650 | 350 | 650 | 850 | mm | ||
| ±1~3 | ±1~3 | ±1~3 | ±1~3 | ±1~3 | ″ | ||
| ±0〜 ±360 | ±0〜 ±360 | ±0〜 ±360 | ±0〜 ±360 | ±0〜 ±360 | ° | ||
| ±1~3 | ±1~3 | ±1~3 | ±1~3 | ±1~3 | ″ | ||
| 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | ° | ||
| 0.001〜10000 | 0.001〜3000 | 0.001〜10000 | 0.001〜3000 | 0.001〜2000 | °/s | ||
|
ω＜1 1<ω＜10 10<ω |
ω＜1 1<ω＜10 10<ω |
ω＜1 1<ω＜10 10<ω |
ω＜1 1<ω＜10 10<ω |
ω＜1 1<ω＜10 10<ω |
°/s | ||
|
1 × 10 -3 1 × 10 -4 5 × 10 -5 |
1 × 10 -3 1 × 10 -4 5 × 10 -5 |
1 × 10 -3 1 × 10 -4 5 × 10 -5 |
1 × 10 -3 1 × 10 -4 5 × 10 -5 |
1 × 10 -3 1 × 10 -4 5 × 10 -5 |
1° Average 10 ° Average 360 ° Average |
||
| 4500 | 3000 | 10000 | 3000 | 3000 | °/s2 | ||
| Optional | Optional | Optional | Optional | Optional | / | ||
| 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | ° | ||
| 10~50 | 10~50 | 10~50 | 10~50 | 10~50 | Optioanl | ||
| 5~80Hz | 5~80Hz | 5~100Hz | 5~100Hz | 5~100Hz | Hz(Optional) | ||
| ≤±0.03 | ≤±0.01 | ≤±0.03 | ≤±0.03 | ≤±0.03 | V | ||
| -60~+100 | -60~+100 | -60~+100 | -70~+100 | -70~+100 | ℃ | ||
| ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ℃ | ||
| 2 | 2 | 2 | 2 | 2 | ℃ | ||
The single-axis temperature box turntable is composed of a single-axis turntable with horizontal rotation and a workbench installed in the temperature box . The cooling of the temperature box adopts an independent external cooling device . The turntable is fixed on the vibration isolation frame . The data acquisition of the test product and the external control of the operation of the device shall be carried out by the operator through the system for transmitting control commands and data acquisition located on the operator console . The product has position control , rate control and computer automatic status control and data acquisition , processing and display functions , with speed limit setting and
overspeed protection and temperature control functions .
(The temperature control accuracy and working temperature range of the temperature box can be customized according to customer requirements , the maximum can be customized -70~ 150 configuration)
