Multi Function Single Axis Motion Simulator Position Speed And Swing Test Table

1
MOQ
Multi Function Single Axis Motion Simulator Position Speed And Swing Test Table
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Multi-function Turntable
Load Capacity: 50kg
Table Size: Φ 500mm
Table Facet Flatness: 0.02 Mm
Runout Of Table End Face: 0.05mm
Magnetic Flux Leakage: Less Than 1mT
Rotation Accuracy: ± 3 ″
System Bandwidth: 5~ 100Hz
High Light:

Position Speed And Swing Test Table

,

Single Axis Motion Simulator

,

1 Axis Motion Simulator

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: 1LT-500
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T
Supply Ability: 1000/month
Product Description

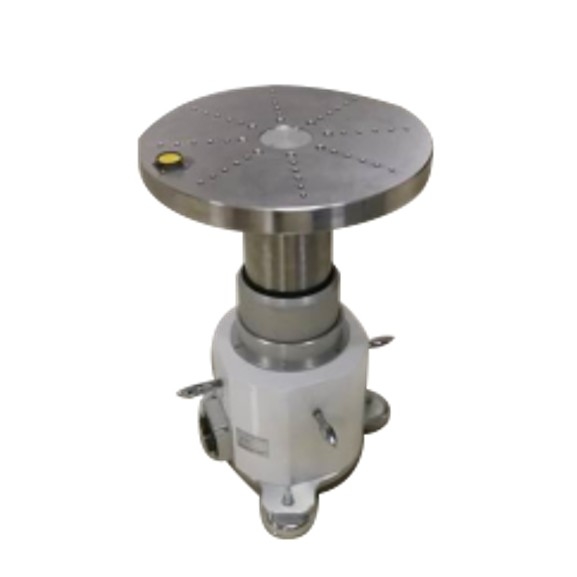

Position Speed And Swing Test Table Single Axis Motion Simulator



Single-axis multi-function turntable is a mature and high precision single-axis speed measuring equipment , which is mainly used in various position , speed and swing test and detection of rate gyro and its inertial measurement combination. After selecting the temperature control box , temperature control system , auxiliary shaft and other parts , the turntable can also be applied to the performance test of inertial navigation devices and inertial navigation systems at high and low temperatures . The turntable supporting computer has the ability to store the data related to the operation of the turntable , such as: time , turntable position , Angle rate , real-time value of the temperature of the table , and has the ability to output data through the serial port , and can be operated by an external computer (through the serial port) to control the turntable and temperature .



Index                        1LT300          1LT500      1LT700        1LWT300     1LWT500     1LWT700     Unit
  Vertical Vertical Vertical Vertical & Horizontal Switchable /
30 30/50 50/70 Optioanl Optional30 30/50 Optioanl 50/70 Optioanl Kg
Φ300 Φ500 Φ700 Φ300 Φ500 Φ700 mm
0.02 0.03 0.03 0.02 0.03 0.03 mm
350 650 850 350 650 850 mm
0.05 0.05 0.05 0.05 0.05 0.05 mm
±1~3 ±1~3 ±1~3 ±1~3 ±1~3 ±1~3
±0〜 ±360 ±0〜 ±360 ±0〜 ±360 ±0〜 ±360 ±0〜 ±360 ±0〜 ±360 °
±1~3 ±1~3 ±1~3 ±1~3 ±1~3 ±1~3
0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 °
0.001〜10000 0.001〜3000 0.001〜3000 0.001〜10000 0.001〜3000 0.001〜2000 °/s

ω<1

1<ω<10

10<ω

ω<1

1<ω<10

10<ω

ω<1

1<ω<10

10<ω

ω<1

1<ω<10

10<ω

ω<1

1<ω<10

10<ω

ω<1

1<ω<10

10<ω

°/s

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1° Average

10 ° Average 360 ° Average

10000 4500 3000 10000 4500 3000 °/s2(Optional)
Rocking function Optional Optional Optional Optional Optional Optional /
  Rate resolution 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 °
Slip ring number 10~50 10~50 10~50 10~50 10~50 10~50 (Optioanl)
System bandwidth 5~ 100Hz 5~80Hz 5~80Hz 5~ 100Hz 5~80Hz 5~50Hz Hz(Optioanl)
Slip-ring voice ≤±0.03 ≤±0.03 ≤±0.03 ≤±0.03 ≤±0.03 ≤±0.03 V
Leakage flux <0.5 <0.5 <0.5 <0.5 <0.5 <0.5 mT
MTBF ≥2000 ≥2000 ≥2000 ≥2000 ≥2000 ≥2000 h
