Shock-Resistance Micro-Nano Fiber Optic Gyroscope

Name: Shock-Resistance Micro-Nano Fiber Optic Gyroscope
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 1217 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-910
MOQ:	1
Price:	1217 USD
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

±240°/S

Scale Factor:

47±5mv/°/S

Zero-Bias Stability:

≤0.8°/H, 10s, 1σ

Zero Bias Repeatability:

≤0.8°/H, 1σ

Power Supply:

5±0.25V

Power Consumption:

≤1.5W

Packaging Details:

Sponge&Box

Supply Ability:

100 pcs

Highlight:

Position Speed And Swing Test Table

Single Axis Motion Simulator

1 Axis Motion Simulator

Product Description

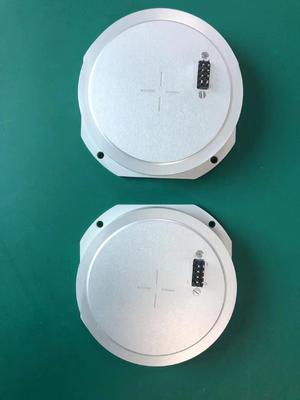

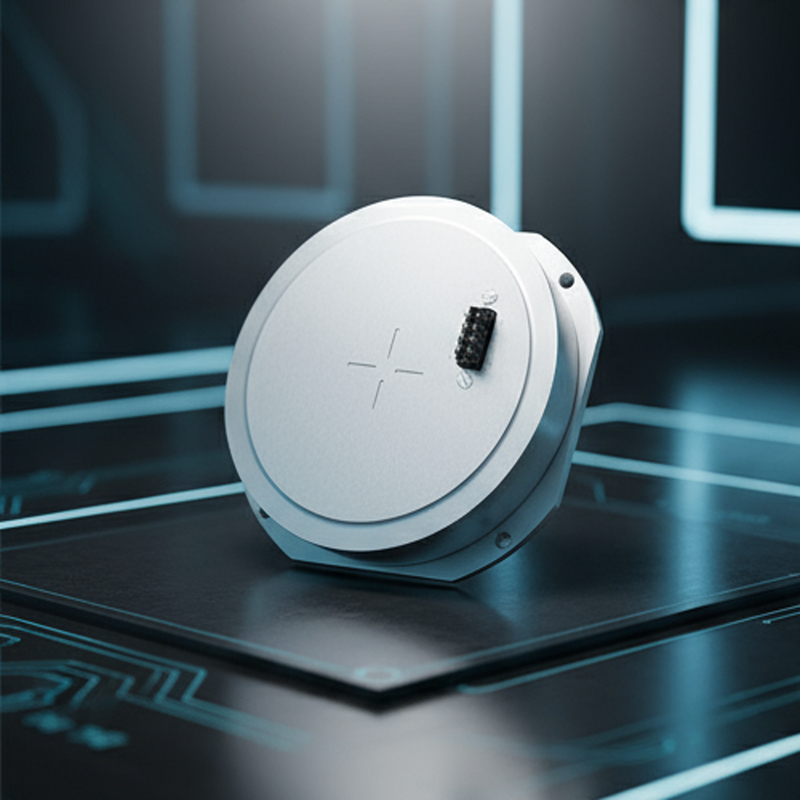

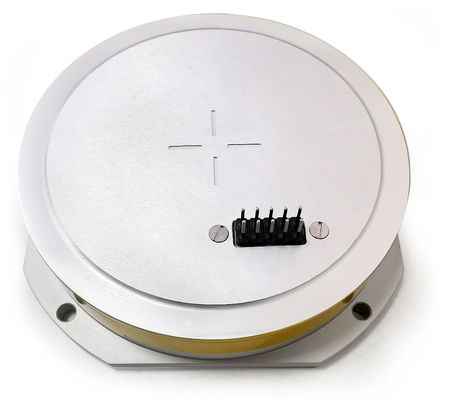

Shock-Resistance Micro-Nano Fiber Optic Gyroscope

Product Description

The MFOG-910 fiber gyro is an advanced angular rate sensor that integrates optical, mechanical, and electrical components. Utilizing the Sagnac effect, it incorporates highly reliable micro-nano fiber devices to detect, process, and feedback phase differences between counter-propagating light beams. Through innovative redesign of optics, structural support, and control algorithms, this product achieves ultra-high rotational speed measurement.

Comprising optical path components, circuit components, and structural components, the MFOG-910 features:

Simple structure with no moving or wear parts
Exceptional impact resistance
Fast start-up capability
Compact size and lightweight design
High reliability for motion carrier control and measurement

Technical Parameters

No.	Items	Value
1	Range (°/s)	±240
2	Scale factor(mV/o/s)	47±5
3	Scale factor nonlinearity (ppm)	≤1000
4	Bias stability (10s,1σ, °/h)	≤0.8
5	Bias repeatability (1σ, °/h)	≤0.8
6	3dB bandwidth (Hz)	≥1000
7	Random walk(o/√h)	≤0.02
8	Power supply (V)	5±0.25
9	Power Consumption(W)	≤1.5
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Working life years (Computational Evaluation)	≥15
13	MTBF (Computational Evaluation)	≥100000
