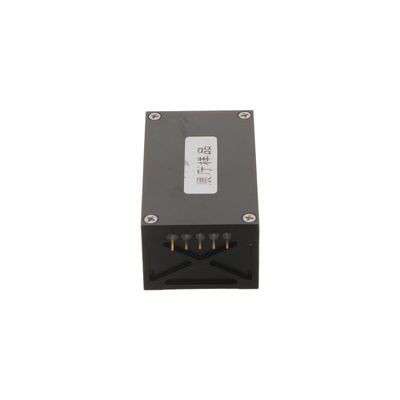

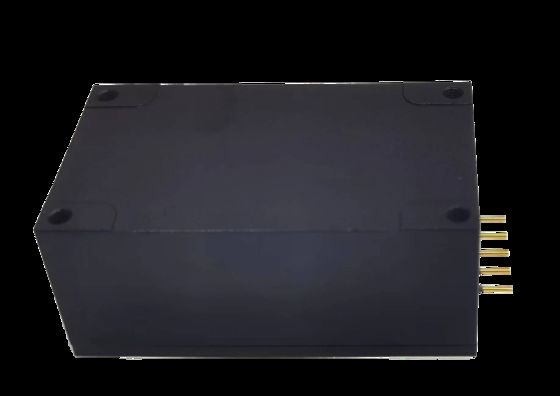

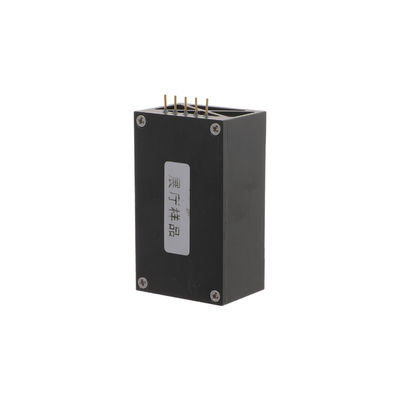

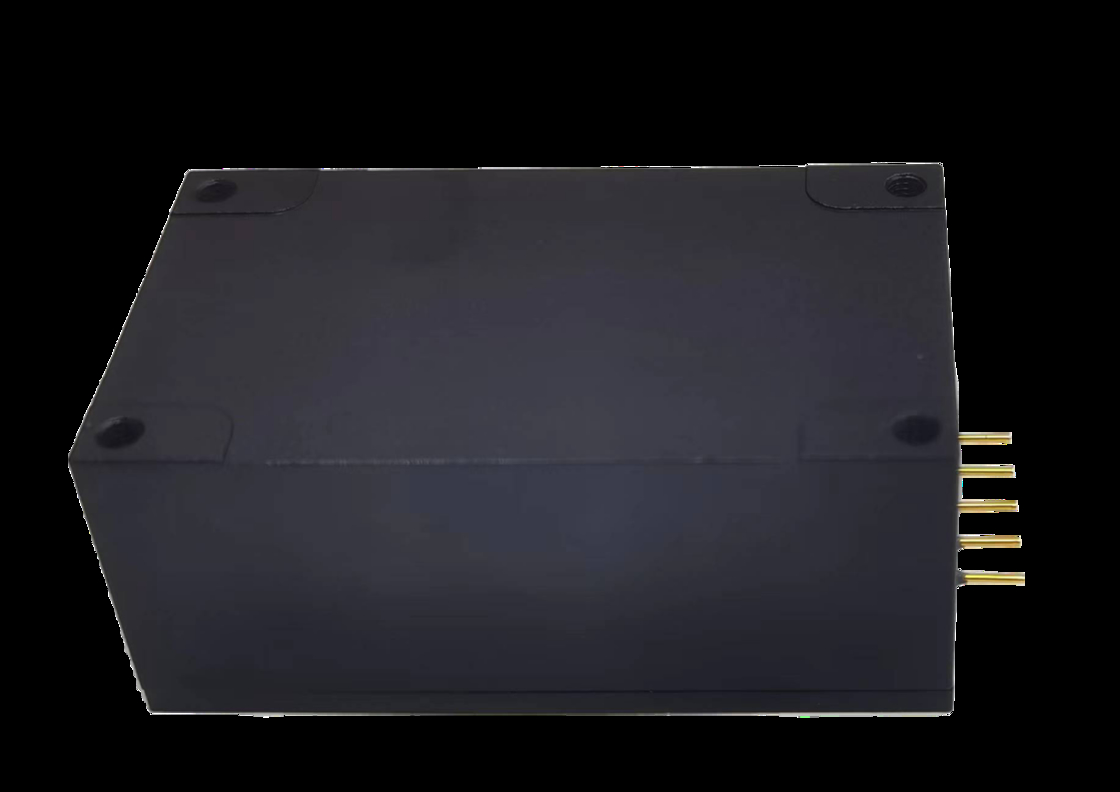

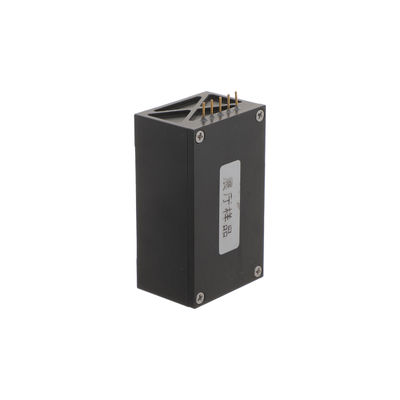

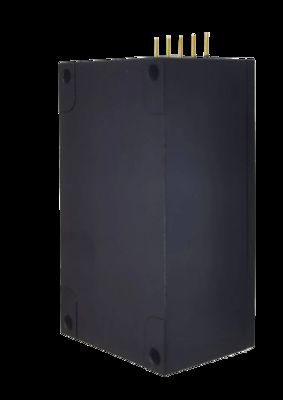

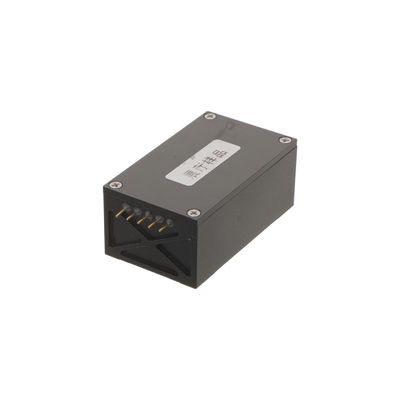

Next-Generation Silicon Photonic Fiber Optic Gyroscope for INS Navigation

Brand Name:	Firepower
Model Number:	MFOG-095
MOQ:	1
Payment Terms:	T/T,L/C
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Type:

Fiber Optic Vertical Gyro

Zero Bias Stability:

≤2°/h (10s Smoothing)

Dynamic Range:

±150°/s

Random Walk:

≤0.02°/√h(1σ)

Band Width:

≥1000Hz

Output Voltage:

5 V

Operating Temperature:

-40 To 85°C

Start-up Time:

≤1s

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

Two Axis Turntable for Accelerometer

Precise Two Axis Turntable

2 Axis Turntable for Gyro

Product Description

Next-Generation Silicon Photonic Fiber Optic Gyroscope for INS Navigation

FizoptikaVG095 Micro-Nano Fiber Gyro - High-performance angular rate sensor designed for harsh environments. Based on the Sagnac effect, it processes counter-propagating light phase differences. Key components include optical path assembly, signal circuit board, fiber coil skeleton, and protective shell.

Key Features

Ultra-lightweight design at ≤70g
Wide temperature tolerance (-40℃ to +70℃ operating, -55℃ to +85℃ storage)
Withstands 20g random vibration (20Hz-2000Hz)
No wearing parts for increased reliability
Fast startup time (≤1 second)
Ideal for carrier attitude control applications

Main Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±150
2	Scale factor (mV/°/s)	≥10
3	Zero-bias stability (10s, 1σ, °/H)	≤2
4	Zero-bias repeatability (1σ, °/H)	≤2
5	Zero bias (°/s)	≤0.05
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Start-up Time (s)	≤1
9	Power supply (V)	5+0.15
10	Power Consumption (W)	≤0.7
