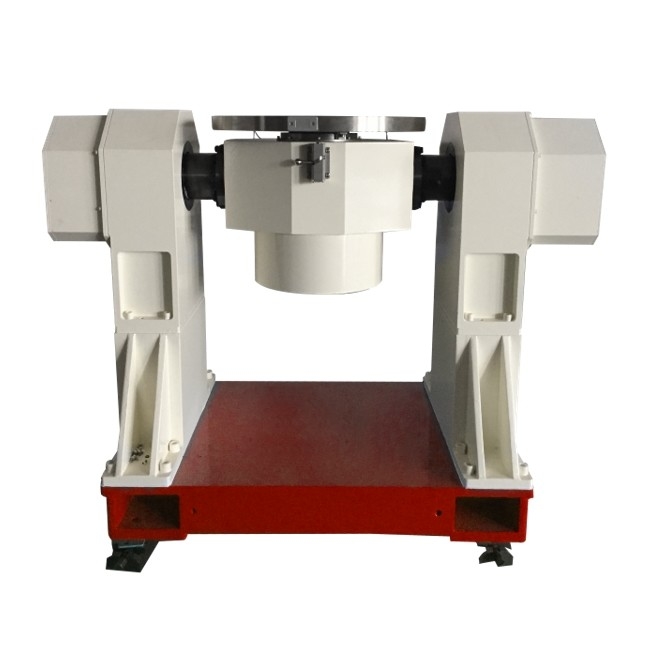

Gyro/AccelerometerIMU/INS Calibration Precise Two Axis Turntable



I. Main uses and functions

The turntable is a table-type structure test equipment produced by our company, which can be used for the detection and test of inertial measurement unit, and can also be used for the calibration and measurement of two-dimensional rotation angle of other instruments.

The main functions are:

1. Accurate rotation angle of inner ring and outer ring and display angle;

2. Function of horizontal adjustment;

3. Align and aim at the installation position;

4. The scale ring on the mechanical table body realizes the preliminary angle indication;

5. The mechanical table body uses the operating hand wheel and handle to realize manual indexing;

6. The inner ring shaft and the outer ring shaft have mechanical locking function;

7. Digital display electric box has RS232 interface.

II. Main technical indicators

1. Overall dimension: table body 900mm (750mm (900mm.

Total weight: about 650 kg.

3. Table top of mechanical table body

(1) Table top material: HT250

(2) Table size (customizable): (450mm/ (320mm.

(3) Flatness of table: 0.02 mm.

(4) Runout of table face: 0.03 mm.

(5) Table load installation form: uniformly distribute "M" -shaped T-shaped grooves.

(6) Bearing capacity: the load weight shall not be less than 50 kg; the load height shall not be greater than 200mm.

4. Inner ring shaft

(1) Angle range: continuous and infinite

(2) Tilt rotation error: ± 1.5 (

(3) Angular position measurement accuracy: ± 3 (

(4) Display resolution: 0.36 (

(5) Repeatability of angular position measurement: 2 (

(6) Display: 0 ~ 359.9999 °

5. Outer ring shaft

(1) Angle range; (90(

(2) Tilt rotation error: ± 2 (

(3) Angular position measurement accuracy: ± 5 (

(4) Display resolution: 0.36 (

(5) Repeatability of angular position measurement: 2 (

(6) Display mode: 0-359.9999 °;

6. Perpendicularity error of two axes: ± 5 (

7. Horizontal adjustment range: (2 (

8. Horizontal adjustment accuracy: 3

III. Conditions of use

Ambient temperature: 20 ℃ (5 ℃)

2. Relative humidity 80% RH.

3. The turntable is placed on the vibration isolation foundation.

4. The airflow in the turntable laboratory is stable, without electromagnetic interference, and there is no violent vibration and impact around.

5. Insulation resistance: the insulation resistance between isolated points and between isolated points and the shell shall not be less than 20 M (.
