Angular Rate Sensor for Attitude Tracking

Name: Angular Rate Sensor for Attitude Tracking
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 1217 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-910
MOQ:	1
Price:	1217 USD
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product Name:

Angular Vibration Table

Load Capacity:

5kg

Table Size:

Φ300mm

Measuring Range:

±150°/S

Scale Factor:

7±0.5mv/°/S

Zero-Bias Stability:

≤1°/H, 10s, 1σ

Zero Bias Repeatability:

≤1°/H, 1σ

Power Supply:

5±0.25V

Power Consumption:

≤1W

Packaging Details:

Sponge&Box

Supply Ability:

100 pcs

Highlight:

Angular Vibration Turntable

5kg Single axis Turntable

Angular Vibration Single axis Turntable

Product Description

Angular Rate Sensor for Attitude Tracking

Product Description

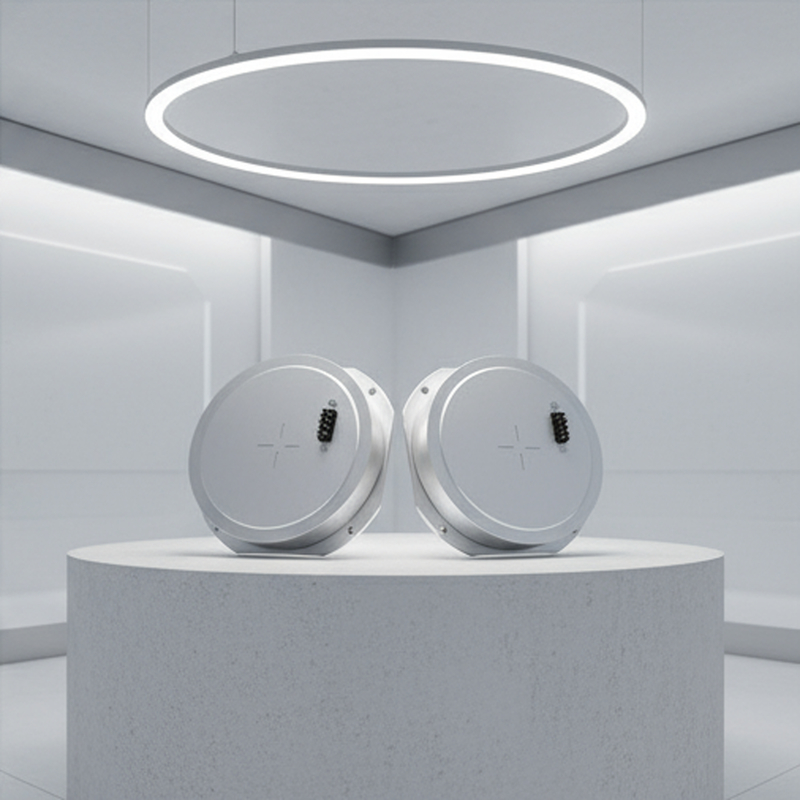

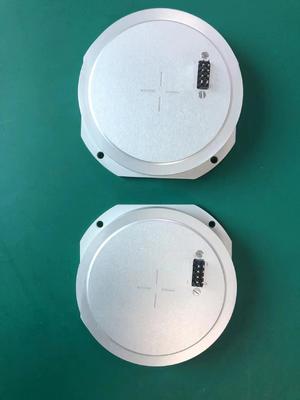

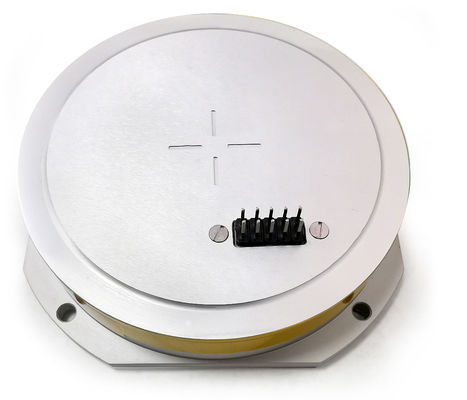

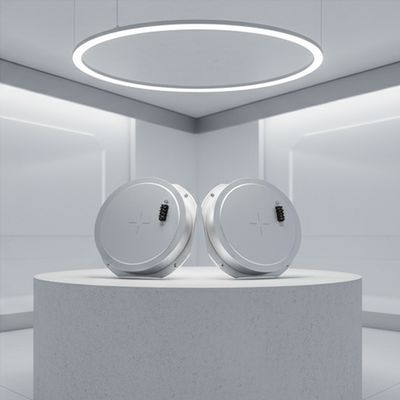

The MFOG-910 fiber gyro is an advanced angular rate sensor that integrates optical, mechanical, and electrical components. Utilizing the Sagnac effect, it incorporates highly reliable micro-nano fiber devices to detect, process, and provide feedback on phase differences between counter-propagating light beams. Through innovative redesign of optics, structural support, and control algorithms, this product achieves ultra-high rotational speed measurement.

Comprising optical path components, circuit components, and structural components, the MFOG-910 features:

Simple structure with no moving or wear parts
Excellent impact resistance
Fast startup capability
Compact size and lightweight design
High reliability for motion carrier control and measurement

Technical Parameters

No.	Items	Value
1	Range (°/s)	±240
2	Scale factor(mV/o/s)	47±5
3	Scale factor nonlinearity (ppm)	≤1000
4	Bias stability (10s,1σ, °/h)	≤0.8
5	Bias repeatability (1σ, °/h)	≤0.8
6	3dB bandwidth (Hz)	≥1000
7	Random walk(o/√h)	≤0.02
8	Power supply (V)	5±0.25
9	Power Consumption(W)	≤1.5
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Working life years (Computational Evaluation)	≥15
13	MTBF (Computational Evaluation)	≥100000

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, established in 2013, is a high-tech enterprise specializing in R&D and production of vibration acceleration sensors, MEMS gyros, IMUs, INS, and angle testing equipment. With automated production lines in Xi'an, Shenzhen, and Zhuhai, we manufacture MEMS gyros, inertial navigation systems, vibration sensors, and communication products.

As an innovation-driven company, Firepower possesses China's leading production capabilities for inertial navigation and communication products. Our core focus is scientific research and technological innovation, developing autonomous navigation products with independent intellectual property rights. These products are widely applied in civilian vehicle and ship navigation systems, providing critical position, attitude, and speed information for precise autonomous navigation control.
