Micro-Nano Integrated Fiber Optic Gyro for Precision Inertial Navigation

Name: Micro-Nano Integrated Fiber Optic Gyro for Precision Inertial Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-091D
Price: 1350 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-091D
MOQ:	1
Price:	1350 USD
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Shock:

30g,11ms

Zero Bias Stability:

2.5°/H(10s,1sigma)

Power Supply:

5±0.15V

Bandwidth:

300Hz

Scale Factor:

7mv/°/S

Power:

12~18V

Packaging Details:

Sponge&Box

Supply Ability:

100 pcs

Highlight:

Single Axis Turntable For INS Test

Thermal Chamber 1 Axis Turntable

Motion Simulator With Thermal Chamber

Product Description

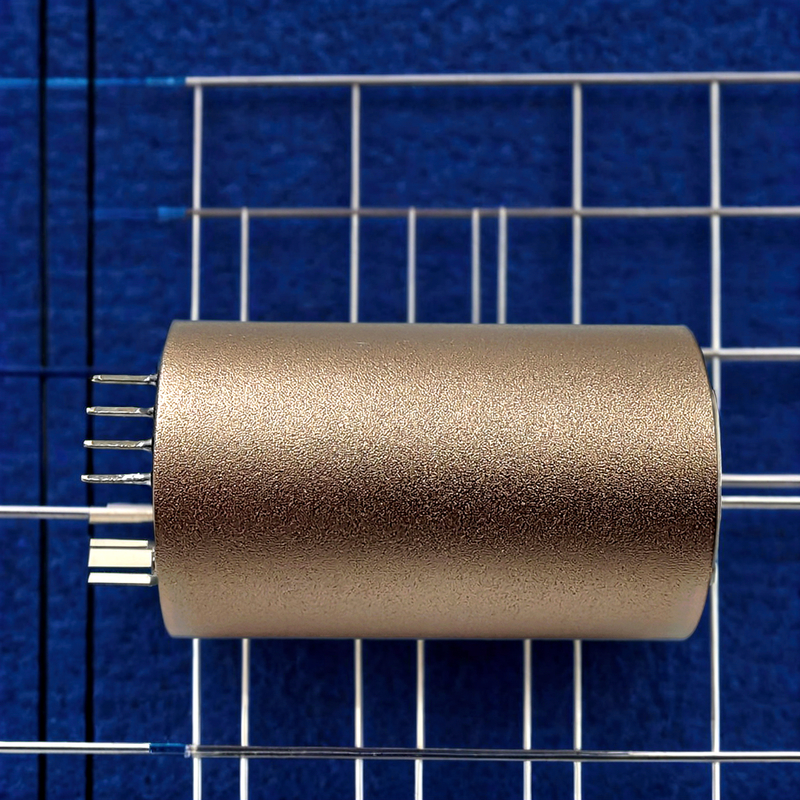

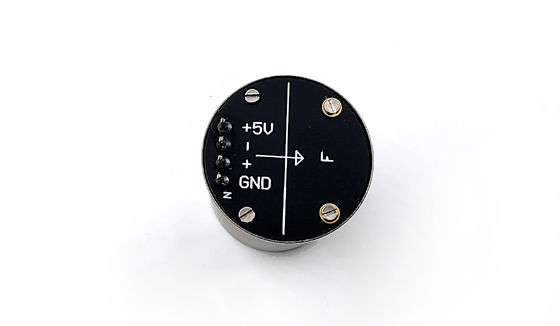

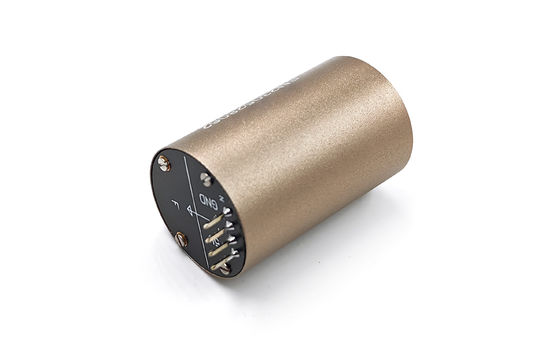

Micro-Nano Integrated Fiber Optic Gyro for Precision Inertial Navigation

Product Description

The MFOG-091D micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback the phase difference created by counter-propagating light beams.

Comprising optical path components, circuit components, and structural components, this product features:

Simple, durable structure with no moving or wearing parts
Fast startup capability
Compact size and lightweight design
Ideal for carrier attitude control and measurement applications

Technical Parameters

Parameter	Specification
Range	±300°/s
Scale Factor	3600LSB/°/s
Zero-bias stability	≤2°/h(10s, 1σ)
Angular random walk	0.03°/√h
Zero-bias stability at full temperature (-45ºC ~ +70ºC)	≤2°/h(10s, 1σ)
3dB Bandwidth	300Hz
Power supply	5±0.15V
Power Consumption	≤1.5W
Working temperature	-45~+70ºC
Shock	≤30g, 11ms
Vibration	20 ~ 2000Hz, 0.04g²/Hz
Dimension	φ24*52mm
Weight	≤30g

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, established in 2013, is a high-tech enterprise specializing in R&D and production of vibration acceleration sensors, MEMS gyros, IMUs, INS, and angle testing equipment. With automated production lines in Xi'an, Shenzhen, and Zhuhai, we manufacture MEMS gyros, inertial navigation systems, vibration sensors, and communication products.

As an innovation-driven company, Firepower possesses China's leading production capabilities for inertial navigation and communication products. Our core focus is scientific research and technological innovation, developing autonomous navigation products with independent intellectual property rights. These products are widely applied in civilian vehicle and ship navigation systems, providing critical position, attitude, and speed information for precise autonomous navigation control.

FAQ

Q: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Contact us for specific lead time based on order quantities.

Q: How does your factory do regarding quality control?

A: We implement strict quality control: production according to technical requirements, full testing per methodology, and professional QA/QC team oversight.

Q: Do you accept OEM or ODM order?

A: Yes, we provide both OEM and ODM services tailored to customer needs.

Q: What are the terms of delivery?

A: We accept EXW, FOB, CIF, and other terms for your convenience.

Q: What is warranty?

A: Standard 12 months warranty, negotiable for longer periods.

Q: What is the packing quality?

A: Sample orders use carton boxes with sponge; batch orders use wooden boxes.

Q: How to choose product?

A: We offer standard products or customization: select from our platform, specify technical requirements, provide comprehensive specs, or explain application for suitable recommendations.
