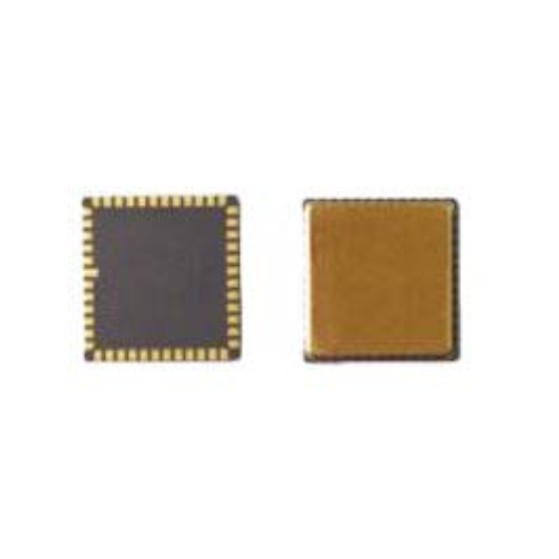

High Accuracy Fiber Optic Gyroscope Integrated with Advanced MEMS Gyro Chip

High Accuracy Fiber Optic Gyroscope Integrated with Advanced MEMS Gyro Chip

High Accuracy Fiber Optic Gyroscope Integrated with Advanced MEMS Gyro Chip

Brand Name: Firepower
Model Number: MGC500-P3
MOQ: 1
Price: negotiable
Payment Terms: T/T
Supply Ability: 500/month
Detail Information
Product Description
Detail Information
Place of Origin:
china
Product Name:
GYRO PCB
Range:
500°/s
Bias @ 25℃:
45dph
Bias Stability (10 S Smoothing:
3dph
Noise @ 10Hz:
0.0012mdps/√H
Angle Random Walk:
0.08°/√h
Bias Repeatability (Weekly Repeatability:
2dph
Scale Factor Repeatability (Weekly Repeatability):
30ppm
Packaging Details:
sponge+box
Supply Ability:
500/month
Highlight:

High Accuracy Fiber Optic Gyroscope

,

MEMS Fiber Optic Gyroscope

,

Advanced Fiber Optic Gyroscope

Product Description

High Accuracy Fiber Optic Gyroscope Integrated with Advanced MEMS Gyro Chip


Parameter MGC500 - P1 MGC500 - P2 MGC500 - P3 Unit
Range ±500 ±500 ±500 dps
Bias @ 25°C 45 45 45 dph
Noise @ 10Hz 0.0012 0.0012 0.0012 mdps/√Hz
Bias Stability (10 s smoothing) 1.0 2.0 3.0 dph
Angle Random Walk 0.08 0.08 0.08 °/√h
Bias Repeatability (Weekly) 2 2 2 dph
Scale Factor 11185 11185 11185 LSB/dps
Scale Factor Repeatability (Weekly) 30 30 30 ppm
Non - linearity @ Full Scale (FS) 100 100 100 ppm
Non - linearity @ 200 dps 50 50 50 ppm
Bandwidth ≥100 ≥100 ≥100 Hz
G - Sensitivity 3 3 3 dph/g
Vibration Rectification Coefficient @ 6.06 grms 0.3 0.3 0.3 dph/g²
Vibration Reliability
