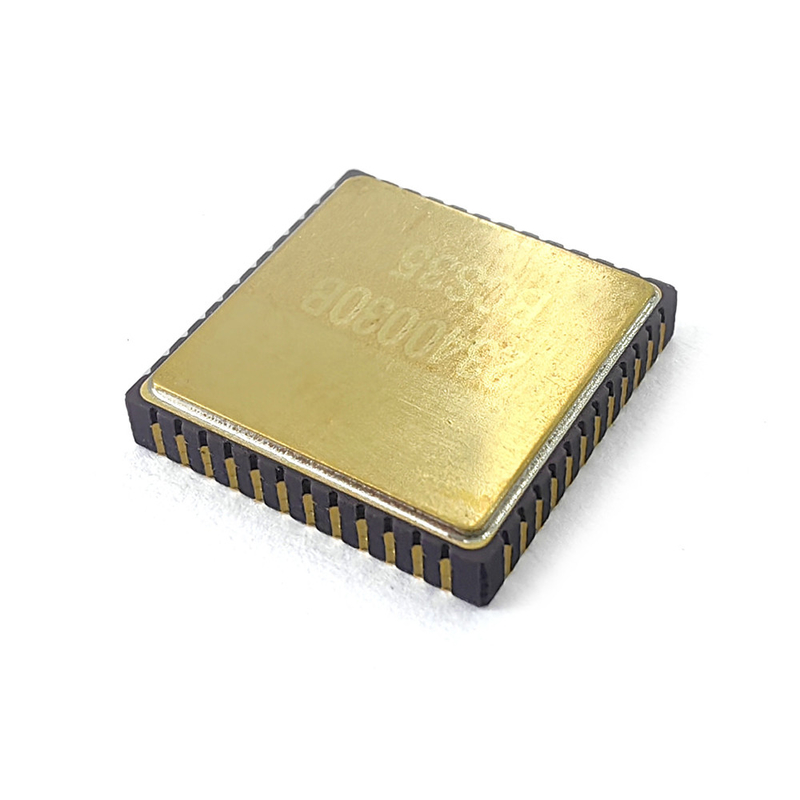

MEMS Gyro Chip with Exceptional Stability and Reliability for Inertial navigation

MEMS Gyro Chip with Exceptional Stability and Reliability for Inertial navigation

MEMS Gyro Chip with Exceptional Stability and Reliability for Inertial navigation

Brand Name: Firepower
Model Number: MGC500-P2
MOQ: 1
Price: negotiable
Payment Terms: T/T
Supply Ability: 500/month
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
CE
Measuring Range:
500dps
Bias Stability With 10 - Second Smoothing:
2.0dph
Weekly Bias Repeatability:
2dph
Weekly Scale Factor Repeatability:
30ppm
Bandwidth:
100Hz
Bias @ 25℃:
45dph
Packaging Details:
sponge+box
Supply Ability:
500/month
Highlight:

Inertial Navigation MEMS Gyro Chip

,

Exceptional Stability MEMS Gyro Chip

Product Description

MEMS Gyro Chip with Exceptional Stability and Reliability for Inertial navigation


Parameter MGC500 - P1 MGC500 - P2 MGC500 - P3 Unit
Range ±500 ±500 ±500 dps
Bias @ 25°C 45 45 45 dph
Noise @ 10Hz 0.0012 0.0012 0.0012 mdps/√Hz
Bias Stability (10 s smoothing) 1.0 2.0 3.0 dph
Angle Random Walk 0.08 0.08 0.08 °/√h
Bias Repeatability (Weekly) 2 2 2 dph
Scale Factor 11185 11185 11185 LSB/dps
Scale Factor Repeatability (Weekly) 30 30 30 ppm
Non - linearity @ Full Scale (FS) 100 100 100 ppm
Non - linearity @ 200 dps 50 50 50 ppm
Bandwidth ≥100 ≥100 ≥100 Hz
G - Sensitivity 3 3 3 dph/g
Vibration Rectification Coefficient @ 6.06 grms 0.3 0.3 0.3 dph/g²
Vibration Reliability (Power - on) 4000g, 0.5ms 4000g, 0.5ms 4000g, 0.5ms -
