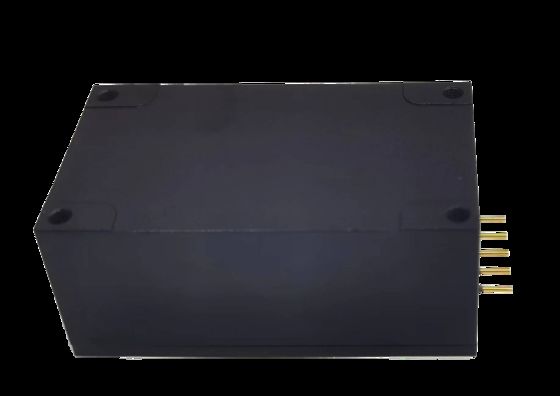

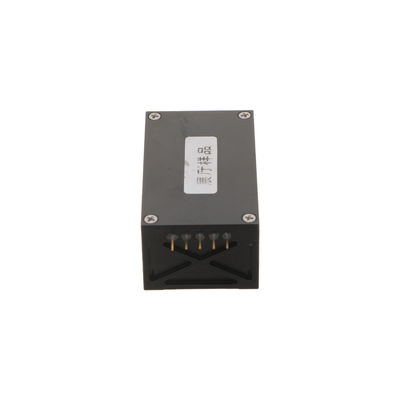

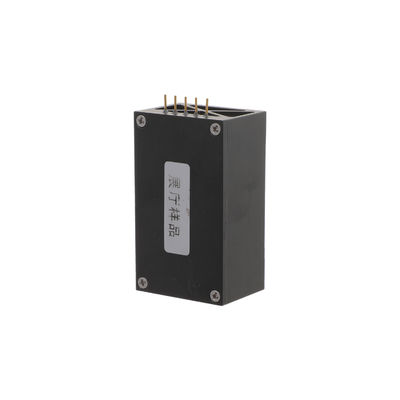

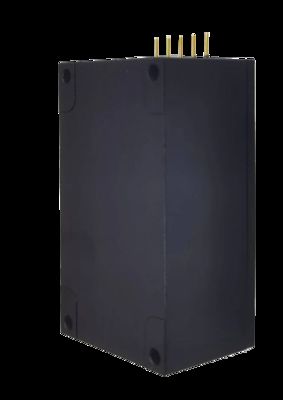

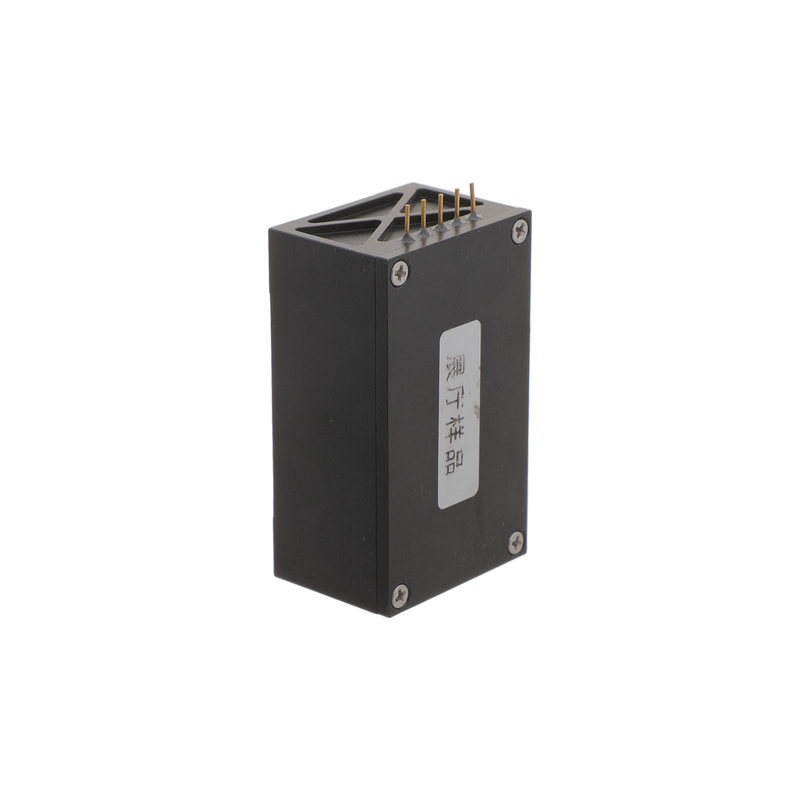

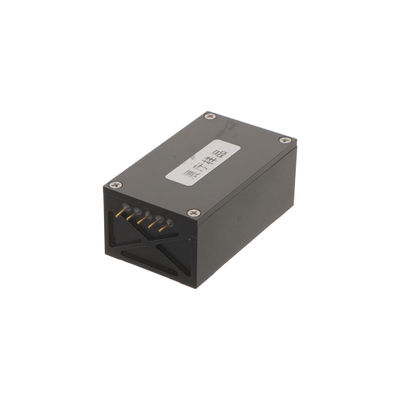

Fiber Optic Gyroscope for AHRS and Attitude Control System

Name: Fiber Optic Gyroscope for AHRS and Attitude Control System
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-095
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-095
MOQ:	1
Payment Terms:	T/T
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Measurement Range:

±150°/s

Bias Instability:

≤2°/h

Angle Random Walk:

≤0.02°/h1/2

Scale Factor:

≥10mv/o/s

Output Drive Voltage:

≥5Vpp

Power:

0.7w

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

Calibration Turntable

High Precision Turntable

Inertial Navigation System Turntable

Product Description

Fiber Optic Gyroscope for AHRS and Attitude Control System

MFOG-095 is a micro-nano fiber optic gyroscope designed for attitude control and inertial navigation. Utilizing the Sagnac effect, it delivers precise angular rate output with low drift.

Key Features

Solid-state design with lightweight construction (≤70g)
Fast startup capability
High vibration tolerance (20g, 20Hz-2000Hz)
Compatible with harsh environments
Direct replacement for Fizoptika VG095 in aerospace and defense applications

Performance Specifications

Serial number	Project	Performance indicators
1	Range (°/s)	±150
2	Scale factor (mV/°/s)	≥10
3	Zero-bias stability (10s, 1σ, °/H)	≤2
4	Zero-bias repeatability (1σ, °/H)	≤2
5	Zero bias (°/s)	≤0.05
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Start-up Time (s)	≤1
9	Power supply (V)	5+0.15
10	Power Consumption (W)	≤0.7

Mechanical Interface
