Angular Rate Sensor Micro-Nano Fiber Optic Gyro

Name: Angular Rate Sensor Micro-Nano Fiber Optic Gyro
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-091T
Price: 1217 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-091T
MOQ:	1
Price:	1217 USD
Payment Terms:	T/T,L/C,MoneyGram
Supply Ability:	100 pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

±300°/S

Scale Factor:

7±0.7mv/°/S

Zero-Bias Stability:

≤2°/H, 10s, 1σ

Zero Bias Repeatability:

≤2°/H, 1σ

Power Supply:

5±0.15V

Power Consumption:

≤0.7W

Packaging Details:

Sponge&Box

Supply Ability:

100 pcs

Highlight:

Integrated Inertial Navigation System Test Turntable

Single-Axis Motion Simulation Table

Product Description

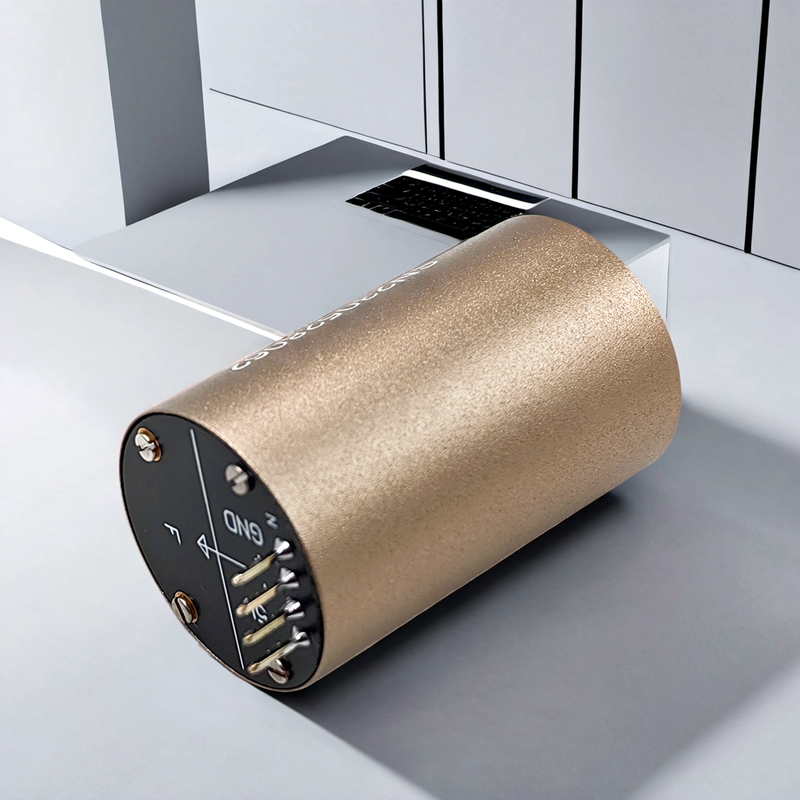

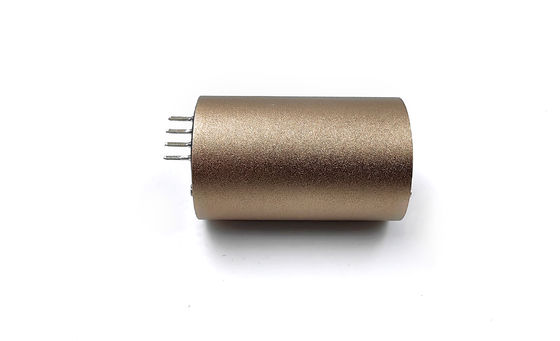

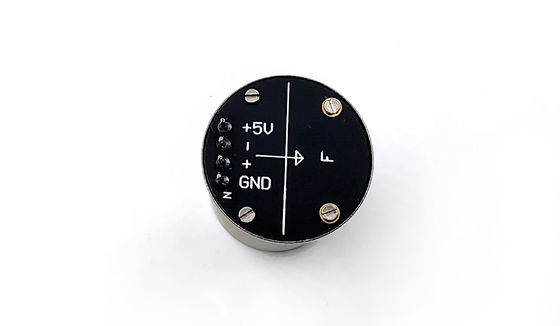

Angular Rate Sensor Micro-Nano Fiber Optic Gyro

Product Description

The MFOG-091T micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback phase differences created by counter-propagating light beams.

This product consists of optical path components, circuit components, and structural components. Key features include:

Simple structure with no moving or wear parts
Fast startup capability
Compact size and lightweight design
Ideal for carrier attitude control and measurement applications

Technical Parameters

Project	Performance indicators
Range (°/s)	±300
Scale factor	7±0.7mv/o/s
Zero-bias stability (10s, 1σ, °/H)	≤2
Zero-bias repeatability (1σ, °/H)	≤2
Angular random walk (°/H 1/2)	≤0.04
Zero bias (°/s)	≤0.05
Bandwidth 3dB Band Width (Hz)	≥1000
Power supply (V)	5+0.15
Power Consumption (W)	≤0.7
MTBF (Calculated Assessment)	60000h @ 20℃

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, established in 2013, is a high-tech enterprise specializing in R&D and production of:

Vibration acceleration sensors
MEMS gyros and IMUs
Inertial Navigation Systems (INS)
Angle testing equipment

With automated production lines in Xi'an, Shenzhen, and Zhuhai, Firepower maintains China's leading production capabilities for inertial navigation and communication products. The company focuses on scientific research and technological innovation, developing autonomous navigation products with independent intellectual property rights for civilian vehicle and ship applications.

Company Advantage

Our Services

Frequently Asked Questions

Q: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Contact us for specific lead time based on order quantities.

Q: How does your factory do regarding quality control?

A: Our quality control process includes:

Strict adherence to technical requirements
Comprehensive testing according to methodology
Professional QA/QC team oversight

Q: Do you accept OEM or ODM order?

A: Yes, we provide both OEM and ODM services tailored to customer requirements.

Q: What are the terms of delivery?

A: We accept EXW, FOB, CIF, and other delivery terms for customer convenience.

Q: What is the payment way?

A: We accept TT, L/C, Pay later, West Union, and Online Bank Payment.

Q: What is warranty?

A: Standard warranty is 12 months, negotiable for longer periods.

Q: What is the packing quality?

A: Sample orders use carton boxes with sponge, while batch orders use wooden boxes.

Q: What is final price?

A: Standard products follow price table; customized products require consultation with sales based on quantity and specifications.

Q: How to choose product?

A: Selection options include:

Standard products from our catalog
Modified technical requirements based on standard products
Custom specifications evaluated by our team
Application-specific recommendations from our sales engineers
