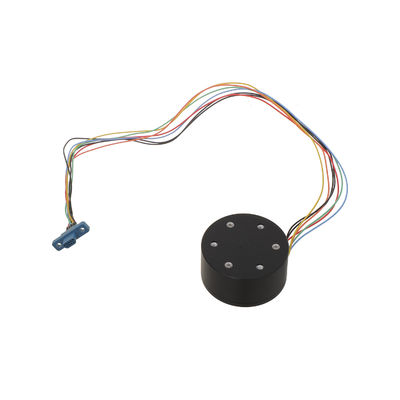

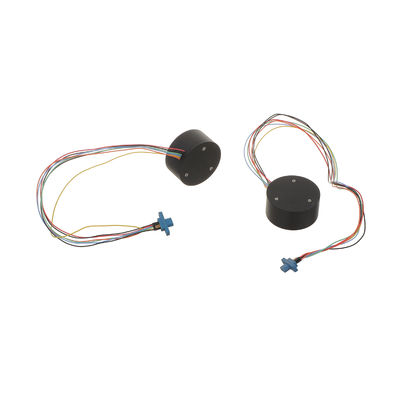

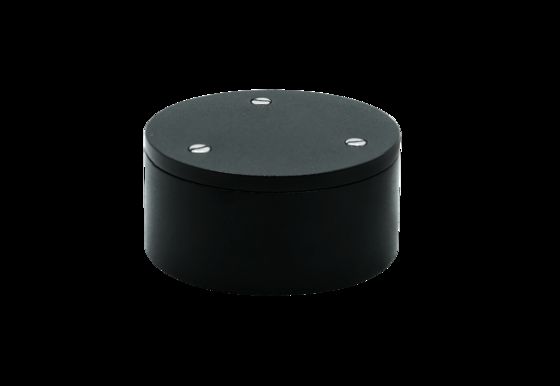

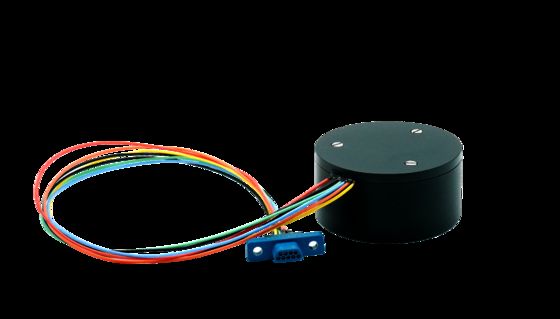

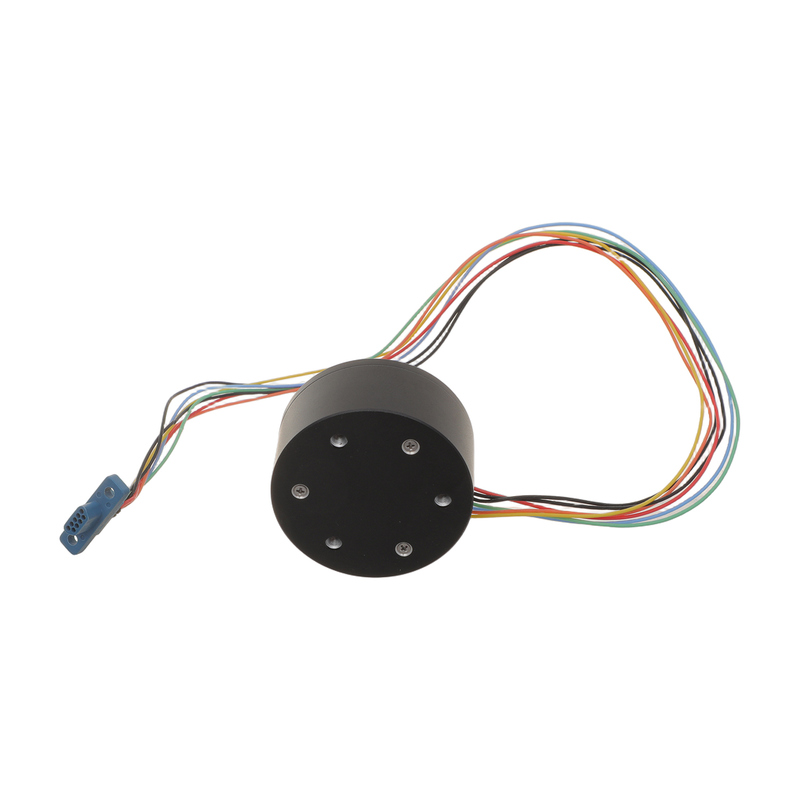

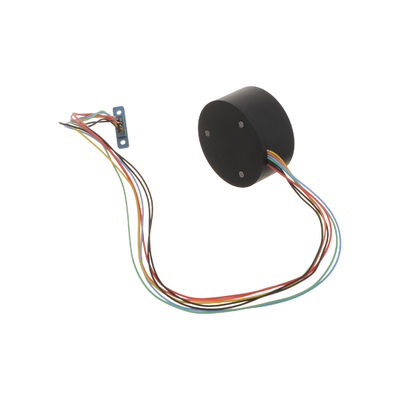

VG1703 OEM Fiber Optic Gyroscope Chip for System Integration

Name: VG1703 OEM Fiber Optic Gyroscope Chip for System Integration
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-1703
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-1703
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Zero Bias Stability:

≤1°/h

Dynamic Range:

±150deg/s

Scale Factor:

12±1.2mV/ O /s

Axis:

Weight:

40 G

Operating Temperature:

-45~+70°C

Connector:

Soldering Pin/ Pad

Supply Voltage:

+5V

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

Inertial Sensor Testing Turntable

High Speed Dual Axis Turntable

Angular Positioning Dual Axis Turntable

Product Description

VG1703 OEM Fiber Optic Gyroscope Chip for System Integration

The MFOG-1703 offers exceptional precision and long-term stability in a compact package. Leveraging micro-nano fiber technology and high-performance signal processing circuits, it accurately measures angular motion with low noise and fast response. Its solid-state design ensures outstanding reliability in harsh environments, making it ideal for navigation, mapping, and control systems.

Technical Specifications

Serial Number	Project	Performance Indicators
1	Range (°/s)	±150
2	Scale factor (mV/°/s)	12±1.2
3	Zero-bias stability (10s, 1σ, °/h)	≤1
4	Zero-bias repeatability (1σ, °/h)	≤1
5	Angular random walk (°/h^1/2)	≤0.02
6	Zero-bias temperature sensitivity (uV/°C)	≤1
7	Scale Factor Temperature Sensitivity (ppm/°C)	≤300
8	3dB Bandwidth (Hz)	≥450
9	Impact (g)	1200, 1ms, half sine
10	Power supply (V)	5 ± 0.25
11	Power Consumption (W)	≤1
12	Dimension (mm)	φ40 × 20

Weight: ≤40g

Operating temperature: -40℃ to +70℃

Storage temperature: -55℃ to +85℃

Random vibration: 20g, frequency range: 20Hz to 2000Hz
