Advanced Single-Axis Position Rate Turntable for Dynamic Testing

1
MOQ
Advanced Single-Axis Position Rate Turntable for Dynamic Testing
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Single Axis Turntable
Load Capacity: 5kg
Table Facet Size: Ø256mm
Machine Body Weight: Appr 70kg
Computer Port: RS232
High Light:

Single-Axis Position Rate Turntable

,

Advanced Position Rate Turntable

,

Dynamic Testing Position Rate Turntable

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: 1T05
Payment & Shipping Terms
Packaging Details: wooden carton
Delivery Time: 2 month
Payment Terms: T/T
Supply Ability: 1 pcs in 2 month
Product Description

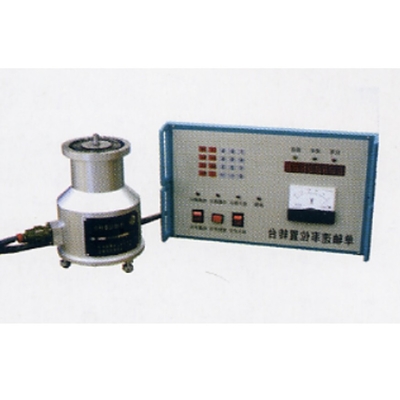

Advanced Single-Axis Position Rate Turntable for Dynamic Testing



Single axis position turntable owns angular position and angular rate functions. The control cabinet equipped with RS-232 serial port could be controlled by remote computer or by control cabinet keyboard, could control turntable state and gather data. According to customer’s test requirements, turntable is also equipped with mechanical interface and mating connector tool. It could proceed calibration and test of angular sensor.



Main feature

item High accuracy angular displacement calibrator Single axis position turntable
Load capacity 5kg
Table facet size Ø256mm
Rotary angle range Continuous infinite Continuous infinite
Working mode Automatic, position Position, rate
Machine body weight Appr 70kg
Machine body outline size 400x400x500mm
Control cabinet size 1600x488x600mm
Computer port RS232 RS232
Angular position measure accuracy ±10″ ±5″
Angular position measure resolution ±0.36″ ±0.36″
Angular position measure repeatability ±5″ ±5″
Angular control accuracy ±2″ ±2″
rate range 1°/s~10°/s 1°/s~50°/s
