products details

Home Products

Low Zero Bias Stability Micro-Nano Integrated Fiber Optic Gyroscope Small Volume Test Instrument

Brand Name:	Firepower
Model Number:	MFOG-24A
MOQ:	1
Price:	1240 USD
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

-300~+300°/S

Shock:

30g,11ms

Zero Bias Stability:

≤2.5°/H(10s,1sigma)

Power Supply:

5±0.15V

Scale Factor:

7mv/°/S

Bandwidth:

300Hz

Packaging Details:

Sponge&Box

Supply Ability:

100 pcs

Highlight:

Single-Axis Position Rate Turntable

Advanced Position Rate Turntable

Dynamic Testing Position Rate Turntable

Product Description

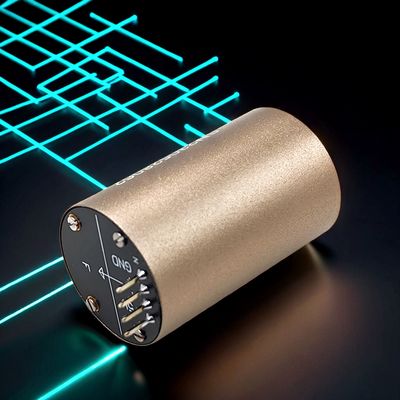

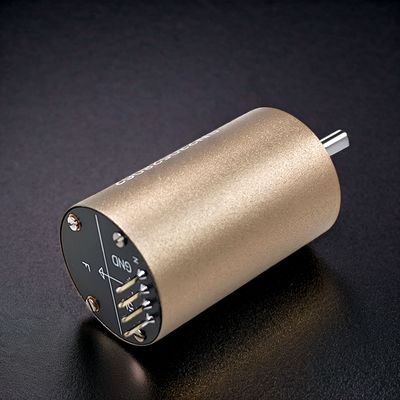

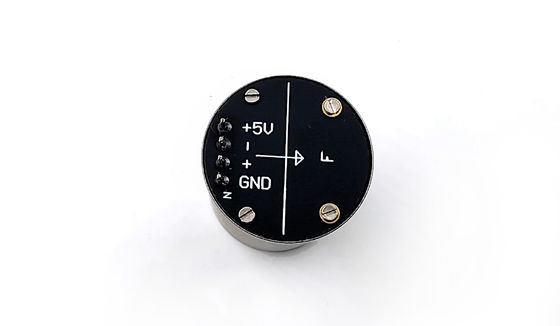

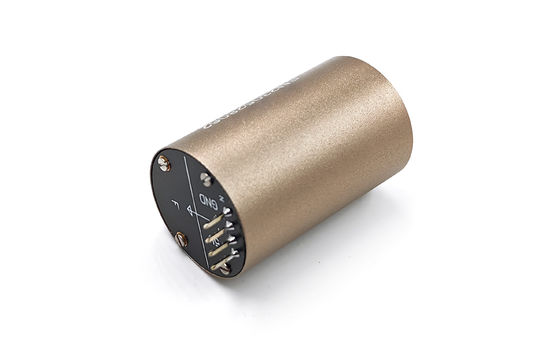

MFOG-24 Micro-Nano Fiber Optic Gyroscope

The MFOG-24 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Utilizing the Sagnac effect, it incorporates multiple micro-nano fiber devices to detect, process, and feedback phase differences between counter-propagating light beams.

Key Features

Simple structure with no moving or wear parts
Fast startup capability
Compact size and lightweight design
Ideal for carrier attitude control and measurement applications

Technical Specifications

Parameter	Value
Range	±300°/s
Scale Factor	7mv/°/s
Zero-bias stability	≤2.5°/h(10s, 1σ)
Angular random walk	0.04°/√h
Zero-bias stability at full temperature (-45 ~ +70°C)	≤2.5°/h(10s, 1σ)
3dB Bandwidth	300Hz
Power supply	5±0.15V
Power Consumption	≤1W
Working temperature	-45~+70°C
Shock resistance	≤30g, 11ms
Vibration resistance	20 ~ 2000Hz, 0.04g²/Hz
Dimensions	φ24*40mm
Weight	≤30g

Manufacturer Profile

Shenzhen Firepower Control Technology Co., Ltd, established in 2013, is a high-tech enterprise specializing in R&D and production of vibration acceleration sensors, MEMS gyros, IMUs, INS, and angle testing equipment. With automated production lines in Xi'an, Shenzhen, and Zhuhai, the company manufactures MEMS gyros, inertial navigation systems, vibration sensors, and communication products.

As an innovation-driven enterprise, Firepower possesses China's leading production capabilities for inertial navigation and communication products. The company focuses on developing autonomous navigation products with independent intellectual property rights, widely applied in civilian vehicle and ship navigation systems. Their proprietary array algorithm forms the core technology for inertial navigation products that provide precise position, attitude, and speed information for autonomous navigation control.

Company Advantages

Our Services

Frequently Asked Questions

Q: What is your lead time?

A: Stock items: 5-15 days. Non-stock items: 15-30 days after sample confirmation. Contact us for specific lead times based on order quantities.

Q: How does your factory handle quality control?

A: We implement strict quality control throughout production:

Production according to agreed technical requirements
Comprehensive testing per methodology
Professional QA/QC team oversight

Q: Do you accept OEM or ODM orders?

A: Yes, we provide both OEM and ODM services tailored to customer requirements.

Q: What are the delivery terms?

A: We accept EXW, FOB, CIF, and other standard terms.

Q: What payment methods do you accept?

A: TT, L/C, Pay later, Western Union, Online Bank Payment.

Q: What is the warranty period?

A: Standard 12 months, negotiable for extended periods.

Q: What is the packaging quality?

A: Samples: carton box with sponge. Bulk orders: wooden box.

Q: How do I select the right product?

A: We offer multiple selection methods:

Choose from our standard product catalog
Modify standard product specifications
Provide complete technical requirements
Describe your application for our recommendation
