Fizoptika VG1703 Inertial FOG Gyro Angular Rate Sensor Factory price

Name: Fizoptika VG1703 Inertial FOG Gyro Angular Rate Sensor Factory price
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-1703
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-1703
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

Fiber Optic Gyroscope

Dynamic Range:

±150°/s

Bias Stability:

≤1°/h

Scale Factor:

12±1.2 Mv/° /s

Random Walk:

≤0.02 °/√h(1σ)

Bandwidth:

≥450Hz

Dimension:

φ40X20mm

Applications:

Aircraft Flight Control And Navigation

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

Imu Testing Calibration Fixtures

High Precision Calibration Fixtures

Three-Axis Motion Simulation Rate Table

Product Description

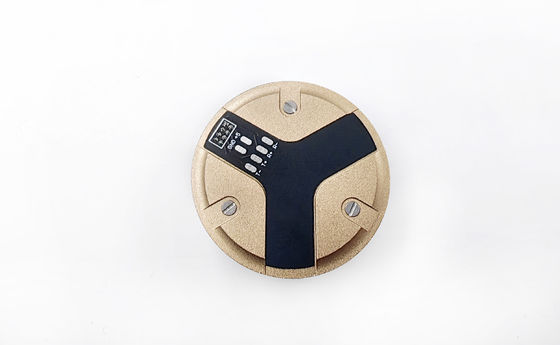

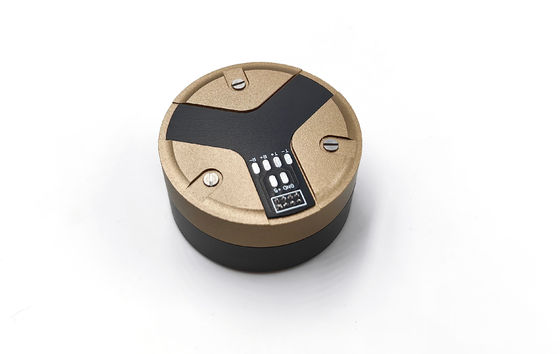

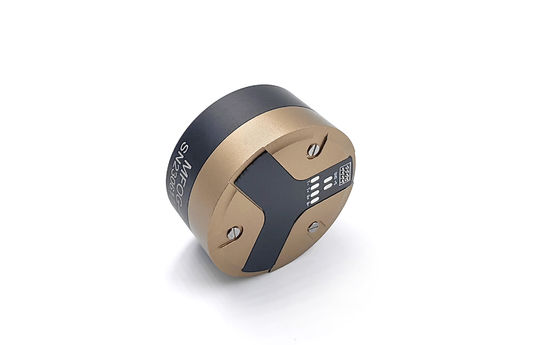

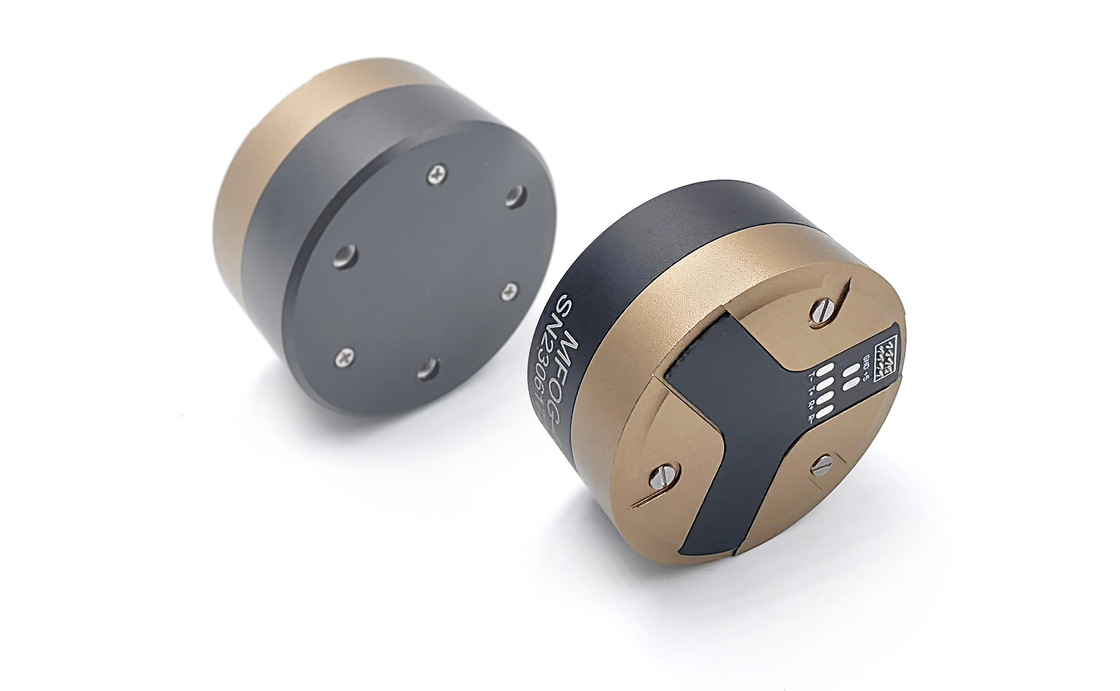

Fizoptika VG1703 Inertial FOG Gyro Angular Rate Sensor

Product Overview

The MFOG-1703 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback the phase difference between counter-propagating light beams.

Key Features

Simple structure with no moving or wear parts
Fast start-up capability
Compact size and lightweight design
Suitable for attitude control and carrier measurement applications

Product Composition

Optical path assembly
Detection and control signal circuit board
Fiber ring skeleton, housing, and structural components

Environmental Specifications

Operating Temperature: -40°C to +70°C
Storage Temperature: -55°C to +85°C
Random Vibration: 20g (20Hz to 2000Hz)

Performance Parameters

Parameter	Specification
Range (°/s)	±150
Scale factor (mV/°/s)	12±1.2
Zero-bias stability (10s, 1σ, °/h)	≤1
Zero-bias repeatability (1σ, °/h)	≤1
Angular random walk (°/h^1/2)	≤0.02
Zero-bias temperature sensitivity (μV/°C)	≤1
Scale Factor Temperature Sensitivity (ppm/°C)	≤300
3dB Bandwidth (Hz)	≥450
Impact (g)	1200, 1ms half sine
Power supply (V)	5±0.25
Power Consumption (W)	≤1
Dimensions (mm)	φ40 × 20

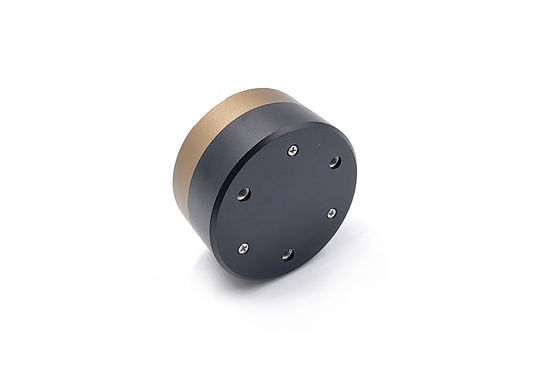

Mechanical Interface

Fizoptika VG1703 Inertial FOG Gyro Angular Rate Sensor Factory price 0
