Product Name: MEMS Inertial Navigation System
Attitude Accuracy: 0.02deg (rms)
Heading Precision: 0.1deg (rms)
Gyro Range: ±400°/s
Gyro Zero Bias Stability: ≤0.3°/h
Accelerometer Range: ±20g
Accelerometer Zero Bias Stability: ≤100µg
Interface: RS232/RS422/PPS
Power Consumption: ≤8W
Operating Temperature: -40℃~+60℃
High Light:

MEMS Inertial Navigation System

,

Inertial Navigation System for Surveying

,

Inertial Navigation System for Mapping

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Certification: CE ROHS
Model Number: GI300C
Payment & Shipping Terms
Packaging Details: sponge+carton
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 500/month
Product Description

High End GNSS Receiver MEMS Inertial Navigation System for Surveying and Mapping



Product Description



GI300C is a compact inertial navigation system with fiber optic gyroscope (FOG) and micro-electromechanical system (MEMS) accelerometers, which can use external GNSS accurate timing and positioning information for inertial/satellite integrated navigation. When the external GNSS information is invalid, the inertial navigation system has a high ability to maintain the accuracy of pure inertial navigation.



Main Application

  • Drone
  • Rocket
  • Mobile measurement
  • Detection and measurement of ground, tunnel and other tracks
  • High precision stable platform

Main Function

  • Shaking base/moving base alignment function
  • Self-seeking north
  • Outer GNSS/atmosphere multi-information fusion integrated navigation
  • Longer time accuracy retention without external information assistance
  • Support users to customize on demand



Technical Indicators



Project Test conditions Indicators
Positioning accuracy External GNSS Valid, Single Point Better than external satellite positioning accuracy
External GNSS Valid, RTK Better than external satellite positioning accuracy
Pure inertial horizontal position holding 100m/5min(CEP)
600m/10min(CEP)
2nm/30min(CEP)
Airspeed combined horizontal position hold 1nm/30min (CEP)
Heading accuracy Single antenna 0.1°
Dual antenna 0.2 °/L (L = baseline length) (RMS)
Heading holding 0.3°/30min(RMS),1°/h(RMS)
Self-north seeking accuracy 1 ° SecL, alignment 15min
Attitude accuracy GNSS is valid 0.02°(RMS)
Attitude hold (GNSS failure) 0.3°/30min(RMS),1°/h(RMS)
Speed accuracy GNSS valid, single point L1/L2 0.1m/s(RMS)
Gyro range Measuring range ±400°/s
Zero bias stability ≤0.3°/h
Accelerometer Measuring range ±20g
Zero bias stability ≤100µg
Physical dimensions and electrical characteristics Voltage 9-36V DC
Power consumption ≤8W
Interface 2-channel RS232, 1-channel RS422, 1-channel PPS (lVTTL/422 level)
Size 111mm × 72mm × 43mm (L, W, H)
Weight ≤450g
Environmental characteristics Operating temperature -40℃~+60℃
Storage temperature -45℃~+70℃
Vibration 5 ~ 2000Hz, 6.06 G (with shock absorber)
Impact 30g, 11 ms (with shock)
Life span > 15 years
Continuous working time >24h
Note:

① The alignment is valid;

② For airborne use, there is a turning maneuver before the airspeed combination, and the test takes the  flight speed of 150km/H as an example;

③ On-board conditions, need to be mobile;

④ Two-position alignment, the heading difference between the two positions is greater than 90 degrees



Product Stuucture



High End GNSS Receiver MEMS Inertial Navigation System for Surveying and Mapping 0

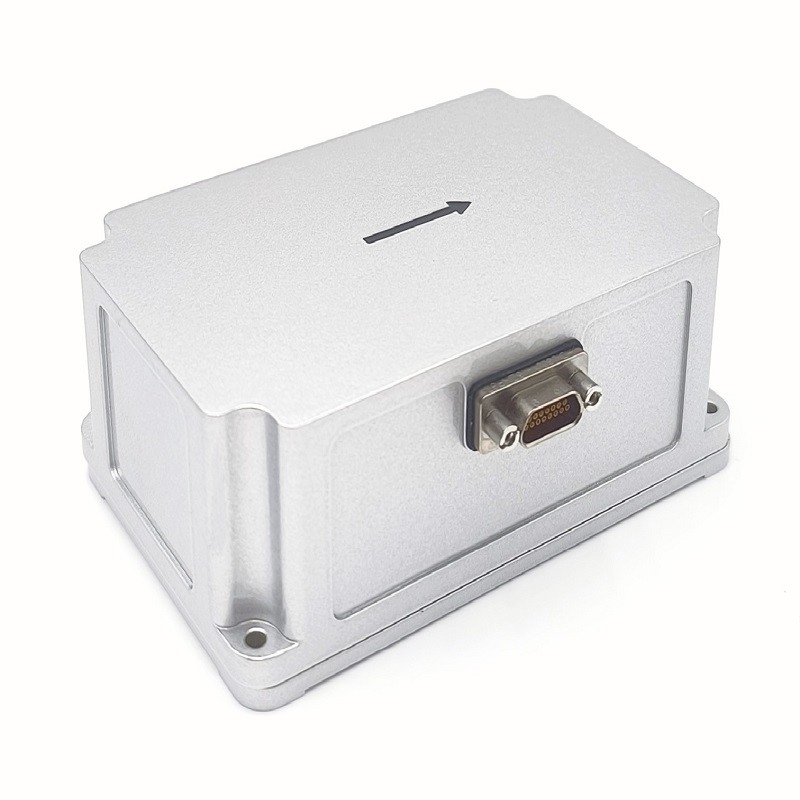

                       L111mm x W72mm x H42.8mm(L x W x H)



High End GNSS Receiver MEMS Inertial Navigation System for Surveying and Mapping 1High End GNSS Receiver MEMS Inertial Navigation System for Surveying and Mapping 2
