70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber

70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber

70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber

Brand Name: Firepower
Model Number: 3KTD-820
MOQ: 1
Price: negotiable
Payment Terms: L/C, T/T
Supply Ability: 10 pcs/5 months
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Product Name:
Three Axis Motion Simulator
Load Capacity:
70kg
Load Max Size:
760mm X 760mm X 760mm
Angular Position Measurement Accuracy:
±3.6''
Axes Perpendicularity:
±2''
Wobble Error:
±2''
Max Angle Acceleration:
300°/s²
Computer Port:
RS232
Packaging Details:
Wooden box
Supply Ability:
10 pcs/5 months
Highlight:

70kg Payload Three Axis Turntable

,

Three Axis Motion Simulation Rate Turntable

,

Thermal Chamber Three Axis Turntable

Product Description

70kg Payload Three Axis Motion Simulation Rate Turntable with Thermal Chamber



Product Description



  The system is mainly used to test and calibration of inertial device and system, also it could do kinds of simulation test, it belongs to the relative big category of electric-driven three free axis turntable. The working mode could be electric control cabinet manual control and upper computer remote control. It provide dynamic linkbase, user could set the simulation program by himself. And it provide high speed USB communication interface connection.



Product Paremeters



Load capacity 70kg
Max measured object size 760mm x 760mm x 760mm
Wobble error ±2''
Axis perpendicularity ±2''
Outer frame north leading device rectangular prism
Three axis intersection point radius <0.25mm
Conductive slip rings 80 rings/3A
Angular position measure accuracy ±3.6''
Angular position measure resolution 0.36''
rate range Outer ring: 0.01°/s~100°/s
Mid ring: 0.01°/s~30°/s
Inner ring: 0.01°/s~30°/s
rate accuracy and stability
 		 5x10-5(360° average)
3x10-4(10° average)
1x10-3(1° average)
Max angle acceleration 300°/s2
Control system bandwidth 10Hz



Product Display

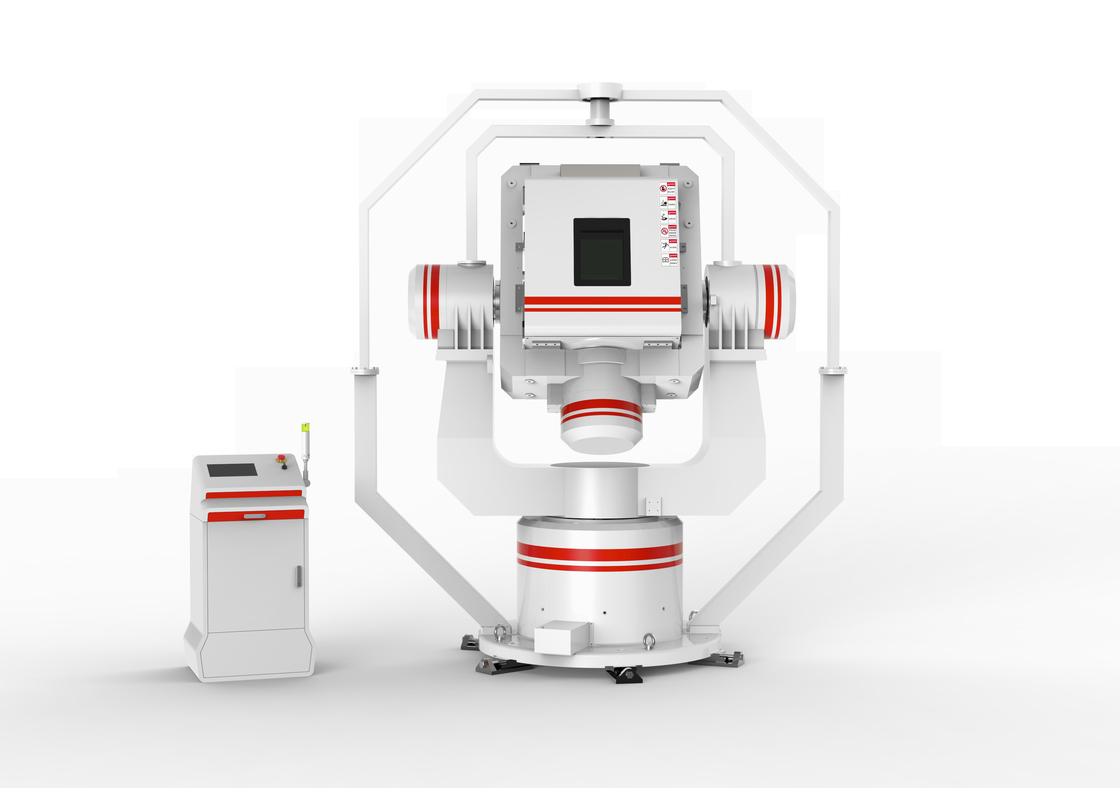

70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber 0

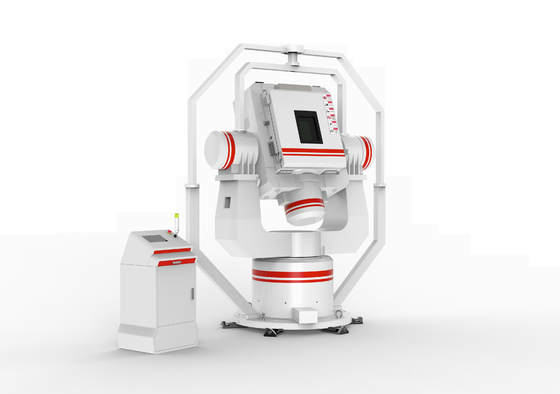

70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber 1



Main Application Field

70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber 2



About company



70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber 3

Factory Photos
70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber 4
70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber 5
70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber 6
70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber 7
70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber 8
70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber 9
70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber 10
70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber 11

70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber 12

70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber 13

70kg Payload Three Axis Motion Simulation Rate Turntable With Thermal Chamber 14
