High Precision Navigation Grade Fiber Optic Gyroscope FOG VG103

Name: High Precision Navigation Grade Fiber Optic Gyroscope FOG VG103
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-103
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-103
MOQ:	1
Price:	negotiable
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Range:

±350°/s

Zero-bias Stability:

≤1°/h

Zero-bias Repeatability:

≤1°/h

3dB Bandwidth:

≥1000Hz

Random Walk:

≤0.02° /√h

Impact:

≥1500g

Packaging Details:

Wooden box

Supply Ability:

1000pcs

Highlight:

70kg Payload Three Axis Turntable

Three Axis Motion Simulation Rate Turntable

Thermal Chamber Three Axis Turntable

Product Description

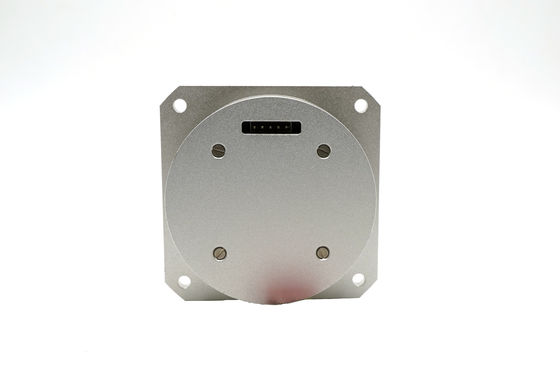

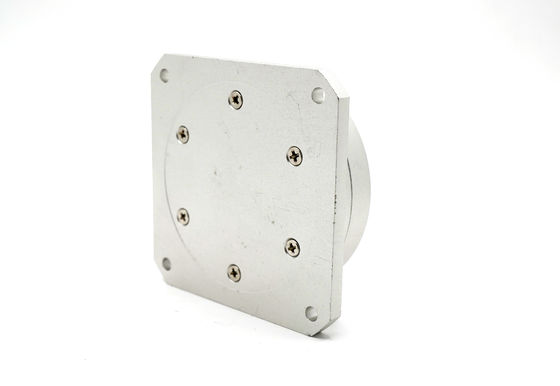

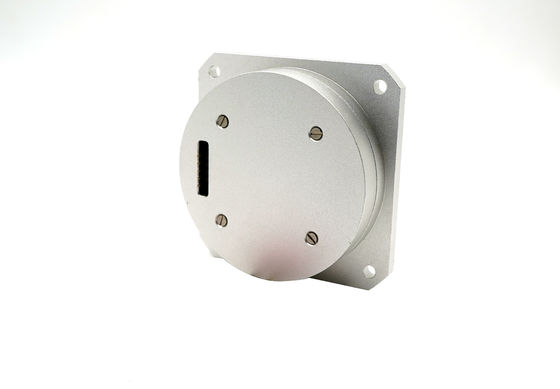

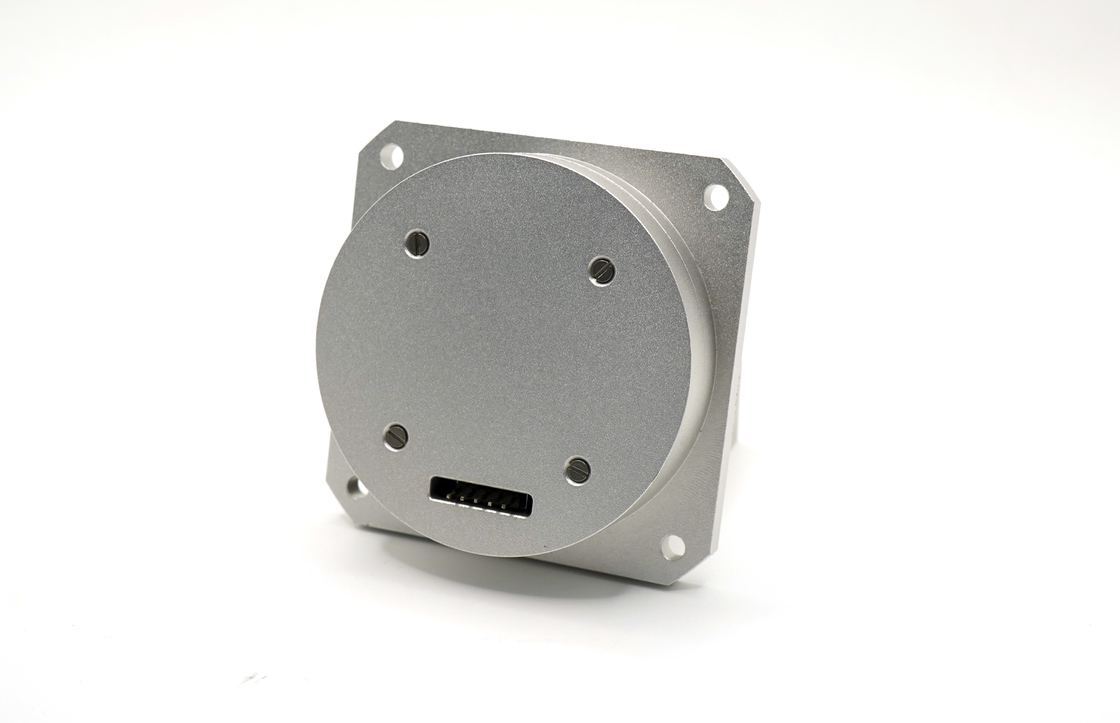

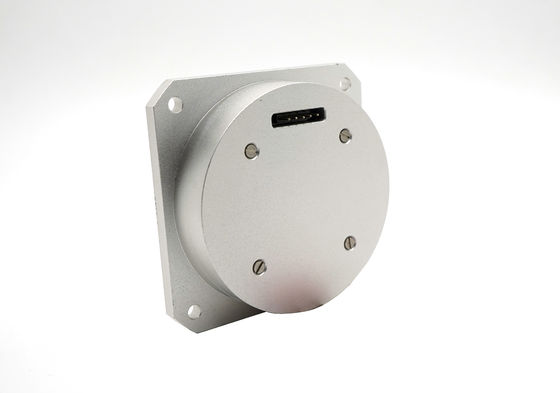

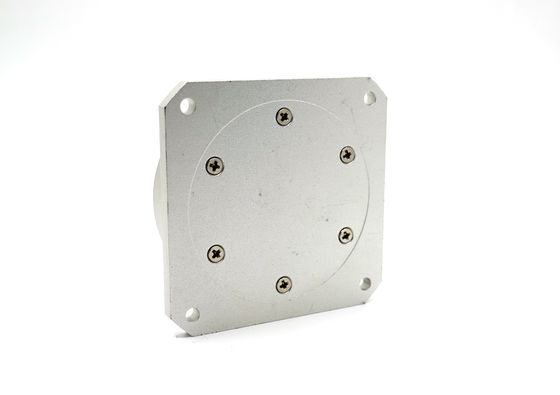

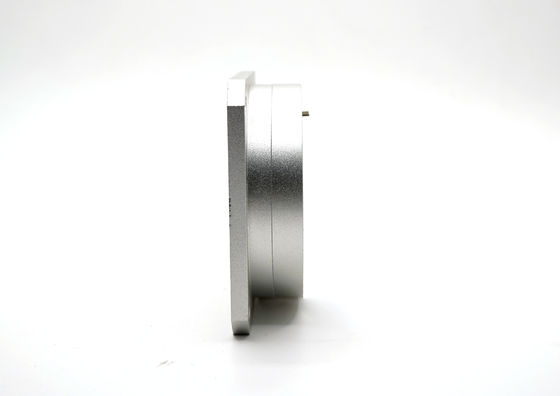

High Precision Navigation Grade Fiber Optic Gyroscope FOG VG103

Product Overview

The MFOG-103 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Utilizing the Sagnac effect, it incorporates multiple micro-nano fiber devices to detect, process, and feedback phase differences generated by counter-propagating light beams.

This product consists of optical path components, circuit components, and structural components. It features a simple design with no moving or wear parts, fast startup, compact size, and lightweight construction. Ideal for attitude control and measurement applications in various carrier systems.

Product Composition

Optical path assembly
Detection and control signal circuit board
Fiber optic coil skeleton, shell, and other structural components

Key Specifications

Weight: ≤80g

Operating Temperature: -40℃ to +70℃

Storage Temperature: -55℃ to +85℃

Random Vibration: 20g (20Hz to 2000Hz frequency range)

Main Performance Parameters

Serial Number	Project	Performance Indicators
1	Range (°/s)	±350
2	Scale factor (mV/°/s)	6±0.6
3	Zero-bias stability (10s, 1σ, °/H)	≤1
4	Zero-bias repeatability (1σ, °/H)	≤1
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Power supply (V)	5+0.25
9	Power Consumption (W)	≤1
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Service Life (years)	≥15
13	MTBF	≥100000

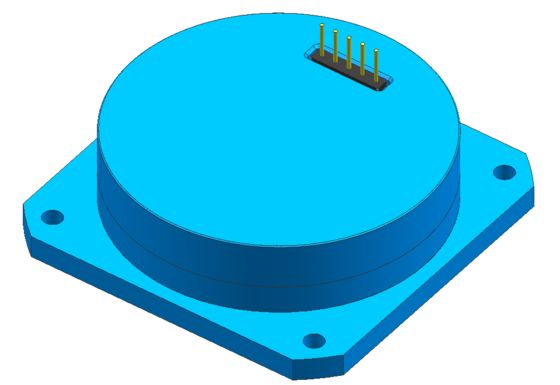

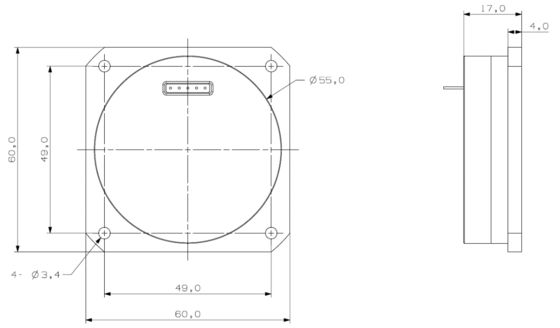

Installation Dimensions
