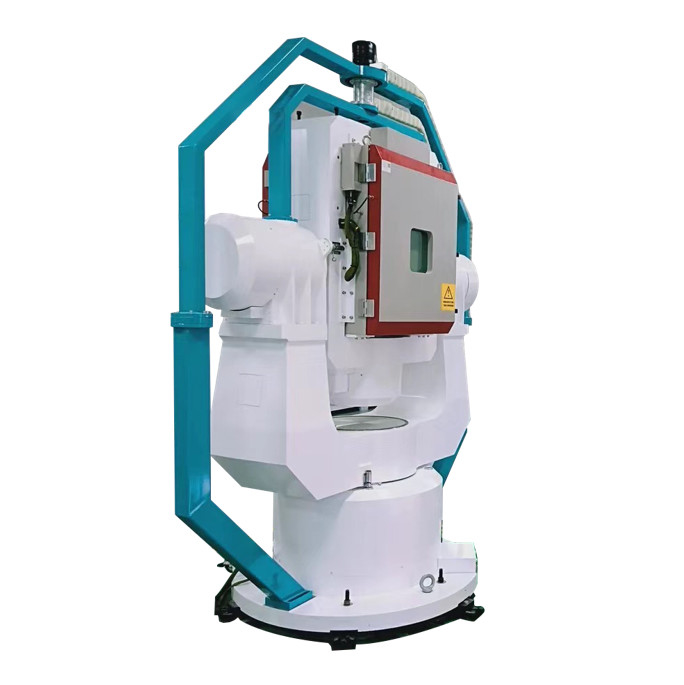

35kg Payload Three Axis Tracking Turntable with Thermal Control
Product Description
High accuracy multi-functional angle measuring instrument could apply to dual axis multi-functional test. During the production of navigation system, it could work as a dedicated calibration and test instrument for scale factor, zero drift, successive start repeatability and long-term stability etc error signal.
Main Paremeter
| Load capacity | 35kg |
| Table facet diameter | Ø450mm |
| Wobble error | ≤±5'' |
| Rotary angle range | Continuous infinite |
| Axes perpendicularity | <±5'' |
| Working mode | Inner loop: positioning, rate, vibration Outer loop: positioning(manual) |
| Table body weight | 450kg |
| Table body outline size | Appr 700mm x 620mm x 900mm |
| Slip rings | 40 rings |
| Computer port | RS232, USB |
| Angular position measure accuracy | ±5'' |
| Angular position measure repeatibility | ±3″ |
| Angular position resolution | 0.36'' |
| Angular position control accuracy | ±3″ |
| rate range | 0.001°/s~±200°/s |
| rate accuracy and smoothness ω≥10°/s 10°/s≥ω≥1°/s 1°/s≥ω |
5x10-5 1x10-4 8x10-4 |
| Vibration frequency | 0.01Hz~10Hz |
| Vibration amplitude | ±0.001°~±45° |
| Vibration distortion degree | ≤3% |

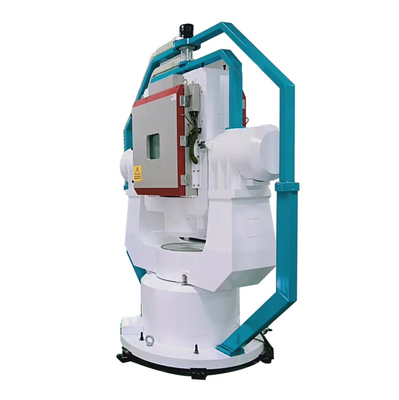

Product Display
Main Applications
Factory photos
FAQ
Q1. What is your lead time?
A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities.
Q2. How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end:
1) We produce product according agreed technical requirements strictly;
2) We do full tests according to test methology;
3) We have a professional QA/QC team to ensure the quality.
4) We provide test report to customer to confirm before shipment;
5) If any unit was confirmed by customer and us not consistent with agreed specification or test report, we accept replacement/return/refund till customer's acceptance.
Q3. Do you accept OEM or ODM order?
A: Yes, we are a professional manufacturer that can provide OEM and ODM services according to customer needs
Q4. What are your terms of delivery?
A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you.
Q5. What is the payment way?
A: TT, L/C, Pay Later, West Union,Online Bank Payment.
Q6. What is warranty?
A: Standard 12 months and negotiable for longer warranty.
Q7. What is the packing quality?
A: For sample order, we use carton box with sponge, and batch order, we use wooden box.
Q8. What is final price?
A: If standard product, price as in the price table, if customized product, price by checking with sales, so as to different qty needs.
Q9. How to choose product?
A: We are a professional manufacturer that can provide standard product on shafe, or products by customer's specific requirements;
1) Customer raise some certain different technical requirements based on standard products;
2) Customer provide specific and comprehensive technical requirements to sales to evaluate;
3) Customer explain application to sales to provide suitable products;
