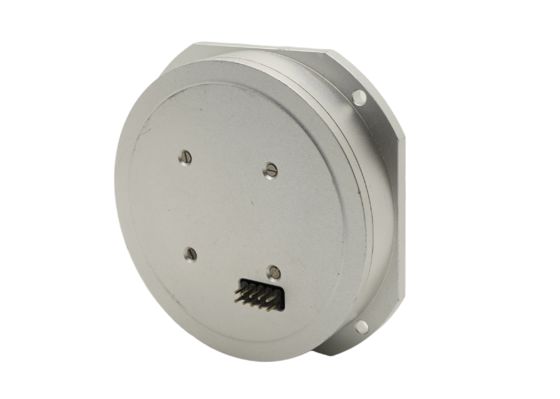

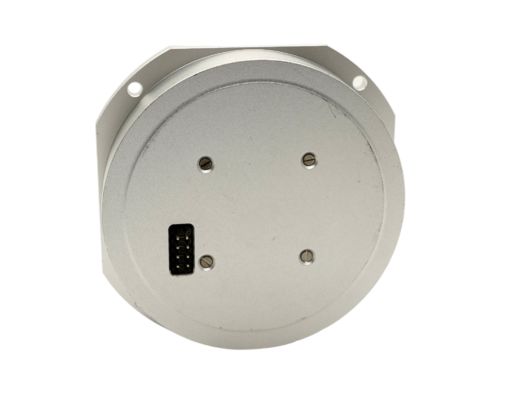

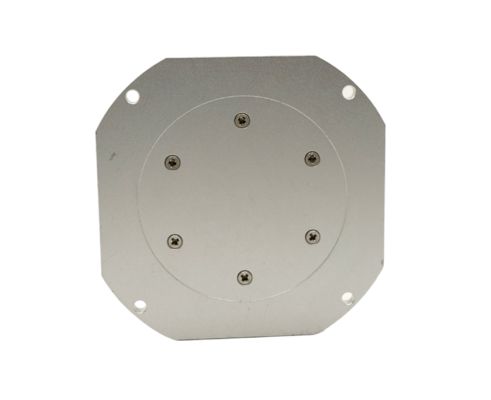

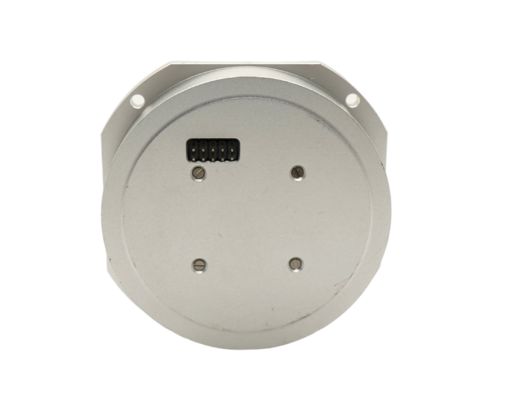

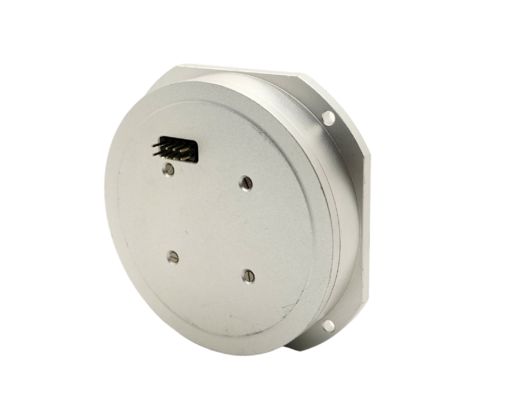

Open Loop Single Axis Fibre Optic Gyroscope VG910 FOG Sensor

Name: Open Loop Single Axis Fibre Optic Gyroscope VG910 FOG Sensor
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-910
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	500pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Range:

±240°/s

Bias Stability:

≤0.8°/h

Zero-bias Repeatability:

≤0.8°/h

Random Walk:

≤0.02o /√ H

Impact:

≥1500g

Acceleration:

≥70g

Packaging Details:

Wooden Box

Supply Ability:

500pcs

Highlight:

35kg Payload Tracking Turntable

35kg Payload Three Axis Turntable

Thermal Control Three Axis Turntable

Product Description

Open Loop Single Axis Fibre Optic Gyroscope VG910 FOG Sensor

Product Overview

The MFOG-910 is a high-performance angular rate sensor based on the Sagnac effect, integrating optical, mechanical, and electronic systems in a compact, solid-state design. It uses micro-nano fiber technology to detect angular velocity with high precision and stability.

No moving or wearing parts ensures excellent reliability
Fast startup with low noise operation
Compact size and light weight for easy integration
Ideal for attitude control and motion measurement in UAVs, vehicles, and stabilized platforms
Fully compatible replacement for the Fizoptika VG910

Composition

The product consists of three main components:

Optical path assembly
Detection and control signal circuit board
Optical fiber coil skeleton, shell and other structural parts

Appearance and Dimensions

Overall dimensions: 82mm * 82mm * 19.5mm (without plug)

Outline drawing of MFOG-910 micro-nano fiber optic gyroscope

Weight

≤150g

Operating Temperature

-40℃ to +70℃

Storage Temperature

-55℃ to +85℃

Random Vibration

20g, frequency range: 20Hz to 2000Hz

Main Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±240
2	Scale factor (mV/°/s)	47±5
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, °/H)	≤0.8
5	Zero-bias repeatability (1σ, °/H)	≤0.8
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Power supply (V)	5±0.25+12
9	Power Consumption (W)	≤1.5
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Life (years)	≥15
13	MTBF	≥100000
