products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Inertial Navigation System
Created with Pixso.

High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation

High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation

High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation

Brand Name: Firepower
Model Number: INS600
MOQ: 1
Price: negotiable
Payment Terms: L/C, T/T
Supply Ability: 500/Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Gyro Range:
±400°/s
Gyro Bias Stability:
≤0.3°/h
Accelerometer Range:
±16g
Accelerometer Bias Stability:
≤100ug
Heading Accuracy:
0.2 °/L (RMS)
Attitude Accuracy:
0.05°(RMS)
Interface:
1 Channel 422/232/CAN/PPS
Weight:
≤1kg
Packaging Details:
Sponge/Box
Supply Ability:
500/Month
Highlight:

Marine Navigation Inertial Navigation System

,

Rtk Antenna Inertial Navigation System

,

High Heading Accuracy Inertial Navigation System

Product Description

High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation





Product Description



The INS600 integrated navigation system is a compact dual-axis rotating MEMS integrated navigation system. Through the realization of multi-sensor fusion and navigation calculation algorithm, it meets the requirements of precise measurement of attitude, heading, position and other information in the application fields of medium and high-precision mobile measurement systems, large unmanned aerial vehicles and so on.



Technical parameters



Project
Test conditions
Indicators
Positioning accuracy
GNSS Valid, Single Point
Better than satellite positioning accuracy
GNSS Valid, RTK
Better than satellite positioning accuracy
Pure inertial horizontal positioning holding
4nm/60min(CEP)
1nm/30min(CEP)
200m/6min(CEP)
Heading accuracy
Dual antenna
0.2 °/L (RMS)
Heading holding
0.05°/30min(RMS),0.1°/h(RMS)
Self-north seeking accuracy
0.3 ° SecL, alignment 15 min
Attitude accuracy
GNSS is valid
0.05°(RMS)
Attitude hold (GNSS failure)
0.05°/30min(RMS),0.1°/h(RMS)
Gyroscope
Measuring range
±400°/s
Zero bias stability
≤0.3°/h
Accelerometer
Measuring range
±16g
Zero bias stability
≤100µg

Physical dimensions and electrical characteristics
Voltage
10-36V DC
Power consumption
≤9W
Interface
2-route RS232, 1-route RS422, 1-route PPS (LVTTL/422 level)
Size
110mm × 94mm × 94mm (L, W, H)
Weight
≤1kg

Environmental characteristics
Operating temperature
-40ºC+65ºC
Storage temperature
-45ºC+70ºC
Vibration
20~2000Hz,6.06g
Impact
30g,11ms
Life span
> 15 years
Continuous working time
>24h
Note:
* The alignment is valid;
* 10 s average;
* With shock absorption

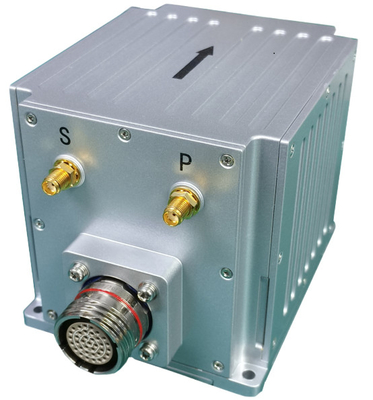

Detailed photo



High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation 0

High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation 1



Dimension



High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation 2



Factory Photos
High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation 3
High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation 4
High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation 5
High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation 6
High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation 7
High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation 8
High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation 9
High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation 10



Payment & Shipping





High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation 11

High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation 12

High Heading Accuracy Gnss Gps Module Rtk Antenna Inertial Navigation System for Marine Navigation 13
