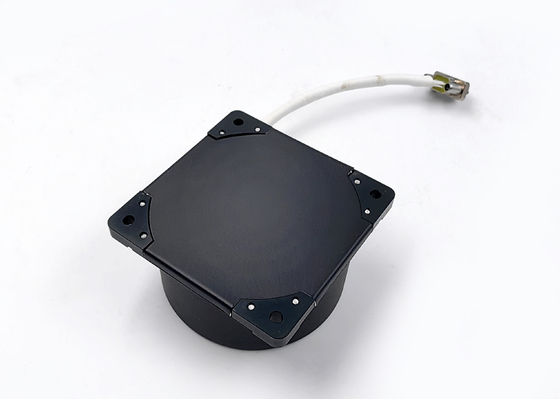

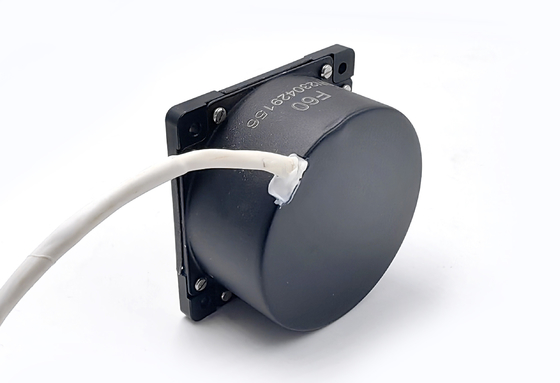

Small Size Close-Loop Fiber Optic Gyroscope Zero Bias Stability 0.2~0.8°/

Name: Small Size Close-Loop Fiber Optic Gyroscope Zero Bias Stability 0.2~0.8°/
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: F60A
Price: 2.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	F60A
MOQ:	1 pcs
Price:	US$2,500.00-3,500.00
Payment Terms:	L/C, T/T
Supply Ability:	500 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

Measuring Rsnge:

±400~±800(optional)

Zero Bias Stability:

≤ 0.05°/h, 10s

Zero Bias Repeatability:

≤ 0.05°/h

Random Walk Coefficient:

≤0.006º/√h

Scale Factor Nonlinearity:

≤50ppm

Scale Factor Repeatability:

≤50ppm

Scale Factor Asymmetry:

≤50ppm

Start Time:

≤1s

Bandwidth:

500Hz

Power Supply:

±5±0.15V

Power:

≤6W

Operating Temperature:

-40~+70°C

Storage Temperature:

-55~+85°C

Vibration:

20~2000Hz, 0.06g²/Hz

Impact:

30g, 11ms

Baud Rate:

921600(Customizable)bps

Output Mode:

RS-422

Connector:

J30J-15TJL/(Customizable)

Overall Dimensions:

60mm*60mm*32mm

Installation Dimensions:

52mm*52mm

Packaging Details:

Sponge and box

Supply Ability:

500 pcs per month

Highlight:

Small Size Fiber Optic Gyroscope

Close-Loop Fiber Optic Gyroscope

Product Description

Basic Info.

Model NO.

F60

Measuring Shaft Quantities

Single

Accuracy Grade

≤0.05°/H

IP Rating

IP67

Certification

Customized

Non-Linearity Scale Factor

<50ppm (1sigma;)

Scale Factor Asymmetry

<50ppm

Scale Factor Repeatability

<50ppm

Dynamic Range

300 Deg;/S

Zero Bias Stability

<0.05 Deg;/H (1sigma;)

Bandwidth

>200Hz

Transport Package

Sponge and Box

Specification

70mm× 70mm× 32mm

HS Code

9031809090

Production Capacity

500/Month

Product Description

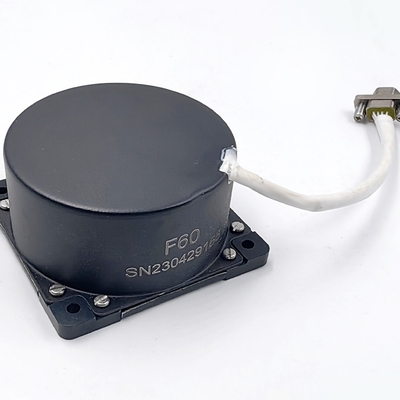

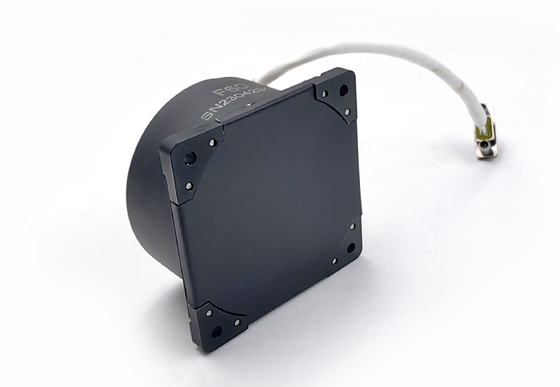

Single Axis Optical Sagnac Effect GyroInertial Angular Rate Fog Gyroscope

This document specifies the requirements and methods for the use and maintenance of FOG-60 fiber optic gyroscope (product for short).
Product introduction
1 Working principle, function and scope of application of the produc
1.1 How it works This product is an inertial angular rate sensor based on the optical Sagnac effect, which is used to measure the angular rate of the carrier along the sensitive axis of the product. The angular rate sensing unit of the product is an optical fiber ring, and a digital closed-loop detection circuit is adopted to extract the optical path difference of clockwise and anticlockwise propagating light caused by the external physical angular rate, which is sensed by the optical fiber ring,At the same time, the voltage signal converted from the optical path difference signal is used for closed-loop feedback and control to realize the modulation and demodulation of the signal and achieve the purpose of angular velocity signal detection.
1.2 Function This product is composed of an optical angular velocity sensing unit and a signal detection unit, providing single-axis angular increment information and internal temperature information.
1.3 Scope of application The products are mainly suitable for applications such as medium-precision inertial navigation systems, positioning and orientation systems, and servo stabilization systems.
2 Composition The main components of the product are as follows: a) The optical path unit comprise an SLD light source, an optical fiber re, an integrated optical phase modulator, an optical fiber coupler and an optical detector; b) The circuit unit comprises a light source driving circuit and a detection and control signal circuit board; c) Gyroscope structural parts.

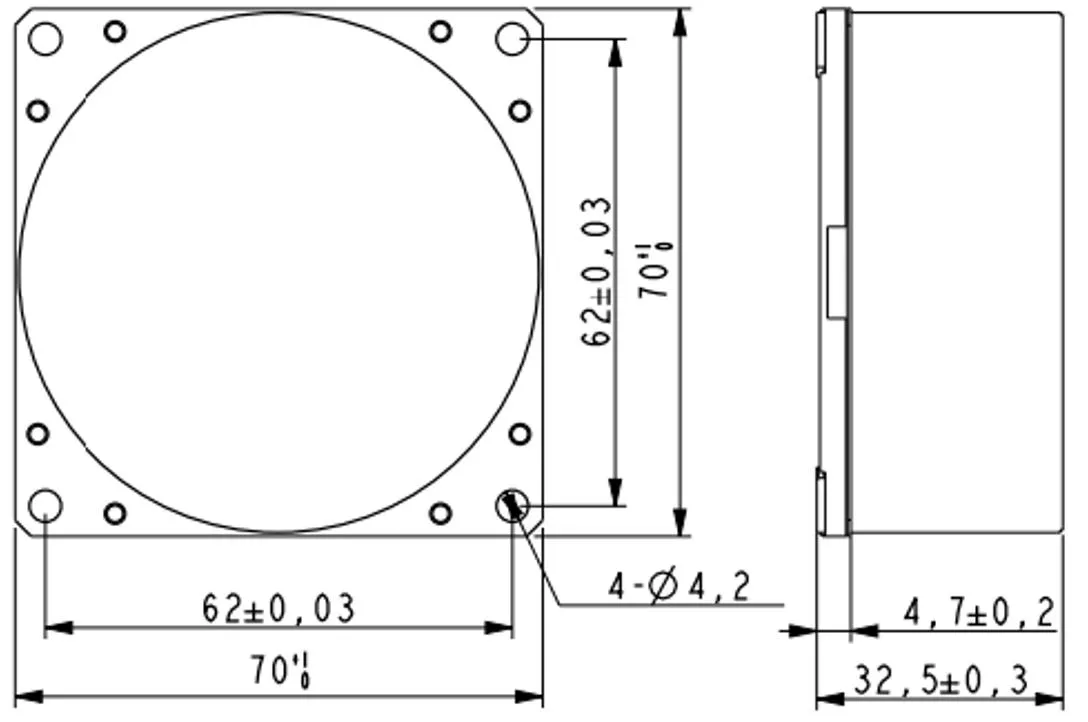

3 Appearance and installation dimension Overall dimension (mm): (60 ± 0.1) × (60 ± 0.1) × (31 ± 0.1) (L × W × H); Installation dimension (mm): (50 ± 0.1) × (50 ± 0.1) (L × W), Φ3.2mm × 4,
such asFigure 1 As shown.

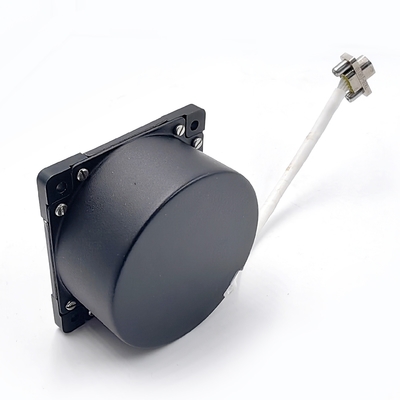

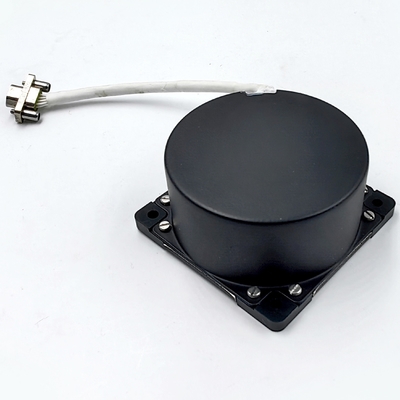

Single Axis Optical Sagnac Effect Gyroinertial Angular Rate Fog Gyroscope

Main performance
parameters See the main performance parameters of the product for details.
Table 1 Main performance parameters

Serial number	Test item	Unit	Technical requirements
1	Overall dimensions	mm	60×60×31
2	Start time	s	5
3	Zero bias stability (10 s smoothing, 1σ)	º/h	≤0.1
4	Zero-bias repeatability	º/h	≤0.1
5	Random walk coefficient	º/h1/2	≤0.01
6	Scale factor nonlinearity	ppm	≤50
7	Scale factor repeatability	ppm	≤50
8	Operating temperature	ºC	-40~+700
9	Storage temperature	ºC	-50~+70
10	Dynamic range	(°)/s	±1000
11	Supply voltage	V	+5
12	Steady-state power consumption	W	<4

Power requirements

Serial number	Name	Request
1	Power supply accuracy	±5%
2	Power ripple (Vpp)	20mV
3	Supply current	>1.5A

Electrical connection interface

Core point number	Definition	Comment
1	+5V	Power supply input
2	GND	Power ground
3	--	Reserved
4	RXD+	Gyro differential sorting and correcting
5	TXD+	Gyro RS422 output positive
6	+5V	Power supply input
7	GND	Power ground
8	RXD-	Gyro differential gating negative
9	TXD-	Gyro RS422 output negative
