Name: High Performance Close-loop Fiber Optic Gyroscope With Small Volume
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: F60B
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Measuring Range: ±400~±800°/s (optional)

Zero Bias Stability: ≤0.1°/h, 10s

Zero Bias Repeatability: ≤0.1°/h

Random Walk Coefficient: <0.01°/√h

Scale Factor Nonlinearity: ≤60ppm

Scale Factor Repeatability: ≤60ppm

Scale Factor Asymmetry: ≤60ppm

Start Time: ≤1s

Bandwidth: 500Hz

Power Supply: ±5±0.15V

Power: ≤6W

Operating Temperature: -40~+70°C

Storage Temperature: -55~+85°C

Vibration: 20~2000Hz, 0.06g²/Hz

Impact: 30g, 11ms

Baud Rate: 921600 (Customizable) Bps

Output Mode: RS-422

Connector: J30J-15TJL/(Customizable)

Overall Dimensions: 60mm*60mm*32mm

Installation Dimensions: 52mm*52mm

Highlight:

Close-loop Fiber Optic Gyroscope

Small Volume Fiber Optic Gyroscope

High Performance Fiber Optic Gyroscope

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: Firepower

Certification: CE

Model Number: F60B

Payment & Shipping Terms

Packaging Details: Sponge and box

Delivery Time: 1 week for sample

Payment Terms: T/T

Supply Ability: 500 pcs per month

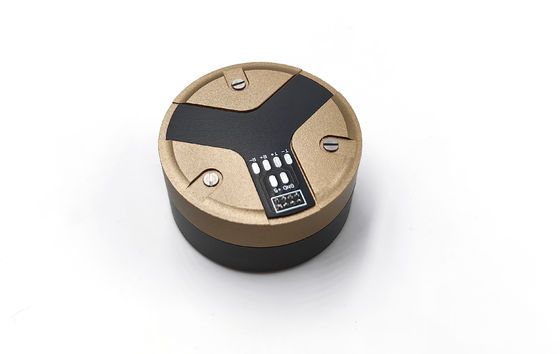

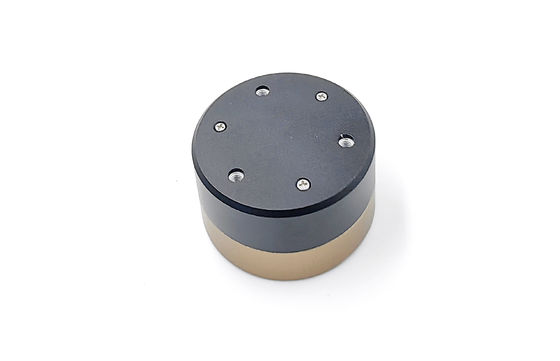

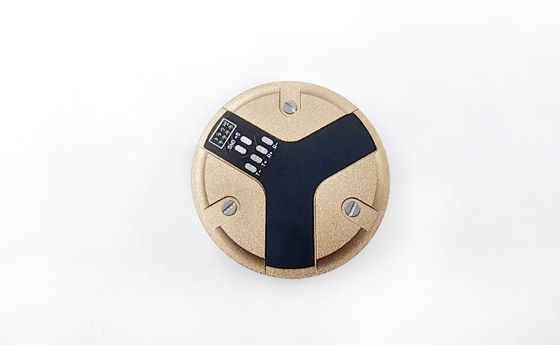

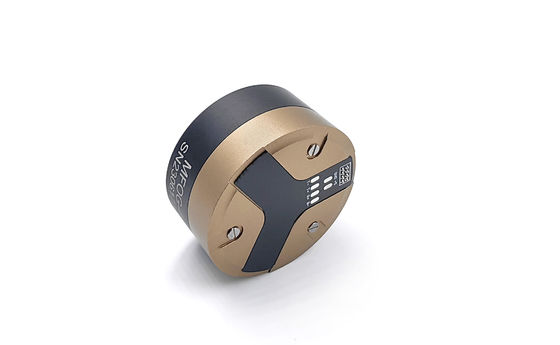

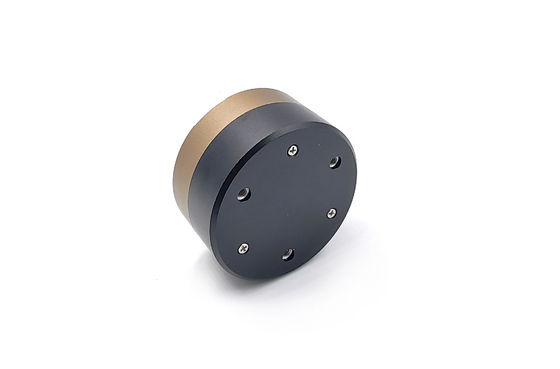

Gallery

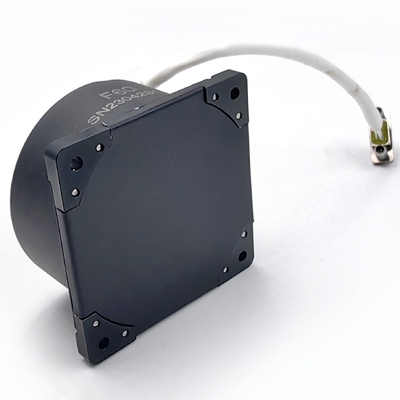

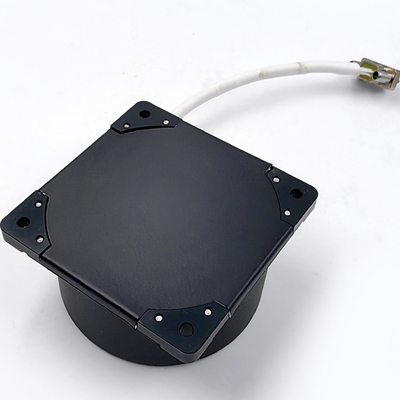

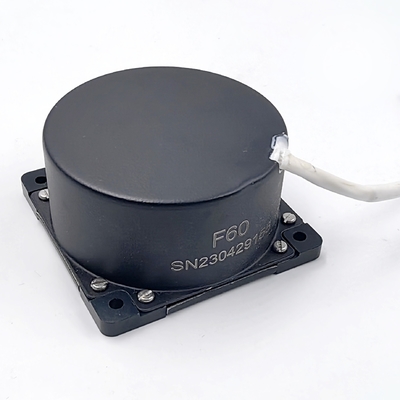

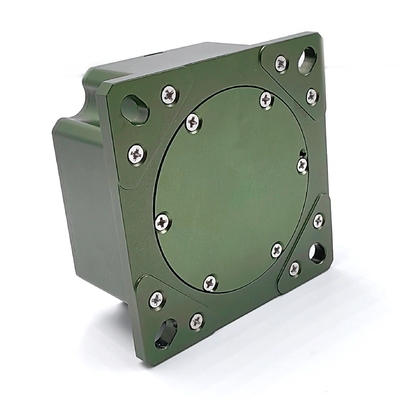

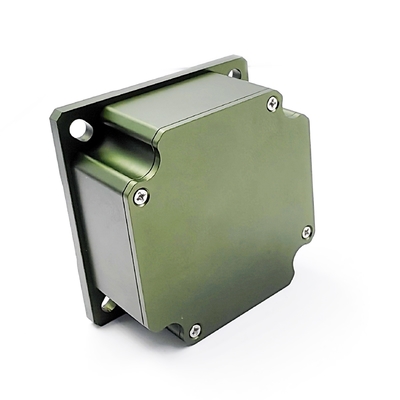

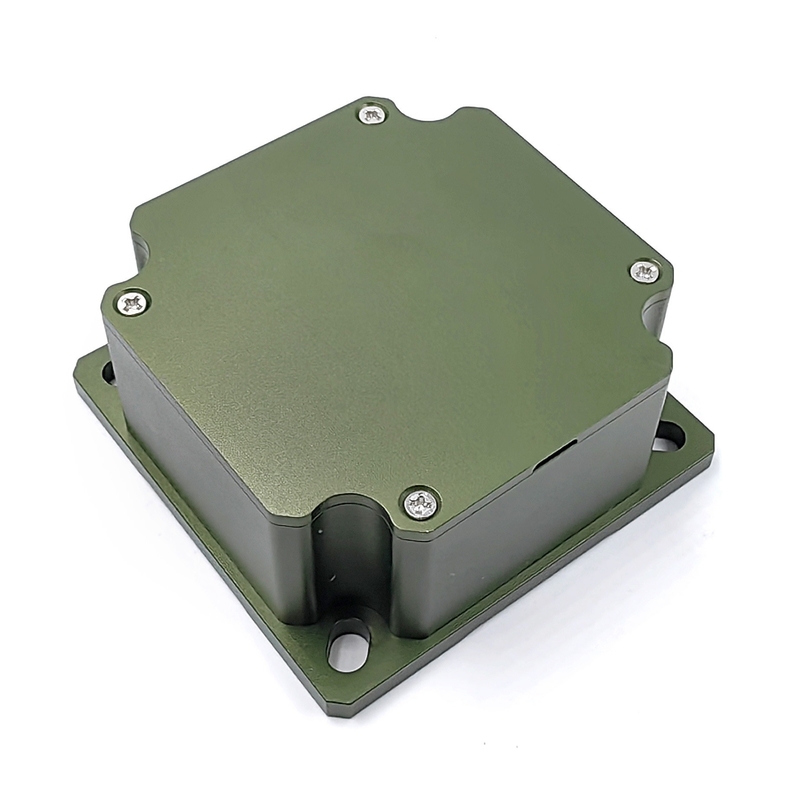

High Performance Close-loop Fiber Optic Gyroscope With Small Volume

Product Description

Basic Info.

Model NO.

F60

Measuring Shaft Quantities

Single

Accuracy Grade

0.06deg/H

IP Rating

IP67

Certification

Customized

Measuring Range

400~800deg/S

Zero Offset Stability

0.06deg/H

Scale Factor Nonlinear

<50ppm

Power Supply

Bandwidth

>200Hz

Transport Package

Sponge and Box

Specification

70mm× 70mm× 32mm

HS Code

9031809090

Production Capacity

500/Month

Product Description

High Dynamic Range FOG Gyroscope Sensor RS422 Digital CommunicationProduct Description

Product structure and features
The gyroscope structure adopts a typical optical fiber ring structure design scheme, and from the miniaturization integrated design, structural stability (resistance to shock and vibration), anti-resonance, structural symmetry, ease of installation and thermal design (temperature Characteristics) and other aspects were considered, and the existing structure of the gyro was optimized and designed.

Product Usage
The F60 fiber optic gyroscope has the characteristics of long life, strong shock and vibration resistance, large measurement range, high bandwidth, instant start, no drift caused by acceleration, and wide accuracy coverage. It can be widely used in ships, aircraft, and vehicles and Robot navigation, positioning and orientation, stability control and other fields.

Gyro working power supply
±5V power supply, power supply accuracy 5%, power supply ripple not more than 20mV. The maximum impulse current of the full temperature power supply is 1.5A. The steady-state power consumption at room temperature is not more than 2.5W, and the steady-state power consumption at full temperature is not more than 5W.

Project	unit	F60A	F60B	F60C	F60D
Measuring range	º/s	±400~±800
Zero offset stability	º/h	≤ 0.06	≤ 0.1	≤ 0.3	≤ 1.5
Zero bias repeatability	º/h	≤ 0.06	≤ 0.1	≤ 0.3	≤ 1.5
Random walk coefficient	º/√h	≤ 0.006	≤ 0.01	≤ 0.03	≤ 0.5
Scale factorNonlinear	ppm	≤ 50	≤ 60	≤70	≤150
Scale factorRepeatability	ppm	≤ 50	≤ 60	≤70	≤150
Scale factorAsymmetry	ppm	≤ 50	≤ 60	≤ 70	≤150
Start Time	s	≤1
bandwidth	Hz	>200
power supply	V	-5,+5
power	W	≤6
Operating temperature	ºC	-40~+65
storage temperature	ºC	-45~+85
vibration	Hz,g2/Hz	20~2000,0.06
Shock	g,ms	30,11
Data refresh rate	Hz	200~2000
Baud rate	bps	115200~921600
outputmethod	/	Broadcast (default) / triggered (custom)
Interface level	/	RS-422
Connector	/	J30J-15TJL
shape size	mm	Φ60×32
