Load Plate Size Ø300mm Dual Axis Motion Simulators with Chamber for INS Testing Load capacity 30/50kg

Brand Name:	Firepower
Model Number:	2LT300-W
MOQ:	1
Price:	negotiable
Payment Terms:	L/C,T/T
Supply Ability:	10 pcs/5 months

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product Name:

Acceleration Test Turntable

Load Capacity:

30/50kg

Load Plate Size:

Ø300mm

Rate Range:

±0.001°/s~1000°/s

Angular Position Measure Accuracy:

±3''

Rotary Accuracy:

±1~3''

Axes Perpendicularity:

3''

Table Height:

40０mm

Packaging Details:

Wooden Box

Supply Ability:

10 pcs/5 months

Highlight:

Chamber Load Plate Size Motion Simulators

300mm Load Plate Size Motion Simulators

50kg Load Plate Size Motion Simulators

Product Description

Load Plate Size Ø300mm Dual Axis Motion Simulators with Chamber for INS Testing Load capacity 30/50kg

Product Attributes

Attribute	Value
Product Name	Acceleration Test Turntable
Load capacity	30/50kg
Load Plate Size	Ø300mm
Rate Range	±0.001°/s~1000°/s
Angular Position Measure Accuracy	±3''
Rotary Accuracy	±1~3''
Axes Perpendicularity	3''
Table height	400mm

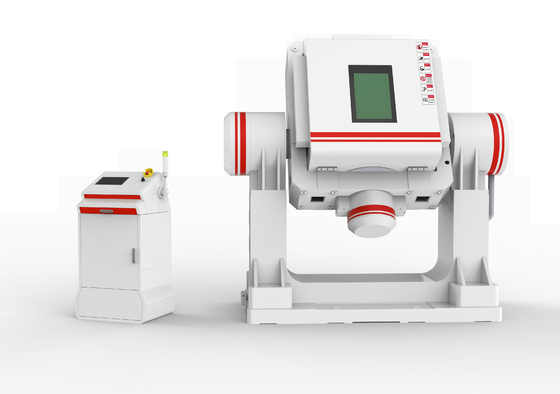

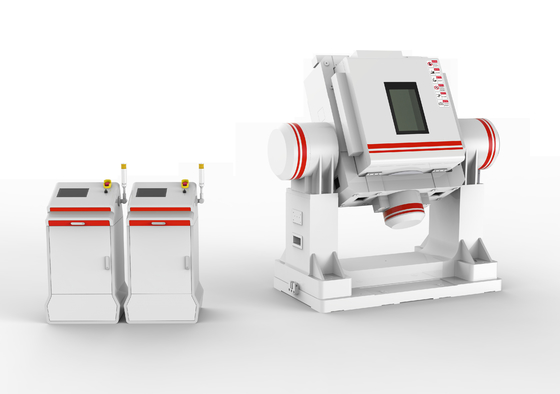

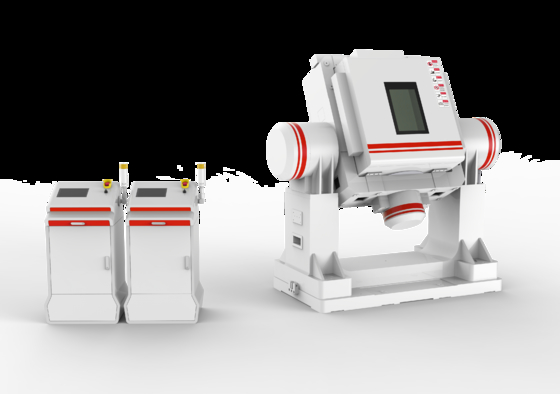

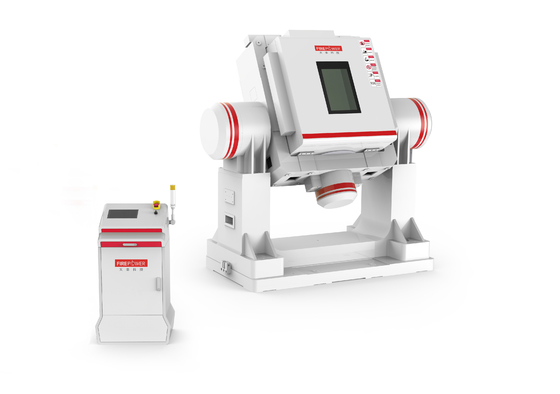

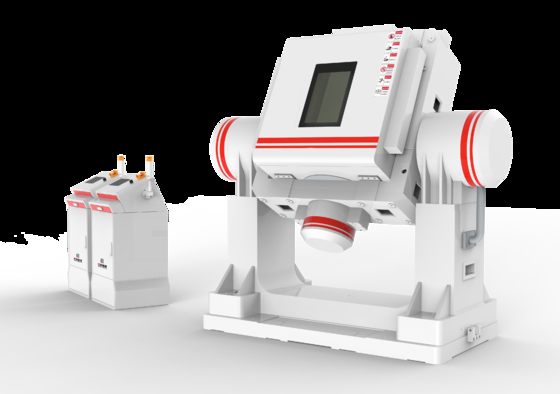

Dual Axis Motion Simulators with Chamber for INS Testing

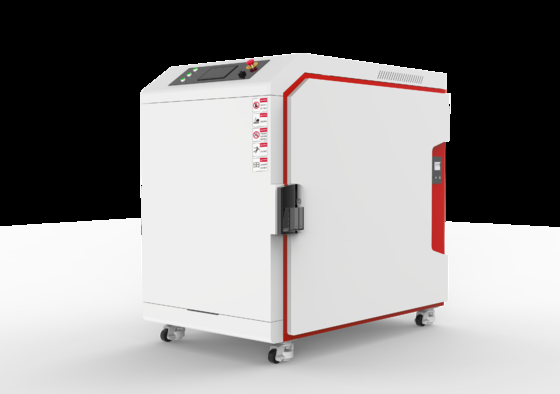

Two-axis temperature turntable with temperature chamber is composed of three parts: mechanical platform body, measurement and control system and temperature control system. The platform body adopts U-T structure form and precision mechanical shafting, internal orientation and external pitching, with position and speed movement functions, providing accurate single axis and double axis positioning and rate reference for the measured load. The temperature control box provides high and low temperature test environment for the load. Used for static testing and calibration of inertial element components and inertial navigation systems.

Specifications

Maximum load weight	30/50KG
Table size	Φ300mm
Mesa flatness	0.02mm
Table height	400mm
Face runout	0.05mm
Rotation accuracy	±1~3″
Angular position range	±0〜 ±360°
Angular position accuracy	±1~3″
Angular resolution	0.0001°
Angular rate range	0.001〜10000°/s
Angular rate accuracy	ω＜1°/s 1<ω＜10°/s 10<ω°/s
Speed smoothness	1 × 10-3 1 × 10-4 5 × 10-5
Max angular acceleration	10000°/s2 (Optional)
Rocking function	Optional
Rate resolution	0.0001°
Slip ring number	10~72 (Optional)
System bandwidth	5~ 80Hz (Optional)
Slip-ring voice	≤±0.03V
Leakage flux	<0.5mT
MTBF	≥2000h
Temperature control accuracy	±0.5°
Temperature uniformity	2°

Product Display
