Low Bias Micro-Nano Fiber Optic Gyro for Unmanned Cars

Name: Low Bias Micro-Nano Fiber Optic Gyro for Unmanned Cars
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 1217 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-910
MOQ:	1
Price:	1217 USD
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100 pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

±240°/S

Scale Factor:

47±5mv/°/S

Zero-Bias Stability:

≤0.8°/H, 10s, 1σ

Zero Bias Repeatability:

≤0.8°/H, 1σ

Power Supply:

5±0.25V

Power Consumption:

≤1.5W

Packaging Details:

Sponge&Box

Supply Ability:

100 pcs

Highlight:

Chamber Load Plate Size Motion Simulators

300mm Load Plate Size Motion Simulators

50kg Load Plate Size Motion Simulators

Product Description

Product Description

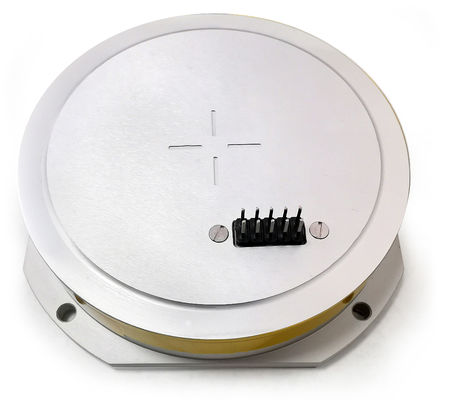

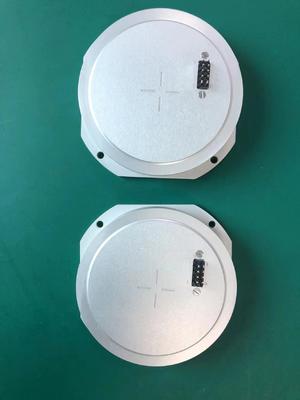

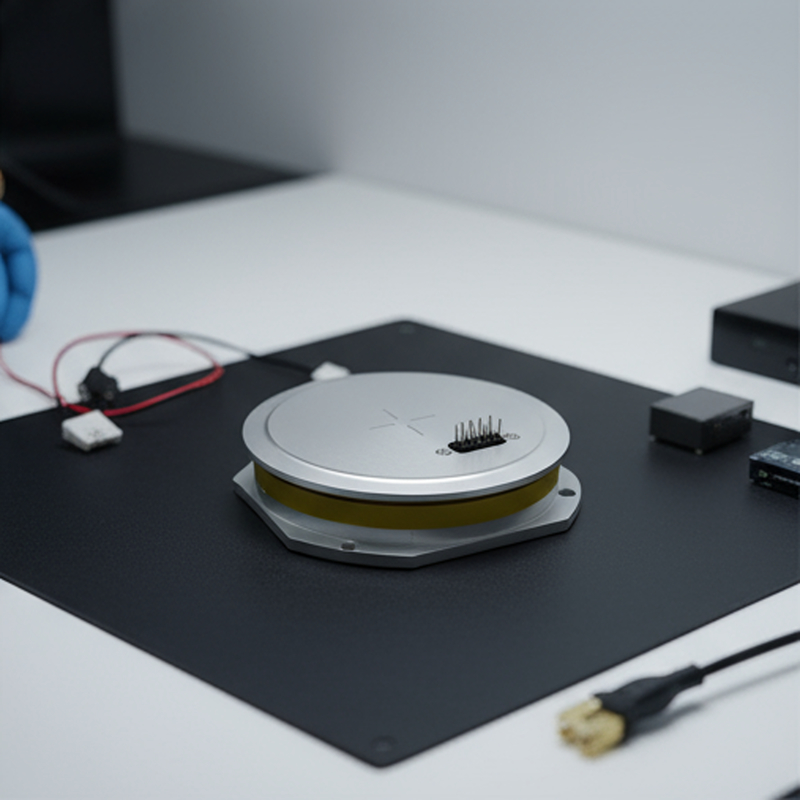

MFOG-910 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.

This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.

Technical Parameters

Project	Performance indicators
Range (°/s)	±240
Scale factor (mV/ o /s)	47±5
Scale factor nonlinearity (ppm)	≤1000
Zero-bias stability (10s, 1σ, o /H)	≤0.8
Zero-bias repeatability (1σ, o /H)	≤0.8
3dB Bandwidth (Hz)	≥1000
Random walk ( o /√ H)	≤0.02
Power supply (V)	5+0.25 +12
Power Consumption (W)	≤1.5
Impact (g)	≥1500
Acceleration (g)	≥70
Life (years) (calculated assessment)	≥15
MTBF (Calculated Assessment)	≥100000

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, was established in 2013 and registered in Shenzhen.

The company is high-tech enterprise dedicated to R&D and production of vibration acceleration sensors, MEMS gyro, IMU, INS, angle testing equipment and other products. The company has invested in and built multiple automated production lines in various locations such as Xi'an, Shenzhen, and Zhuhai. These production lines cover the manufacturing of MEMS gyro, MEMS inertial navigation systems, vibration acceleration sensors, communication products, and angle test equipment.

As an independent innovation-oriented high-tech enterprise, Firepower possesses China's leading production conditions for inertial navigation and communication products. The company always prioritizes scientific research and technological innovation, as well as self-reliance and control. It is committed to developing a series of autonomous navigation products with independent intellectual property rights, which are widely applied in the autonomous navigation perception fields of civilian vehicles and ships. With its self-developed array algorithm as the core technology, the company has developed a series of inertial navigation products that can provide users' carriers with key information such as current position, three-dimensional attitude, and speed, thereby achieving precise autonomous navigation control.

Company Advantage

Our Services

FAQ

Q: What is your lead time?
A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time based on your order quantities.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end:
1) We produce product according agreed technical requirements strictly;
2) We do full tests according to test methology;
3) We have a professional QA/QC team to ensure the quality.
Q: Do you accept OEM or ODM order?
A: Yes, we are professional manufacturer and we are capable for providing both OEM and ODM service by customer's needs.
Q: What are the terms of delivery?
A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you.
Q: What is the payment way?
A: TT, L/C, Pay later, West Union, Online Bank Payment.
Q: What is warranty?
A: Standardly 12 months and negotiable for longer warranty.
Q: What is the packing quality?
A: For sample order, we use carton box with sponge, and batch order, we use wooden box.
Q: What is final price?
A: For standard product, price is as in the price table; For customized product, price by checking with sales, so as to different quantity needs.
Q: How to choose product?
A: We are professional manufacturer, we could provide standard product on shelf, or products by customer's specific requirements:
1) Choose from MadeinChnia platform or website;
2) Customer raise some certain different technical requirements based on standard products;
3) Customer provide specific and comprehensive technical requirements to sales to evaluate;
4) Customer explain application to sales to provide suitable products.
