Single Axis Turntable Inertial Navigation System Test Table For Inertial Sensor Testing

Name: Single Axis Turntable Inertial Navigation System Test Table For Inertial Sensor Testing
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 1LT300
Price: 5,000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	1LT300
MOQ:	1
Price:	negotiable
Payment Terms:	L/C, T/T
Supply Ability:	10 pcs/5 months

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product Name:

Inertial Sensor Test Turntable

Structural Form:

Vertical

Load Capacity:

30kg

Load Plate Size:

Ø300mm

Flatness Of Table:

0.02 Mm

Computer Port:

RS232

Table Height:

350mm

Face Runout:

0.05mm

Rotary Accuracy:

±1~3''

Position Accuracy:

±1~3''

Packaging Details:

Wooden Box

Supply Ability:

10 pcs/5 months

Highlight:

Single Axis Turntable Test Table

Inertial Sensor Testing Single Axis Turntable

Product Description

Single Axis Turntable Inertial Navigation System Test Table for Inertial Sensor Testing

Product Description

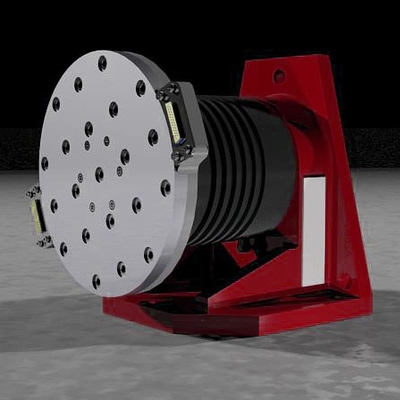

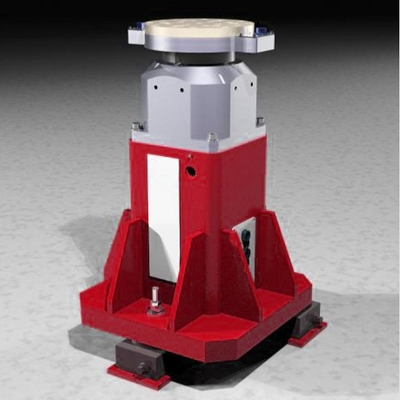

Model 1LT300 single-axis multi-function turntable is a mature and finalized precision single-axis rate test equipment, which is mainly used for various position, rate and swing tests and detection of rate gyroscope and its inertial measurement unit. After the temperature control box, the temperature control system, the auxiliary shaft and other parts are selected, the turntable can also be applied to the performance test of the inertial navigation device and the inertial navigation system under the low temperature condition. The supporting computer of the turntable has the function of storing the data related to the operation of the turntable, such as the real-time value of time, turntable position, speed and temperature of the turntable body, and has the function of outputting the data in real time through the string, and can control the turntable and the temperature through the external computer (through the string).

Technical Parameter

Index	1LT300
Structural form	Vertical
Maximum load weight	30KG
Table size	Φ300mm
Mesa ﬂatness	0.02mm
Table height	350mm
Face runout	0.05mm
Rotation accuracy	±1~3″
Angular position range	±0〜 ±360°
Angular position accuracy	±1~3″
Angular resolution	0.0001°
Angular rate range	0.001〜10000°/s
Angular rate accuracy	ω＜1°/s 1<ω＜10°/s 10<ω°/s
Speed smoothness	1 × 10-3 1 × 10-4 5 × 10-5
Max angular acceleration	10000°/s2(Optional)
Rocking function	Optional
Rate resolution	0.0001°
Slip ring number	10~50(Optioanl)
System bandwidth	5~ 100Hz(Optioanl)
Slip-ring voice	≤±0.03V
Leakage ﬂux	<0.5mT
MTBF	≥2000h
