Miniaturized Micro-Nano Fiber Optic Gyroscope for Smartphones

Name: Miniaturized Micro-Nano Fiber Optic Gyroscope for Smartphones
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 1317 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	1317 USD
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100 pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

±500°/S

Scale Factor:

3600lsb/°/S

Scale Factor Nonlinearity:

300ppm

Zero-Bias Stability:

≤1.5°/H, 10s, 1σ

Power Supply:

5±0.15V

Power Consumption:

≤1.5W

Packaging Details:

Sponge&Box

Supply Ability:

100 pcs

Highlight:

Aerospace Rotary Test Turntable

Defense Rotary Test Turntable

Single Axis Rotary Test Turntable

Product Description

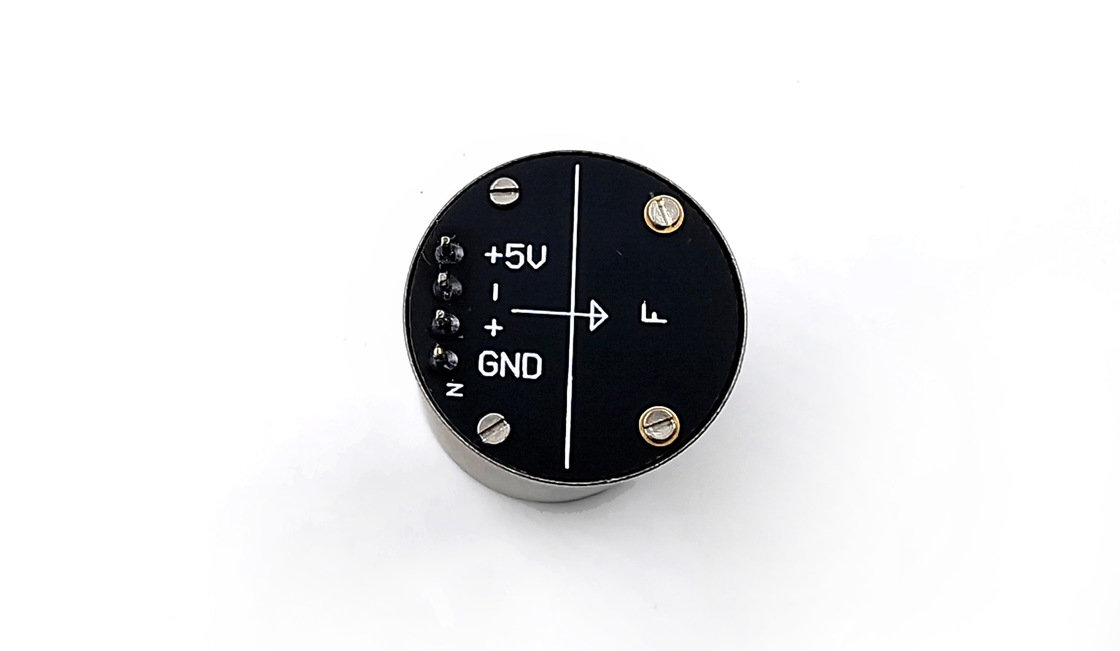

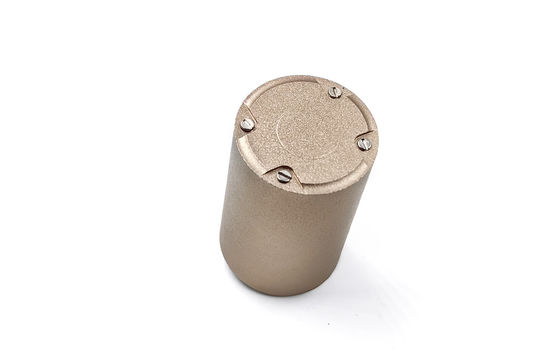

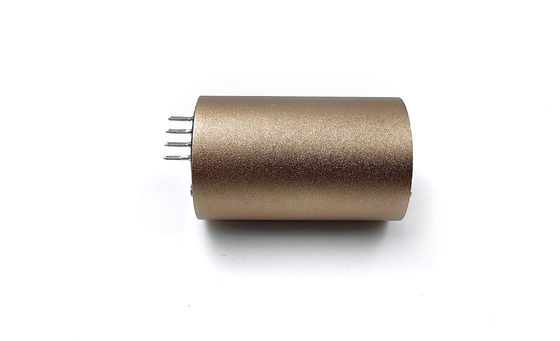

Miniaturized Micro-Nano Fiber Optic Gyroscope for Smartphones

Product Description

The MFOG-24 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback phase differences between counter-propagating light beams.

Comprising optical path components, circuit components, and structural components, this product features a simple structure with no moving or wear parts. It offers fast startup, compact size, and lightweight design, making it ideal for attitude control and measurement applications in various carriers.

Technical Parameters

Project	Performance indicators
Range (°/s)	±500
Scale factor	3600 (LSB/°/s)
Scale factor nonlinearity (ppm)	300
Zero-bias stability (10s, 1σ, °/h)	≤1.5
Zero-bias repeatability (1σ, °/h)	≤1.5
Angular random walk (°/h 1/2)	≤0.03
Zero bias (°/s)	≤0.02
3dB Band Width (Hz)	≥300
Power supply (V)	5+0.15
Power Consumption (W)	≤1.5
Dimension	φ24mmX39mm

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, established in 2013, is a high-tech enterprise specializing in R&D and production of vibration acceleration sensors, MEMS gyros, IMUs, INS, and angle testing equipment. With automated production lines in Xi'an, Shenzhen, and Zhuhai, we manufacture MEMS gyros, inertial navigation systems, vibration sensors, and communication products.

As an innovation-driven company, Firepower possesses China's leading production capabilities for inertial navigation and communication products. Our core array algorithm technology enables development of autonomous navigation products with independent intellectual property rights, widely applied in civilian vehicle and ship navigation systems.

Company Advantage

Our Services

FAQ

Q: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Contact us for specific lead time based on order quantities.

Q: How does your factory do regarding quality control?

A: We implement strict quality control: 1) Production according to technical requirements; 2) Full testing per methodology; 3) Professional QA/QC team oversight.

Q: Do you accept OEM or ODM order?

A: Yes, we provide both OEM and ODM services tailored to customer needs.

Q: What are the terms of delivery?

A: We accept EXW, FOB, CIF, and other terms convenient for you.

Q: What is the payment way?

A: TT, L/C, Pay later, West Union, Online Bank Payment.

Q: What is warranty?

A: Standard 12 months warranty, negotiable for longer periods.

Q: What is the packing quality?

A: Sample orders use carton box with sponge; batch orders use wooden box.

Q: How to choose product?

A: Options: 1) Select from standard products; 2) Customize based on standard products; 3) Provide specific technical requirements; 4) Explain application for suitable product recommendation.
