Miniature Fiber Optic Gyro VG103 Angular Rate Sensor for Inertial Navigation System

Name: Miniature Fiber Optic Gyro VG103 Angular Rate Sensor for Inertial Navigation System
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-103
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-103
MOQ:	1
Price:	negotiable
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

±350°/s

Bias Stability:

≤1°/h

Bandwidth:

≥1000Hz

Random Walk:

≤0.02°/√h

Power Consumption:

≤1W

Acceleration:

≥70g

Packaging Details:

Wooden Box

Supply Ability:

1000pcs

Highlight:

3 Axis Rotary Turntable

Aerospace 3 Axis Turntable

High Precision 3 Axis Turntable

Product Description

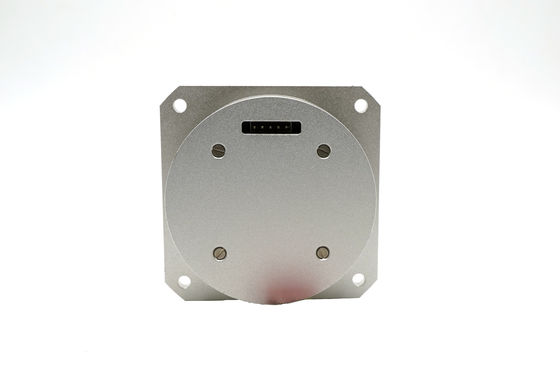

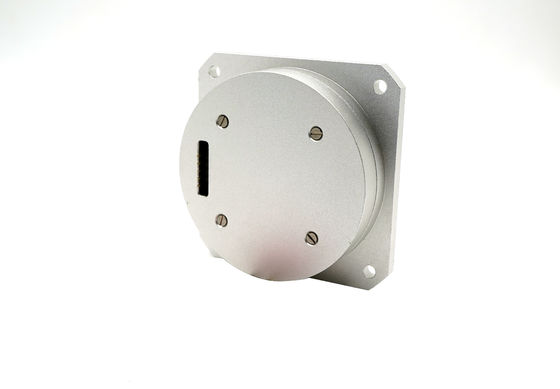

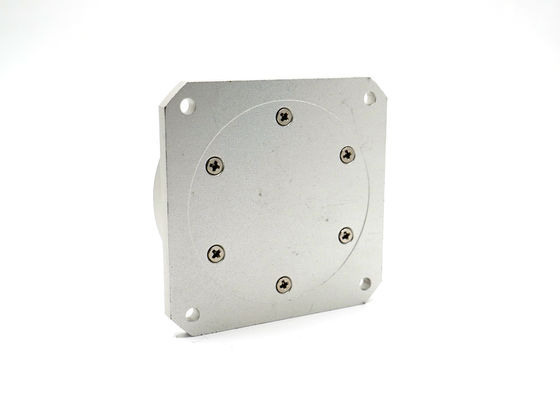

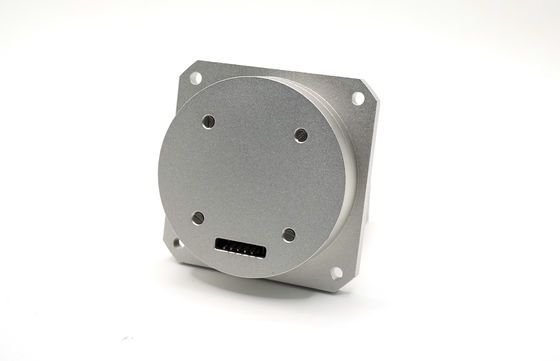

Miniature Fiber Optic Gyro VG103 Angular Rate Sensor for Inertial Navigation System

The MFOG-103 is a compact, high-performance fiber optic gyroscope that integrates optical, mechanical, and electronic technologies. Based on the Sagnac effect, it measures angular rate by detecting the phase difference between two counter-propagating light beams in a micro-nano fiber coil.

This sensor features a solid-state design with no moving or wearing parts, ensuring high reliability, fast startup, low power consumption, and excellent stability. The MFOG-103 is a direct replacement for the Fizoptika VG103, offering improved performance.

Composition:

A) Optical path assembly
B) Detection and control circuit board
C) Fiber coil frame and housing structure

Main Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±350
2	Scale factor (mV/°/s)	6±0.6
3	Zero-bias stability (10s, 1σ, °/H)	≤1
4	Zero-bias repeatability (1σ, °/H)	≤1
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Power supply (V)	5+0.25
9	Power Consumption (W)	≤1
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Service Life (years) (calculated assessment)	≥15
13	MTBF (Calculated Assessment)	≥100000

Weight: ≤80g

Operating Temperature

-40℃ to +70℃

Storage Temperature

-55℃ to +85℃

Random Vibration

Random vibration level: 20g, frequency range: 20Hz to 2000Hz

Outline Drawing
