Industry Grade Micro-Nano Fiber Optic Gyroscope for Dam Monitoring

Name: Industry Grade Micro-Nano Fiber Optic Gyroscope for Dam Monitoring
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-1703
Price: 10000.00 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	MFOG-1703
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Bias Repeatability:

≤1°/h

Measuring Range:

±150°/s

Bias Stability:

≤1°/h

Zero-bias Stability At Full Temperature:

≤1.5°/h

Random Walk:

≤0.02°/√h

Power Consumption:

≤1.5W

Packaging Details:

sponge+box

Supply Ability:

500/month

Highlight:

Servo Tracking Fiber Optic Gyroscope

Industry Grade Fiber Optic Gyroscope

Airborne Optoelectronic Pod Fiber Optic Gyroscope

Product Description

Industry Grade Micro-Nano Fiber Optic Gyroscope for Dam Monitoring

Product Description

The MFOG-1703 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Utilizing the Sagnac effect and incorporating various micro-nano fiber devices, it precisely measures phase differences between counter-propagating light beams to deliver accurate angular rate data.

Comprising optical path components, circuit components, and structural components, this gyroscope features a simple design with no moving or wearing parts. Its compact size, lightweight construction, and rapid startup make it ideal for attitude control and measurement applications in various carrier systems.

Technical Parameters

Serial Number	Project	Performance Indicators
1	Range (°/s)	±150
2	Scale Factor (LSB/°/s)	3600
3	Scale factor nonlinearity (ppm)	≤500
4	Zero-bias stability (10s, 1σ, °/h)	≤1
5	Zero-bias repeatability (1σ, °/h)	≤1
6	Angular random walk (°/h 1/2)	≤0.02
7	Zero-bias stability at full temperature (10s, 1σ, -40℃ ~ +65℃, °/h)	≤1.5
8	3dB Bandwidth (Hz)	≥300
9	Power supply (V)	5+0.15
10	Power Consumption (W)	≤1.5
11	Dimension (mm)	φ40*20

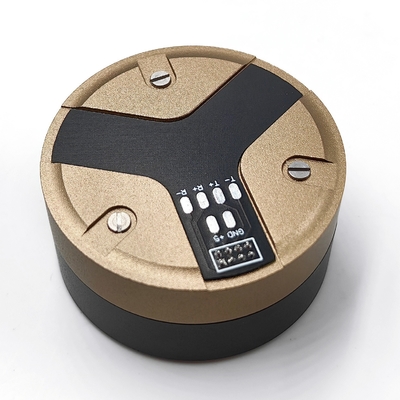

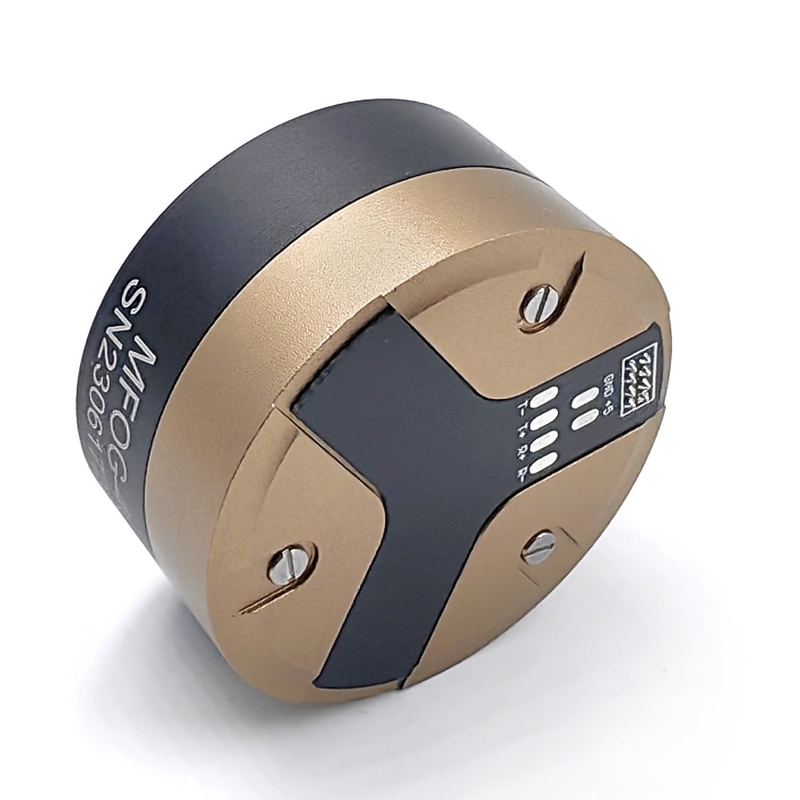

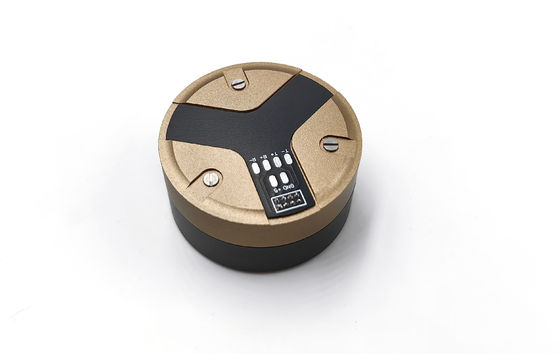

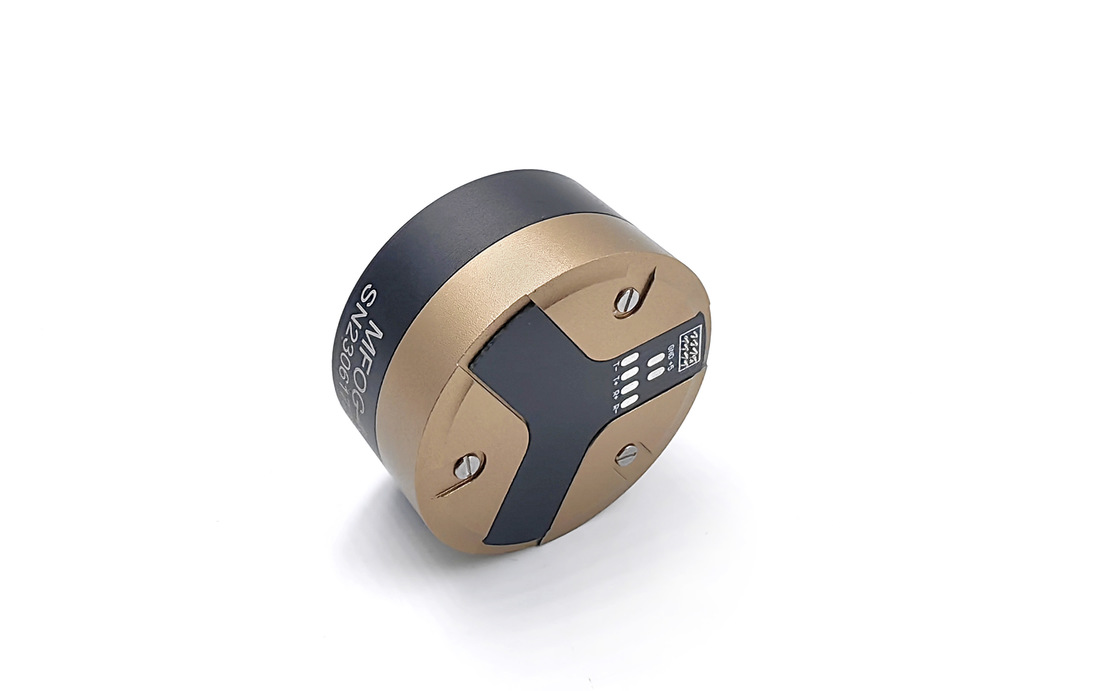

Product Image
