Home Products

Fiber Optic Gyro

Anti-jamming Receiver GNSS Antenna Anti-Interference Antenna

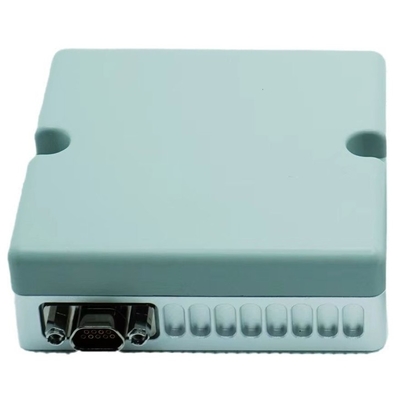

Name: Anti-jamming Receiver GNSS Antenna Anti-Interference Antenna
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: FPD24005-66
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	FPD24005-66
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Antenna Receiver

Unidirectional Interference:

Better Than 85dBc

Multi-directional Interference:

Better Than 65dBc

Anti-jamming Airspace:

Azimuth: 0 ° ~ 360 °, Elevation: -90 ° ~ 90 °

Dimension:

(66 ± 0.5) Mm X (66 ± 0.5) Mm X (22 ± 0.5) Mm

Power Consumption:

Weight:

<150g

Supply Ability:

500/month

Highlight:

Anti-Interference GNSS Antenna

UAV Application GNSS Antenna

Anti-jamming Receiver GNSS Antenna

Product Description

Products Description

The product model is FPD24005-66-GNSS-12V. It protects the platform from all kinds of unintentional interference and malicious attacks, and greatly improves the information security of PNT.

Specification

1 Product features
* It has the function of anti-deception.
* It has the function of jamming power detection, which is convenient for jamming calibration and joint test of the whole
machine.
* Support secondary development and further spectrum monitoring, histogram analysis and other processing
* Support 4-array element single-frequency anti-jamming, with working frequency points B1, L1 and E1.
* Built-in navigation and positioning module outputs positioning information according to NEMA0183 protocol.

2 Key indicators
* Anti-interference ability:
* Unidirectional interference: better than 85dBc
* Multi-directional interference: better than 65dBc
* Type of interference:
* Decoy jamming;
* Band-limited white Gaussian interference, spread spectrum matched spectrum interference;
* Pulse jamming and sweep jamming;
* Mixed interference;
* Anti-jamming airspace: azimuth: 0 ° ~ 360 °, elevation: -90 ° ~ 90 °
* Volume: (66 ± 0.5) mm × (66 ± 0.5) mm × (22 ± 0.5) mm
* Power consumption: 7 W (normal temperature, including positioning module)
* Weight: < 150g

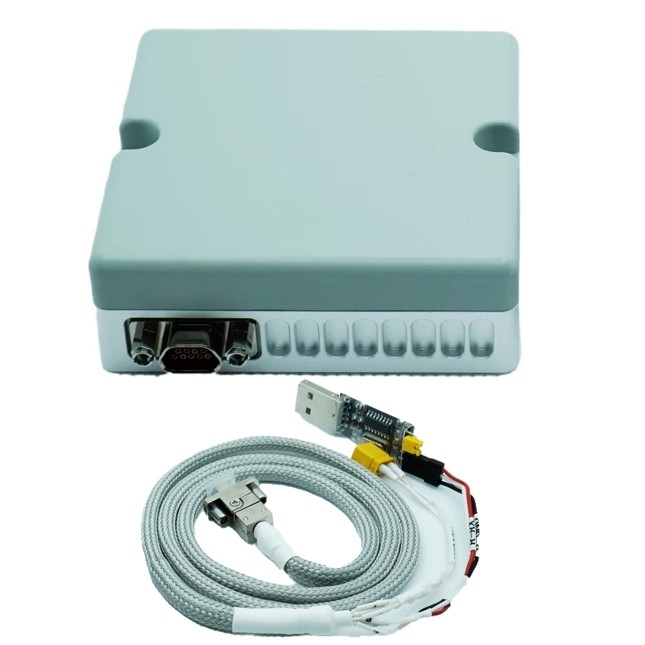

Interface description J30J-9ZKP pin definition

Pin No.	Definition	Remark
1/2	VCC12V	Power supply 12V
3/4	GND	Power supply 12V
5	UART_TXD1	Upgrade serial port, TTL level
6	UART_RXD1	Upgrade serial port, TTL level
7	UART_DGND	Ground
8	UART_TXD2	Serial port of positioning module, TTL level
9	UART_RXD2	Serial port of positioning module, TTL level

Details Images
