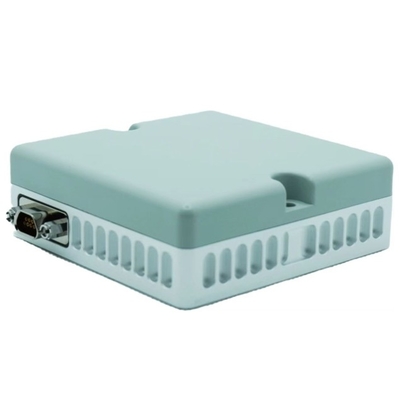

High-Precision Anti-Interference Gnss Antenna B1 L1 E1 for Positioning

High-Precision Anti-Interference Gnss Antenna B1 L1 E1 for Positioning

High-Precision Anti-Interference Gnss Antenna B1 L1 E1 for Positioning

Brand Name: Firepower
Model Number: FPD24005-66
MOQ: 1
Price: Negotiable
Payment Terms: L/C,T/T
Supply Ability: 500/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
Antenna Receiver
Unidirectional Interference:
Better Than 85dBc
Multi-directional Interference:
Better Than 65dBc
Anti-jamming Airspace:
Azimuth: 0 ° ~ 360 °, Elevation: -90 ° ~ 90 °
Dimension:
(66 ± 0.5) Mm X (66 ± 0.5) Mm X (22 ± 0.5) Mm
Power Consumption:
7W
Weight:
<150g
Packaging Details:
carton with sponge
Supply Ability:
500/month
Highlight:

Drone Satellite Positioning Gnss Antenna

,

High Precision Gnss Antenna

,

Anti Interference Gnss Antenna

Product Description
Products Description
The product model is FPD24005-66-GNSS-12V. It protects the platform from all kinds of unintentional interference and malicious attacks, and greatly improves the information security of PNT.
Specification


1 Product features
* It has the function of anti-deception.
* It has the function of jamming power detection, which is convenient for jamming calibration and joint test of the whole
machine.
* Support secondary development and further spectrum monitoring, histogram analysis and other processing
* Support 4-array element single-frequency anti-jamming, with working frequency points B1, L1 and E1.
* Built-in navigation and positioning module outputs positioning information according to NEMA0183 protocol.

2 Key indicators
* Anti-interference ability:
* Unidirectional interference: better than 85dBc
* Multi-directional interference: better than 65dBc
* Type of interference:
* Decoy jamming;
* Band-limited white Gaussian interference, spread spectrum matched spectrum interference;
* Pulse jamming and sweep jamming;
* Mixed interference;
* Anti-jamming airspace: azimuth: 0 ° ~ 360 °, elevation: -90 ° ~ 90 °
* Volume: (66 ± 0.5) mm × (66 ± 0.5) mm × (22 ± 0.5) mm
* Power consumption: 7 W (normal temperature, including positioning module)
* Weight: < 150g


Interface description J30J-9ZKP pin definition
Pin No.
Definition
Remark
1/2
VCC12V
Power supply 12V
3/4
GND
Power supply 12V
5
UART_TXD1
Upgrade serial port, TTL level
6
UART_RXD1
Upgrade serial port, TTL level
7
UART_DGND
Ground
8
UART_TXD2
Serial port of positioning module, TTL level
9
UART_RXD2
Serial port of positioning module, TTL level
Details Images

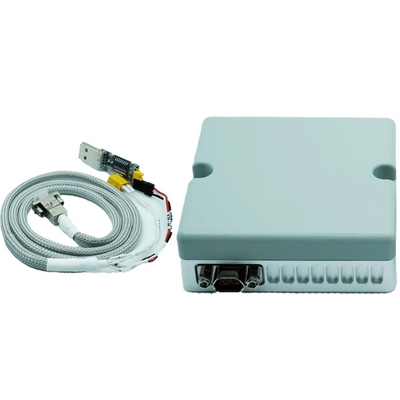

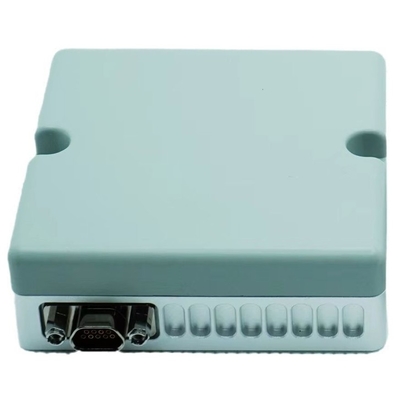

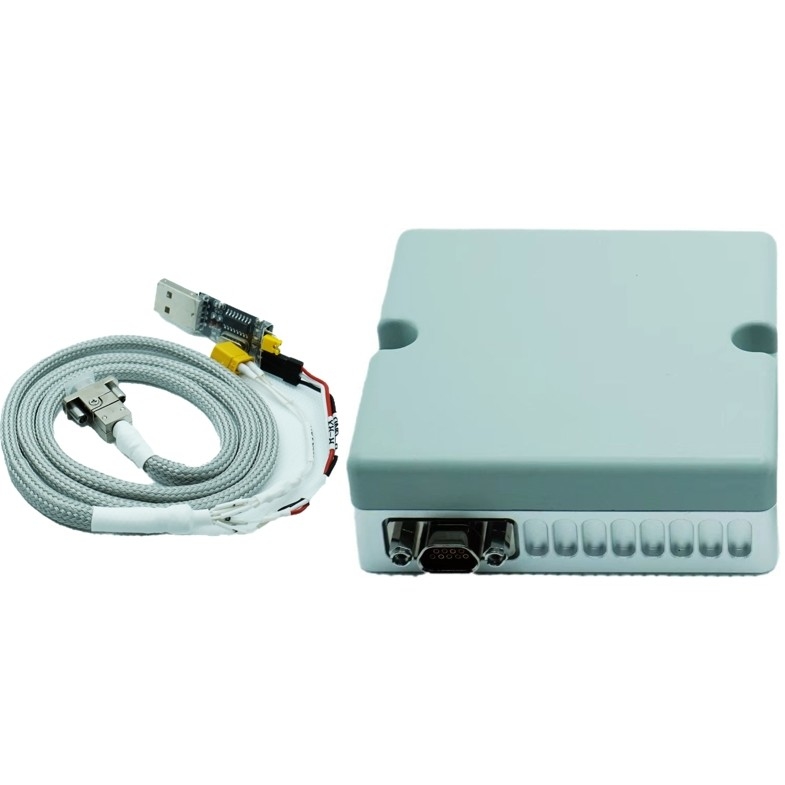

High-Precision Anti-Interference Gnss Antenna B1 L1 E1 for Positioning 0
High-Precision Anti-Interference Gnss Antenna B1 L1 E1 for Positioning 1
High-Precision Anti-Interference Gnss Antenna B1 L1 E1 for Positioning 2
High-Precision Anti-Interference Gnss Antenna B1 L1 E1 for Positioning 3
High-Precision Anti-Interference Gnss Antenna B1 L1 E1 for Positioning 4
