Dimension:(66 ± 0.5) Mm X (66 ± 0.5) Mm X (22 ± 0.5) Mm
Power Consumption:7W
Weight:<150g
Highlight:
Interference Proof Antenna Receiver
,
Position Module Antenna Receiver
,
Multi-directional Antenna Receiver
Basic Infomation
Place of Origin:China
Brand Name:Firepower
Model Number:FPD24005-66
Payment & Shipping Terms
Packaging Details:carton with sponge
Delivery Time:1 week
Payment Terms:L/C, T/T
Supply Ability:500/month
Gallery

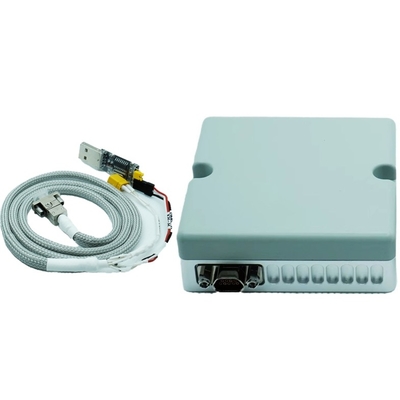

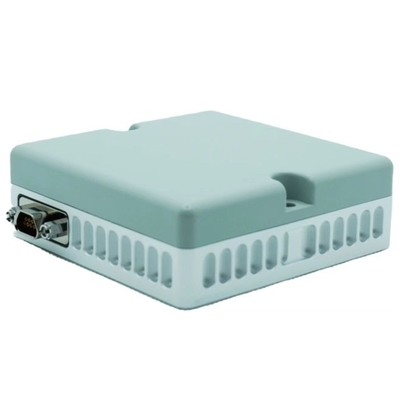

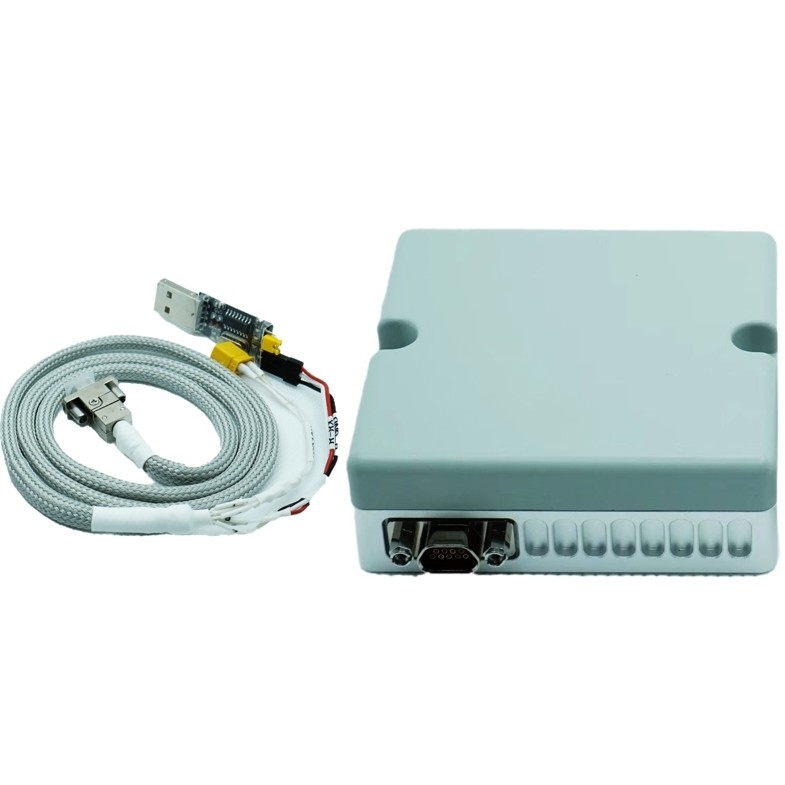

Multi-directional Interference Proof Antenna Receiver with Position Module
Product Description
Products Description
The product model is FPD24005-66-GNSS-12V. It serves the reliable navigation of small UAVs and other fields, protects the platform from all kinds of unintentional interference and malicious attacks, and greatly improves the information security of PNT.
Specification
1 Product features
* It has the function of anti-deception.
* It has the function of jamming power detection, which is convenient for jamming calibration and joint test of the whole
machine.
* Support secondary development and further spectrum monitoring, histogram analysis and other processing
* Support 4-array element single-frequency anti-jamming, with working frequency points B1, L1 and E1.
* Built-in navigation and positioning module outputs positioning information according to NEMA0183 protocol.
2 Key indicators
* Anti-interference ability:
* Unidirectional interference: better than 85dBc
* Multi-directional interference: better than 65dBc
* Type of interference:
* Decoy jamming;
* Band-limited white Gaussian interference, spread spectrum matched spectrum interference;
* Pulse jamming and sweep jamming;
* Mixed interference;
* Anti-jamming airspace: azimuth: 0 ° ~ 360 °, elevation: -90 ° ~ 90 °
* Volume: (66 ± 0.5) mm × (66 ± 0.5) mm × (22 ± 0.5) mm
* Power consumption: 7 W (normal temperature, including positioning module)
* Weight: < 150g
