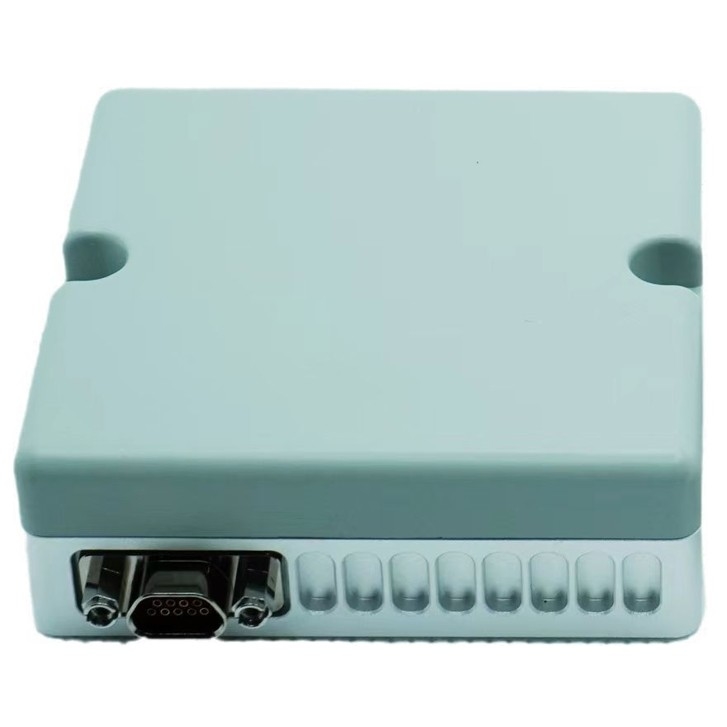

Interference-Resistant GNSS Antenna B1 L1 E1 With Positioning Module

Name: Interference-Resistant GNSS Antenna B1 L1 E1 With Positioning Module
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: FPD24005-66
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	FPD24005-66
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Antenna Receiver

Single-Side Jamming:

Better Than 85dBc

Multidirectional Interference:

Better Than 65dBc

Anti-jamming Airspace:

Azimuth: 0 ° ~ 360 °, Elevation: -90 ° ~ 90 °

Size:

(66 ± 0.5) Mm X (66 ± 0.5) Mm X (22 ± 0.5) Mm

Power Consumption:

Weight:

<150g

Supply Ability:

500/month

Highlight:

Positioning Module GNSS Antenna

Interference-Resistant GNSS Antenna

B1 L1 E1 GNSS Antenna

Product Description

Interference-Resistant GNSS Antenna B1 L1 E1 with Positioning Module

Description

The product model is FPD24005-66-GNSS-12V. which is specifically designed to provide highly reliable navigation solutions.

Specification

1 Product features

* It has the function of anti-deception.
* It has the function of jamming power detection, which is convenient for jamming calibration and joint test of the whole
machine.
* Support secondary development and further spectrum monitoring, histogram analysis and other processing
* Support 4-array element single-frequency anti-jamming, with working frequency points B1, L1 and E1.
* Built-in navigation and positioning module outputs positioning information according to NEMA0183 protocol.

2 Key indicators

* Anti-interference ability:
* Unidirectional interference: better than 85dBc
* Multi-directional interference: better than 65dBc
* Type of interference:
* Decoy jamming;
* Band-limited white Gaussian interference, spread spectrum matched spectrum interference;
* Pulse jamming and sweep jamming;
* Mixed interference;
* Anti-jamming airspace: azimuth: 0 ° ~ 360 °, elevation: -90 ° ~ 90 °
* Volume: (66 ± 0.5) mm × (66 ± 0.5) mm × (22 ± 0.5) mm
* Power consumption: 7 W (normal temperature, including positioning module)
* Weight: < 150g

Interface description J30J-9ZKP pin definition

Pin No.	Definition	Remark
1/2	VCC12V	Power supply 12V
3/4	GND	Power supply 12V
5	UART_TXD1	Upgrade serial port, TTL level
6	UART_RXD1	Upgrade serial port, TTL level
7	UART_DGND	Ground
8	UART_TXD2	Serial port of positioning module, TTL level
9	UART_RXD2	Serial port of positioning module, TTL level
