Home Products

Fiber Optic Gyro

Tactical Grade Three Axis High Precision Fiber Optic Gyroscope Inertial Navigation Sensor

Name: Tactical Grade Three Axis High Precision Fiber Optic Gyroscope Inertial Navigation Sensor
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 3OG-40M
Price: 10000.00 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	3OG-40M
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Measuring Range:

±500/±800°/s

Zero-Bias Stability:

≤0.3°/h

Zero-bias Repeatability:

≤0.3°/h

Scale Factor Nonlinearity:

≤50ppm

Bandwidth:

≥200Hz

Zero Bias Sensitivity:

≤0.07°/h/Gs

Packaging Details:

sponge+box

Supply Ability:

500/month

Highlight:

Inertial Navigation Sensor Fiber Optic Gyroscope

Three Axis Fiber Optic Gyroscope

High Precision Fiber Optic Gyroscope

Product Description

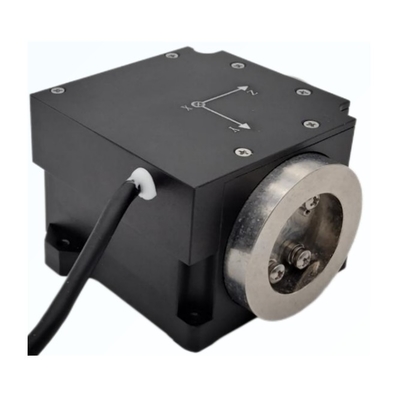

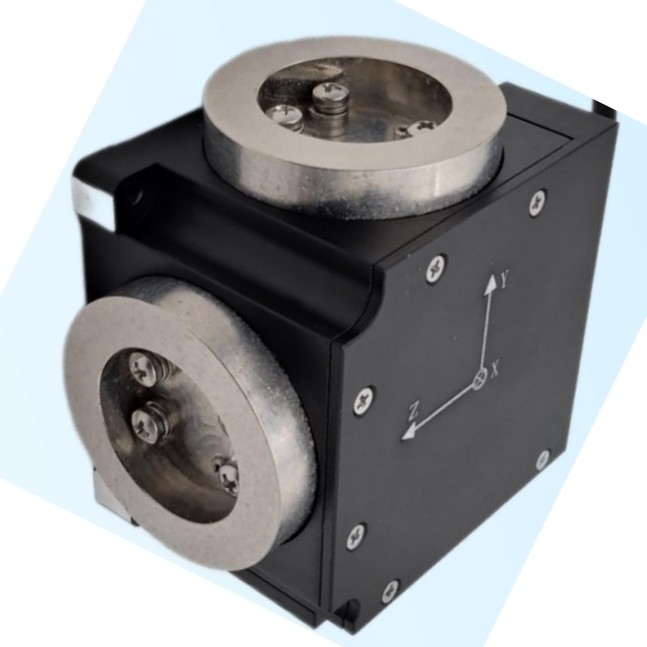

Tactical Grade Three Axis High Precision Fiber Optic Gyroscope Inertial Navigation Sensor

Product Description

The 3OG-40M is a high-precision inertial angular rate sensor based on the optical Sagnac effect, designed to measure the angular velocity of a moving platform along its sensitive axis. At the core of this device is an advanced fiber-optic ring, which serves as the angular velocity sensing unit.
It employs a digital closed-loop detection circuit to extract the optical path difference created by the interference between clockwise and counterclockwise propagating light waves. This optical path difference, induced by external angular velocity, is accurately detected by the fiber-optic ring. A sophisticated feedback control system then converts this signal into a voltage output, enabling real-time modulation and demodulation.
Through this advanced closed-loop control mechanism, the 3OG-40M achieves high-precision angular velocity detection with exceptional stability and reliability. This makes it ideal for applications requiring accurate inertial measurements, such as navigation, stabilization, and motion control systems in aerospace, defense, and industrial fields.

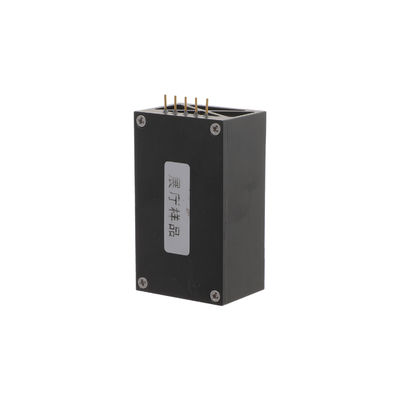

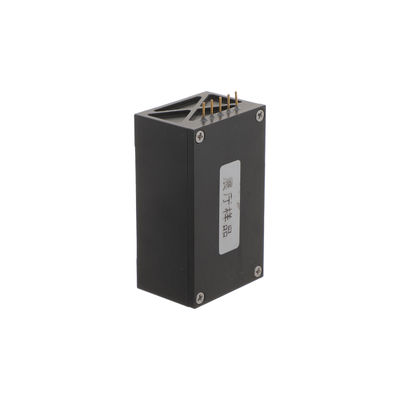

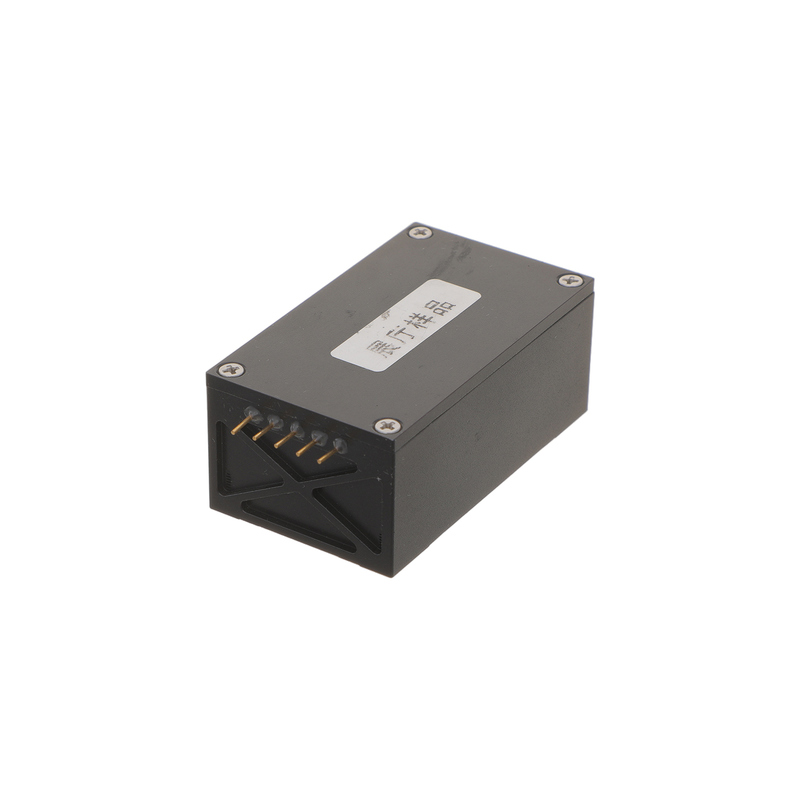

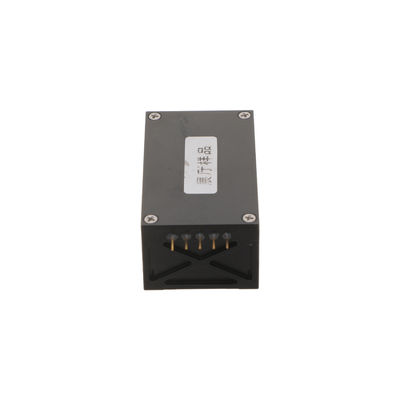

Details Images

Technical Parameter

Serial number	Test item	Unit	3OG-40	3OG-40M	3OG-56
1	Overall dimensions	mm	71.5×71.5×45
2	Starttime	S	3	3	3
3	Zero position	(°)/h	≤1	≤1	≤1
4	Zero bias stability at room temperature (constant temperature)	(°)/h	≤0.08(10s)	≤0.3(10s)	≤1(10s)
6	Zero-bias repeatability	(°)/h	≤0.08	≤0.3	≤1
7	Zero bias sensitivity	(°)/h/Gs	≤0.05	≤0.07	≤0.1
8	Random walk coefficient	()/h1/2	≤0.01	≤0.01	≤0.05
9	Scale factor nonlinearity	ppm	≤20	≤50	≤100
10	Scale factor asymmetry	ppm	≤10	≤30	≤50
11	Scale factor repeatability	ppm	≤20	≤50	≤100
12	Threshold	(°)/h	≤0.05	≤0.05	≤0.08
13	Resolution	(°)/h	≤0.05	≤0.05	≤0.05
14	Bandwidth	Hz	≥200	≥200	≥200
15	Operating temperature	℃	-45～+70	-45～+70	-45～+70
16	Storage temperature	℃	-55～+80	-55～+80	-55～+80
17	Dynamic range	(°)/s	±500/±800	±500/±800	±500/±1000
18	Supply voltage	V	+5	+5	+5
19	Steady-state power consumption	W	≤4	≤4	≤4
20	Full temperature steady state power consumption	W	≤8	≤8	≤8
21	Start the instantaneous current	A	<2	<2	<2
