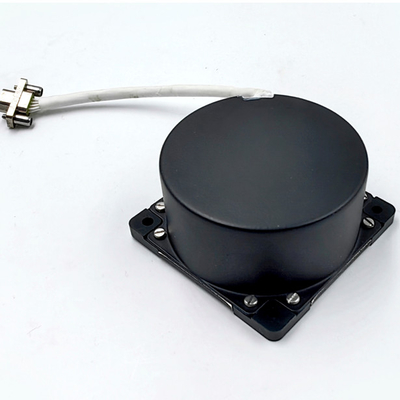

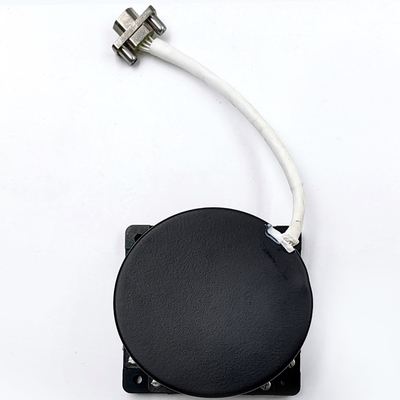

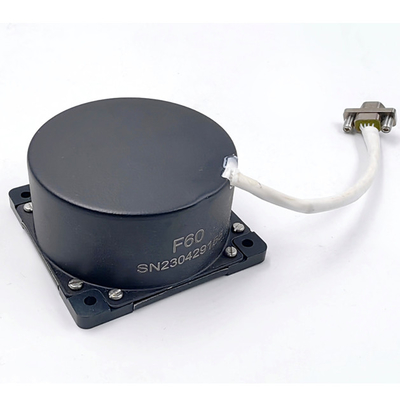

RS-422 Output Mode High Fiber Optic Gyroscope with Zero Bias Stability ≤0.1°/h and Long Service Life

Brand Name:	Firepower
Model Number:	FOG-60B
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Zero Bias Stability:

≤0.1°/h

Random Walk Coefficient:

≤0.01°/√h

Measuring Range:

-500~+500°/s

Start Time:

Impact:

30g, 11ms

Vibration:

20~2000Hz, 0.06g²/Hz

Output Mode:

RS-422

Working Temperature:

-40~+70℃

Power Consumption:

≤2.5W

Dimensions:

60mm*60mm*32mm

Packaging Details:

sponge and carton

Supply Ability:

500/month

Highlight:

Long Service Life Fiber Optic Gyroscope

Zero Bias Stability Fiber Optic Gyroscope

RS-422 Fiber Optic Gyroscope

Product Description

1. Core Component Design
Light Source: This product uses Super Radiant Light Emitting Diode (SLD) or laser diode to ensure the stability and coherence of the output light signal.
Fiber Optic Coil: A low-loss, highly birefringent, bias-preserving fiber is used, precisely wound into a ring structure to enhance the Sagnac effect.
Photodetectors: Highly sensitive detectors are used to detect the phase change of optical signals and convert them into electrical signals.
Signal Processing Unit: Integrated high performance Digital Signal Processor (DSP) for real-time processing of optical signals and calculation of angular velocity.

2. Product advantages

Long life and low maintenance
Due to the all-solid-state design, fiber optic gyroscopes have no mechanical wear parts, long service life, and are virtually maintenance-free, significantly reducing the user's operating costs and maintenance efforts.

3. Parameters

Serial number	Test item	Unit	FOG-60A	FOG-60B
1	Overall dimensions	mm	60×60×32	60×60×32
2	Start-up time	s	3	3
3	Zero bias	(°)/h	≤0.1	≤0.5
4	Zero bias stability at normal temperature (constant temperature) (10 s smooth)	(°)/h	≤0.06	≤0.1
5	Zero bias stability with temperature change (1 ℃/min variable temperature, 100 s smooth)	(°)/h	≤0.18	≤0.3
6	Zero-bias repeatability	(°)/h	≤0.06	≤0.1
7	Zero bias sensitivity	(°)/h/Gs	≤0.06	≤0.1
8	Random walk coefficient	(º)/h1/2	≤0.006	≤0.01
9	Scale factor nonlinearity	ppm	≤10	≤10
10	Scale factor asymmetry	ppm	≤5	≤5
11	Scale factor repeatability	ppm	≤10	≤10
12	Threshold	(°)/h	≤0.06	≤0.1
13	Resolution	(°)/h	≤0.06	≤0.1
14	Bandwidth	Hz	≥500	≥500
15	Operating temperature	℃	-45～+70	-45～+70
16	Storage temperature	℃	-55～+85	-55～+85
17	Dynamic range	(°)/s	±500	±500
18	Supply voltage	V	+5	+5
19	Normal temperature steady state power consumption	W	≤2.5	≤2.5
20	Full temperature steady state power consumption	W	≤4	≤4
21	Start the instantaneous current	A	<1.5	<1.5

4. Production environments

RS-422 Output Mode High Fiber Optic Gyroscope with Zero Bias Stability ≤0.1°/h and Long Service Life 0

RS-422 Output Mode High Fiber Optic Gyroscope with Zero Bias Stability ≤0.1°/h and Long Service Life 2

RS-422 Output Mode High Fiber Optic Gyroscope with Zero Bias Stability ≤0.1°/h and Long Service Life 4
